Place of Origin:
SHANDONG WEIFANG
Brand Name:
HUAYU
Certification:
CE,ISO9001
Model Number:
HY2000L-2Layer

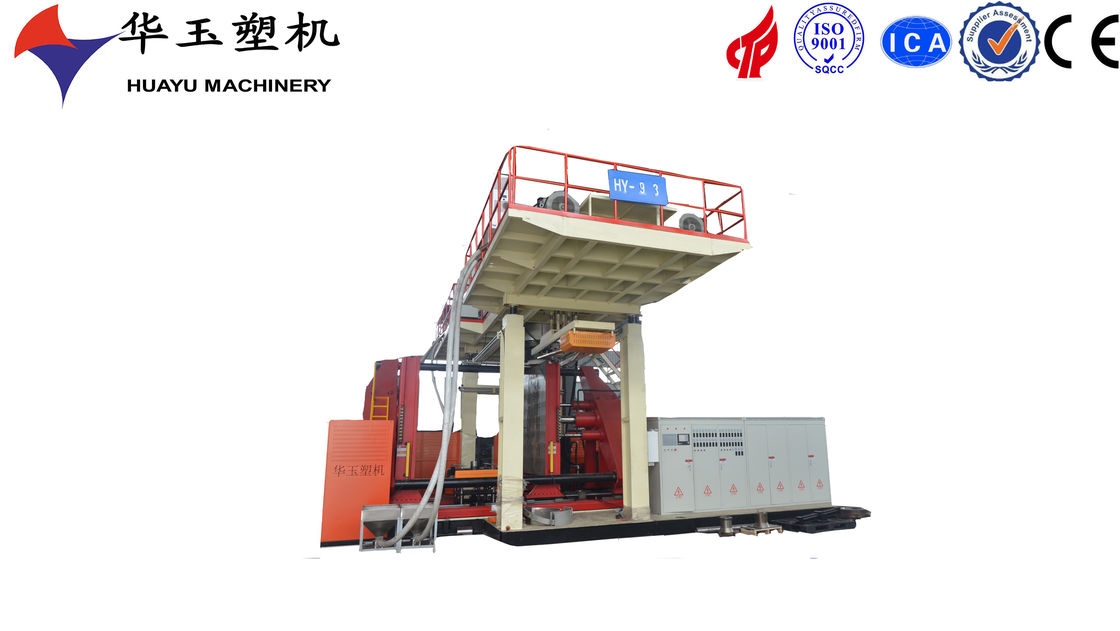

Huayu 2000L2 Two-Layer Water Bucket Blow Molding Machine: High Efficiency & Intelligence for Superior Quality
The Huayu 2000L2 Two-Layer Water Bucket Blow Molding Machine is an advanced equipment designed for high-end water bucket production. Utilizing dual-layer co-extrusion technology, it ensures superior impact resistance, UV protection, and long-term durability. Widely used in food-grade water buckets, chemical containers, and special liquid packaging, it meets the market demand for high-quality plastic barrels.
Key Advantages
1. Dual-Layer Co-Extrusion for Enhanced Performance
Inner and outer layers use different materials (e.g., HDPE + UV protective layer) to improve impact resistance, anti-permeability, and weather resistance.
2. High Efficiency & Energy Saving
Equipped with servo drive and intelligent temperature control, saving 30% energy and increasing productivity by 20%.
3. Intelligent Control for Precision
PLC + HMI full-automatic control ensures uniform wall thickness and minimizes defects.
4. Robust Design & Low Maintenance
Key components made of imported alloy steel ensure wear resistance, long lifespan, and minimal downtime.
5. Eco-Friendly & Compliant
Low noise and energy consumption, compliant with CE & ISO standards, suitable for food-grade packaging.
Applications
Ideal for 500L-2000L two-layer water buckets, chemical barrels, edible oil containers, and specialty liquid packaging, making it the top choice for high-end plastic packaging industries.
Choose Huayu 2000L2 for Unmatched Quality & Efficiency!
| Basic Specification | ||
| applicable material | HDPE |
China·HUAYU |
| capacity range | 200-2000L,2layers | |
| Voltage | Pending | |
| total power | 360kw | |
| average power | 240kw | |
| Machine dimension (L*W*H) | 8.5*6*7.2 | |
| productivity | 10-24pcs/h | |
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | spring loaded | |
| feeding motor | 2.2/2.2kw | |
| Extrusion System | ||
| Screw diameter | 120/120mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 90/90kw | |
| Reducer | 330/330 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4.4kw*10 | |
| Plasticizing capacity | 500kg/h | |
