Heavy Duty Pallet Blow Moulding Equipment for Durable Reusable Plastic Pallets

Heavy Duty Pallet Blow Moulding Equipment for Durable Reusable Plastic Pallets

Reusable Plastic Pallets Blow Moulding Equipment

Heavy Duty Pallet Blow Moulding Equipment

Durable Plastic Pallets Moulding Equipment

Place of Origin:

CHINA

Brand Name:

Huayu

Certification:

CE,TUV,ISO9001,SGS

Model Number:

pallet-2

Contact Us
Request A Quote
Product Details
Capacity:
Pallet
Voltage:
380V Or Customized
Model Number:
PT-2
Parison Control:
MOOG 200point
After-sales Service Provided:
As Customer Need
After Warranty Service:
Life
Layers:
2layers
Highlight:

Reusable Plastic Pallets Blow Moulding Equipment

,

Heavy Duty Pallet Blow Moulding Equipment

,

Durable Plastic Pallets Moulding Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
negotiation
Packaging Details
The machine will be disassembled into many parts for container transportation.
Delivery Time
4months
Payment Terms
L/C, T/T
Supply Ability
40sets/year
RELATED PRODUCTS
Contact Us
86-0536-770-9997
Contact Now
Product Description

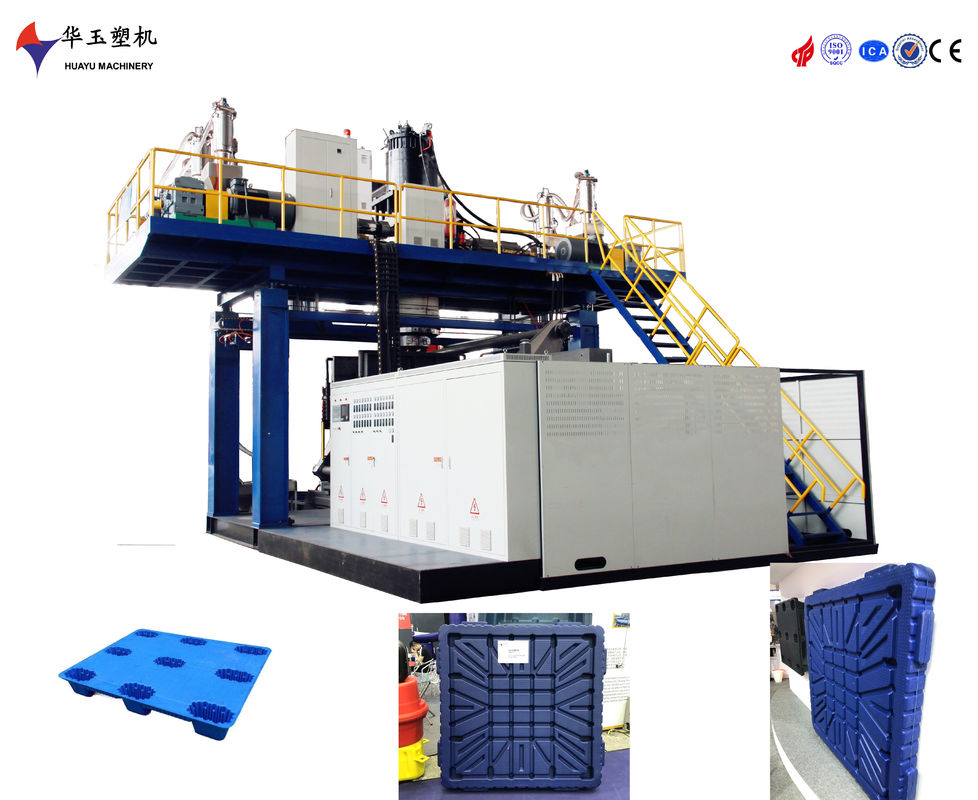

HYBM-Pallet-2layers blow moulding machine

Heavy Duty Pallet Blow Moulding Equipment for Durable Reusable Plastic Pallets 0

1.Machine specification



Capacity rang 1111-1210
Machine dimension 8*5.5*6.8
Average 130KW
Total power 344KW
Accumulator capacity 50KG
E*truder motor 90KW*2
Screw diameter 110MM*2
Screw L/D ratio 30:1
Plasticizing capacity 450KG/H
Platen size 1800*1800MM
Platen distance 900-2400MM
Clamping force 1600KN
Servo motor 48KW



2.Company advantage

Heavy Duty Pallet Blow Moulding Equipment for Durable Reusable Plastic Pallets 1



Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!



In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, Siemens PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.



Fully understand the various request of our customer.Help customer to choose the correct type of blow molding machine and auxiliary equipment.Reasonably plan customers’ water, electricity, gas, oil and other solutions.





Arrange professional and technical engineer to help equipment operators installation and connect water and electricity of the blow molding machines with auxiliary equipment,to enable the equipment a standardized and safe manner to running. We also provide training the machine operators, so that operators can operate the blow molding machine skillfully and master the maintenance of the equipment.



Provide customers with technical guidance and continuous optimization of products for life.



3.FAQ

Q1: what is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
* The product you want to produce

* The maximum and minimum volume of the product
* The layers of machine you want

* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.

Q2: what is the warranty period of your machine?
Answer: The free charge guarantee term is 12 months after the installation and adjustment in your factory.


Q3: what if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.

Q4: what is the delivery time of your machine?
Answer: Normally it would take about 90-120 days to complete the machine.The specific time needs to be based on your machine.



Q5: can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed technical configuration of the machine to you for confirmation. Only after you confirming the technical configuration then we will start the manufacturing process.

Q6: what’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Alibaba .

Q7: how can we install the machine?
Answer: you provides the invitation letter for visa applying once the machine to be shipment. We’ll dispatches one engineer and one English interpreter to your factory once the machine arrive your factory or as the your request.

Installation is free for 15 days. If you need more time, the service will be charged. Besides, you should provide the round tickets, room and board etc.



4. Customer feedback

Heavy Duty Pallet Blow Moulding Equipment for Durable Reusable Plastic Pallets 2Heavy Duty Pallet Blow Moulding Equipment for Durable Reusable Plastic Pallets 3Heavy Duty Pallet Blow Moulding Equipment for Durable Reusable Plastic Pallets 4
