Place of Origin:
SHANDONG WEIFANG
Brand Name:
HUAYU
Certification:
CE,ISO9001
Model Number:
HYBM1002

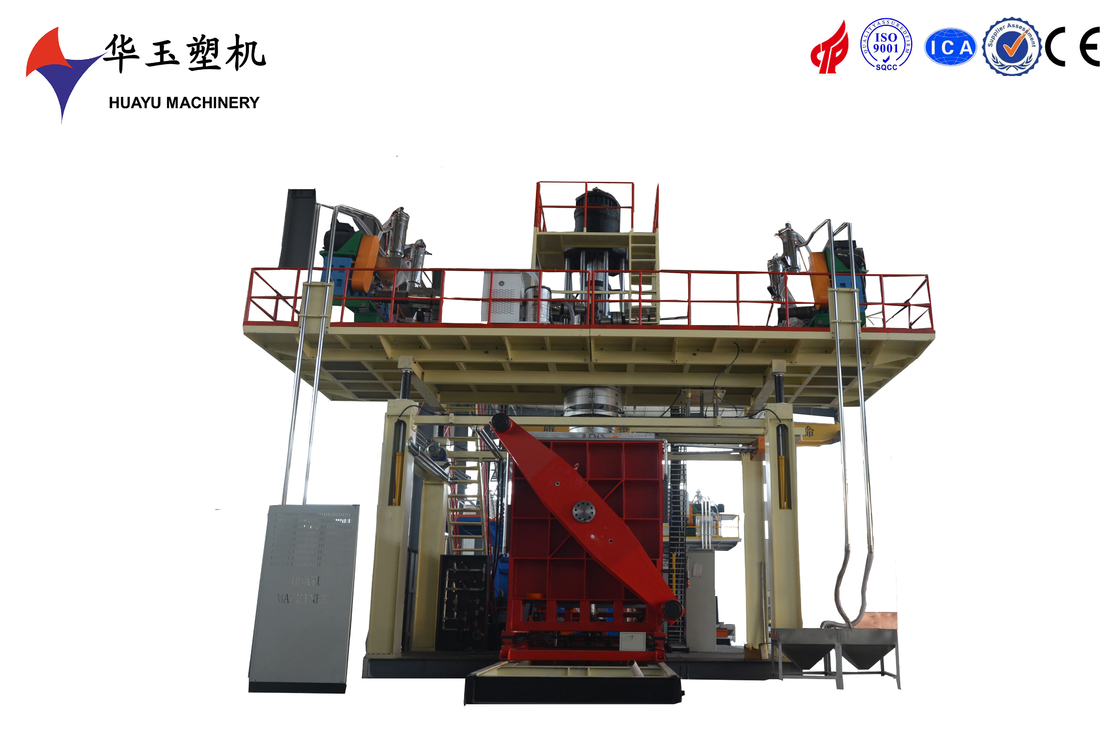

The HUAYU1000L-2 Blow Moulding Machine provides a high-performance solution for manufacturing large plastic containers. It features advanced automation and energy-efficient technology, ensuring high precision and consistent product quality, with a robust construction guaranteeing long-term reliability.
| equipment parts |
main parameter |
brand | |
| clamping system | clamping structure | two pull rods, center directly pushing |
huayu |
| clamping force | 1800KN | ||
| platen size |
1700*1800*80mm (W*H*T) |
||
| max. mould size |
1400*1600mm (W*H) |
||
| distance between platens | 1100-2500mm | ||
| pull rod size | φ194mm | ||
| clamping cylinder |
1400mm×2,300mm×1 (φ*H) |
||
| linear guide | 65mm |
hiwin |
|
| linear guide length | 1600mm× 6 pieces | ||
| stroke control | displacement sensor | omron | |
| explanation | smooth running, no noise; the clamping force is big | ||
|
blowing unit |
sealing width | according to products | huayu |
| stretching stroke | according to products | ||
| blow pin up/down stroke | 300mm | ||
| air seat stroke | 400mm | ||
| maximum air pressure | 0.8Mpa | ||
| air consumption | 1.5m3/min | ||
| explanation | with pre-blowing function, air blowing pin independent design which relize convenient replacement and multiply usage | ||
