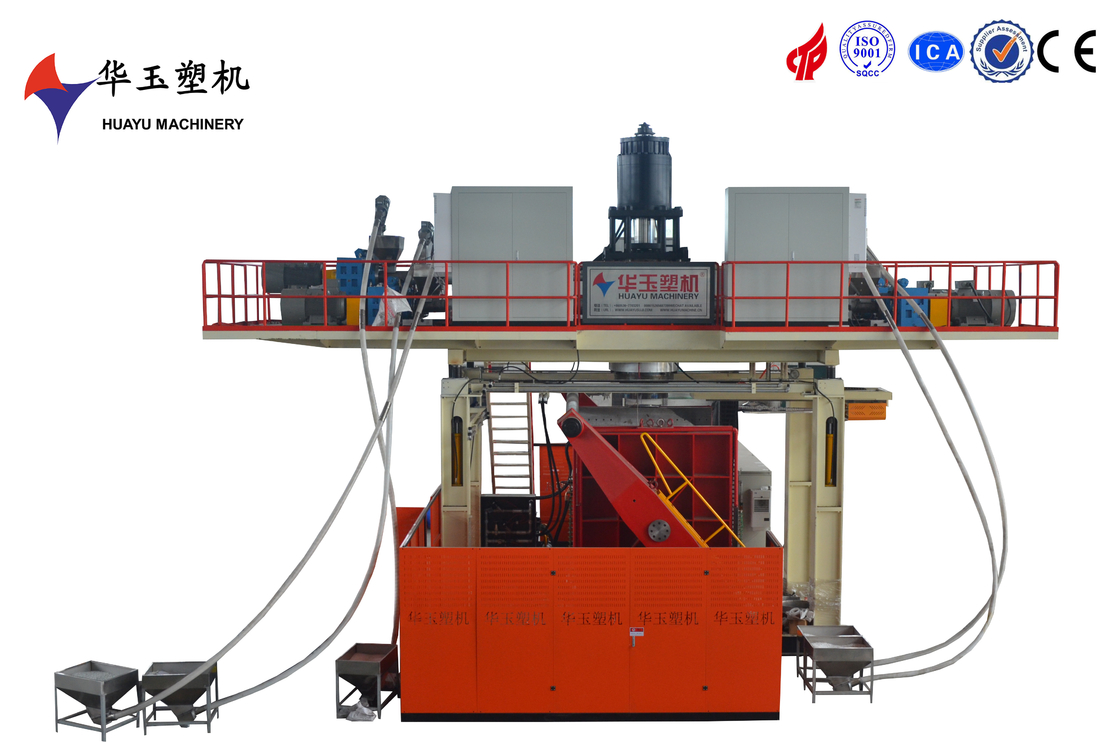

Name: 1000L 4-Layer Blow Moulding Machine with FLENDER Reducer 386kw
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-1004
Price: 197,605.00 USD
Availability: InStock

Home > products > 200-1000l Water Tank Blow Moulding Machine >

1000L 4-Layer Blow Moulding Machine with FLENDER Reducer 386kw

1000L blow moulding machine with FLENDER reducer

4-layer blow moulding machine 386kw

200-1000L water tank blow moulding machine

Place of Origin:

SHANDONG WEIFANG

Brand Name:

HUAYU

Certification:

CE,ISO9001

Model Number:

HYBM-1004

Request A Quote

1000L 4-Layer Blow Moulding Machine with FLENDER Reducer 386kw

Product Details

Total Power:

386kw

Productivity:

16-25PCS/H

Screw Diameter:

90mm*4

Screw L/D Ratio:

28:1

Extruder Motor:

45kw*4

Screw Heating Power:

4.4kw*16

Highlight:

1000L blow moulding machine with FLENDER reducer

4-layer blow moulding machine 386kw

200-1000L water tank blow moulding machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Negotiate

Packaging Details

The machine will be disassembled into many parts for container transportation.

Delivery Time

5 months

Payment Terms

L/C, T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-0536-770-9997

Contact Now

Product Description

1000L 4 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 200~1000L. Otherwise can be designed for producing non-standard products according to customer's request.
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12''
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller's machine should be passed the ISO9001, CE certifi

Basic Specification
applicable material	HDPE	China·HUAYU
capacity range	200-1000L,4layers
Voltage	Pending
total power	386kw
average power	230kw
Machine dimension (LWH)	896.5
productivity	16-25pcs/h
Auto Feeder
hopper material	stainless steel	Stable performance, easy maintenance
feeding type	Vacuum feeding
feeding motor	5.5KW
Extrusion System
Screw diameter	90/90/90/90mm	Nitrided 38CrMoAIA
Screw L/D ratio	28:1	special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor	45/45/45/45kw
Reducer	250/250/250/250	Best quality brand in china ,long life and low noise
Screw heating power	4.4kw*16
Plasticizing capacity	400kg/h
die head
Accumulator capacity	35kg	designed by ourselves and get the patent
Die diameter	According to products
Die head heating power	90kw
Clamping System
platen size	1500160060mm(WHT)	smooth running, no noise; the clamping force is big
clamping cylinder	250	smooth running, no noise; the clamping force is big
clamping cylinder stroke	1500mm
clamping force	800KN
distance between platens	900-2400mm
max. mould size	12001500mm(WH)
blowing and cooling system
stretching stroke	according to products
blow pin up/down stroke	600mm
air seat stroke	400mm
maximum air pressure	0.8Mpa
air consumption	1.5m3/min
Cooling method	Circulating water
Water pressure	0.3MPa
Cooling water consumption	50m3/h
Hydraulic system
main oil tank capacity	890L	Servo motor, less energy consumption, high efficiency, low noise
main oil pump	gear pump125CC
main oil pump motor	37kw
Servo oil tank capacity	200L
Servo oil pump model	Plunger pump22
Servo oil pump motor	7.5kw
*Electronic system*
Main operation panel	Touch screen 9"
Control system	PLC
hickness control points	100 points
Temperature control	PLC module
main frame
Up/down stroke	400mm
Up/down motor	2.2kw
Main parts brand
motor	Siemens	Germany
Inverter	Siemens	Germany
Touch screen	Siemens	Germany
PLC	Siemens	Germany
Thickness controller	MOOG	Japan
oil pump/valve	YUKEN	Japan
gear box	Guomao	China
Low-voltage apparatus	Schneider/Fuji/Omron
Displacement pickup	Jefran	Italy
Hydraulic oil seal	DZ	Taiwan
