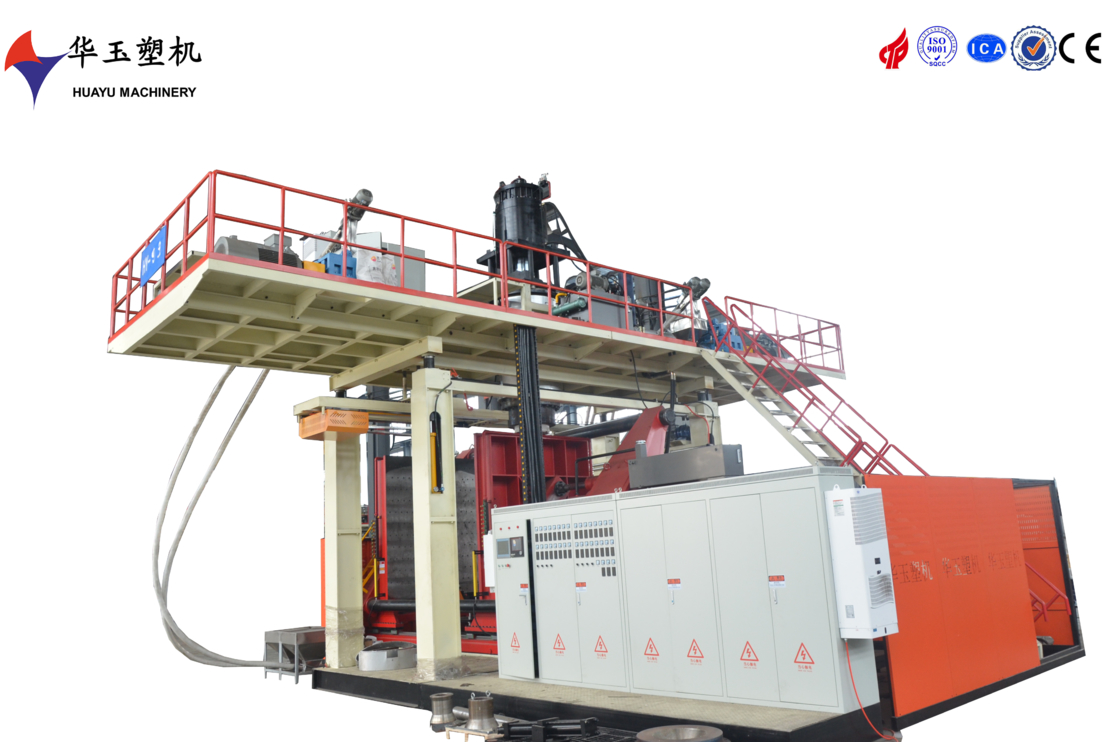

Name: 1000L 6-Layer Blow Molding Machine with MOOG Technology
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-1006
Price: 197,605.00 USD
Availability: InStock

Home > products > 200-1000l Water Tank Blow Moulding Machine >

1000L 6-Layer Blow Molding Machine with MOOG Technology

1000L blow molding machine with MOOG

6-layer blow molding machine for water tanks

industrial blow moulding machine with warranty

Place of Origin:

SHANDONG WEIFANG

Brand Name:

HUAYU

Certification:

CE,ISO9001

Model Number:

HYBM-1006

Request A Quote

1000L 6-Layer Blow Molding Machine with MOOG Technology

Product Details

Voltage:

Pending

Total Power:

470kw

Productivity:

16-25PCS/H

Screw Diameter:

80mm*6

Screw L/D Ratio:

28:1

Clamping Cylinder:

250

Highlight:

1000L blow molding machine with MOOG

6-layer blow molding machine for water tanks

industrial blow moulding machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Negotiate

Packaging Details

The machine will be disassembled into many parts for container transportation.

Delivery Time

5 months

Payment Terms

L/C, T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-0536-770-9997

Contact Now

Product Description

Installation cost:Installation is free for 15 days. If the buyer need more time, the service will be charged. Besides, the buyer should provide the round tickets, room and board etc.

Technical support during the warranty period

During the warranty period:

The seller will provide the technical support and supply the needed parts with the cost price if there is any problem does not influence the regular production. If needed, the seller will dispatch engineer and translator to the buyer’s factory to deal with the problem. During the service period, the buyers need to pay for the travel expenses, tickets, accommodation fee and the other charges except the labor charges. If the problem has influenced the regular production, the seller must provide the solution without charge immediately.

Extrusion System
Screw diameter	80/80/80/80/80/80mm	Nitrided 38CrMoAIA
Screw L/D ratio	28:1	special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor	37/37/37/37/37/37kw
Reducer	225/225/225/225/225/225	Best quality brand in china ,long life and low noise
Screw heating power	4.4kw*24
Plasticizing capacity	480kg/h
die head
Accumulator capacity	35kg	designed by ourselves and get the patent
Die diameter	According to products
Die head heating power	100kw
Clamping System
platen size	1500160060mm(WHT)	smooth running, no noise; the clamping force is big
clamping cylinder	250	smooth running, no noise; the clamping force is big
clamping cylinder stroke	1500mm
clamping force	800KN
distance between platens	900-2400mm
max. mould size	12001500mm(WH)

1000L 6-Layer Blow Molding Machine with MOOG Technology 0
