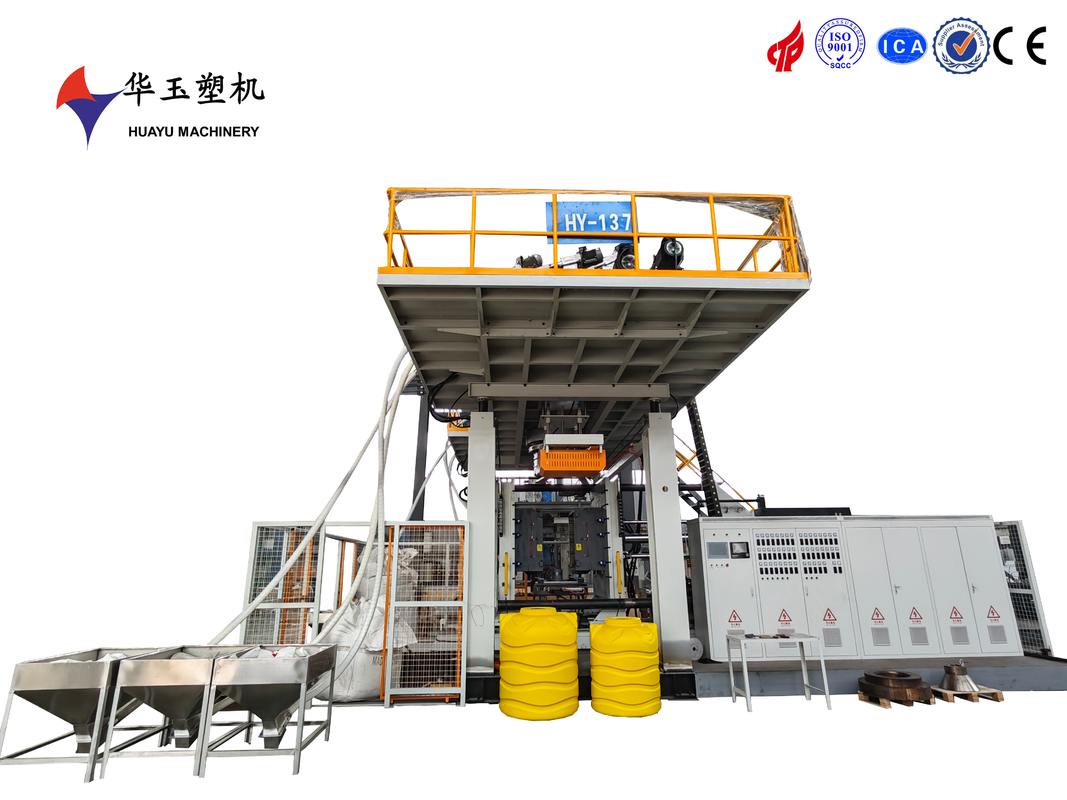

Name: 1000L 7 Layer Blow Moulding Machine with Nano Heater Ring
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-1007
Price: 197,605.00 USD
Availability: InStock

Home > products > 200-1000l Water Tank Blow Moulding Machine >

1000L 7 Layer Blow Moulding Machine with Nano Heater Ring

1000L blow moulding machine with nano heater

7 layer blow moulding machine for water tanks

large capacity blow moulding machine with warranty

Place of Origin:

SHANDONG WEIFANG

Brand Name:

HUAYU

Certification:

CE,ISO9001

Model Number:

HYBM-1007

Request A Quote

1000L 7 Layer Blow Moulding Machine with Nano Heater Ring

Product Details

Capacity Range:

200-1000L,7layers

Voltage:

Pending

Total Power:

585kw

Average Power:

385kw

Machine Dimension (L*W*H):

8*9*6.5

Productivity:

16-25pcs/h

Highlight:

1000L blow moulding machine with nano heater

7 layer blow moulding machine for water tanks

large capacity blow moulding machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Negotiate

Packaging Details

The machine will be disassembled into many parts for container transportation.

Delivery Time

5 months

Payment Terms

L/C, T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-0536-770-9997

Contact Now

Product Description

1000L 7 Layers Blow Moulding Machine With Nano Heater Ring

The Hua Yu 1000L 7-layer blow molding machine boasts remarkable performance and numerous advantages.

It features a seven-layer co-extrusion structure,which enhances product functionality and durability.

The machine is equipped with advanced components such as German FLENDER reducers,Siemens PLC controllers,and American Moog wall thickness controllers,ensuring high precision and stability.

Basic Specification
applicable material	HDPE	China·HUAYU
capacity range	200-1000L,7layers
voltage	Pending
total power	585kw
average power	385kw
Machine dimension (LWH)	896.5
productivity	16-25pcs/h
Auto Feeder
hopper material	stainless steel	Stable performance, easy maintenance
feeding type	vacuum loaded
feeding motor	11kw
Extrusion System
Screw diameter	90mm*7	Nitrided 38CrMoAIA
Screw L/D ratio	28:1	special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor	45kw*7
Reducer	250*7	Best quality brand in china ,long life and low noise
Screw heating power	4.4kw*28
Plasticizing capacity	560kg/h

1000L 7 Layer Blow Moulding Machine with Nano Heater Ring 0
