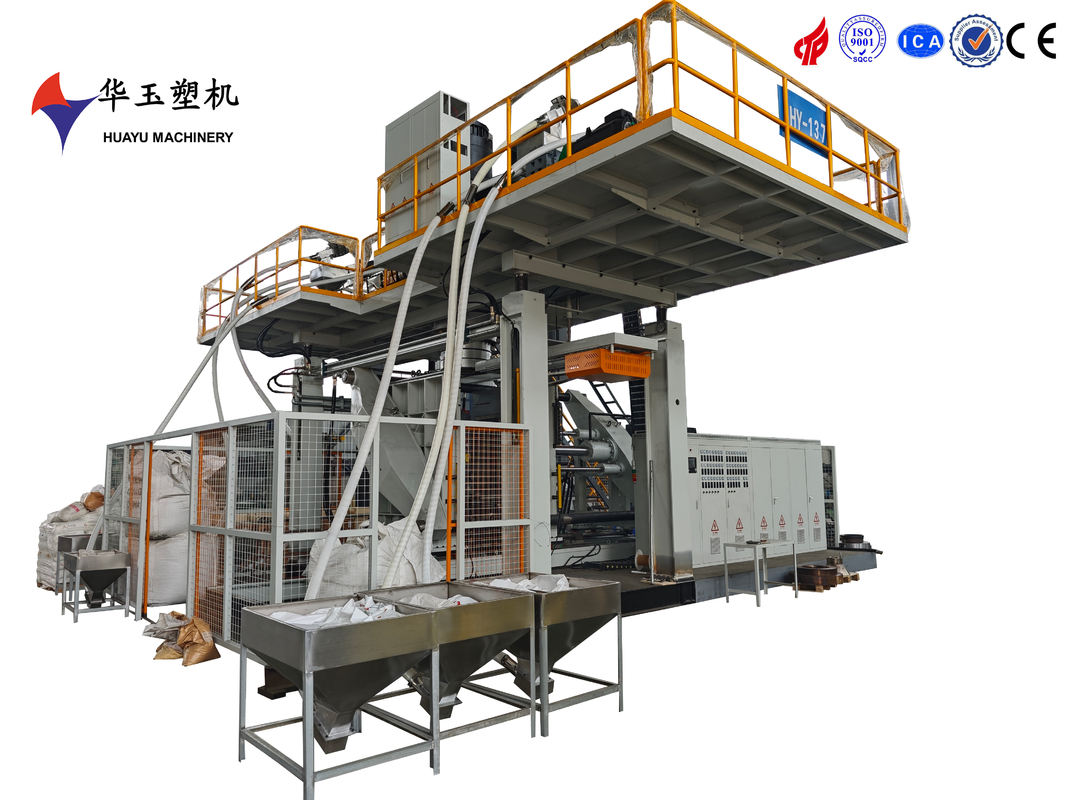

Name: 1000L 8-Layer Blow Moulding Machine with Induction Heater
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-1008
Price: 197,605.00 USD
Availability: InStock

Home > products > 200-1000l Water Tank Blow Moulding Machine >

1000L 8-Layer Blow Moulding Machine with Induction Heater

1000L blow moulding machine with induction heater

8-layer blow moulding machine for water tanks

large capacity blow moulding machine with warranty

Place of Origin:

SHANDONG WEIFANG

Brand Name:

HUAYU

Certification:

CE,ISO9001

Model Number:

HYBM-1008

Request A Quote

1000L 8-Layer Blow Moulding Machine with Induction Heater

Product Details

Capacity Range:

200-1000L

Machine Dimension:

10*9*6.2

Average Consumption:

320kw

Total Power:

580kw

Accumulator Capacity:

35kg

Extruder Motor:

37kw*8

Highlight:

1000L blow moulding machine with induction heater

8-layer blow moulding machine for water tanks

large capacity blow moulding machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Negotiate

Packaging Details

The machine will be disassembled into many parts for container transportation.

Delivery Time

5 months

Payment Terms

L/C, T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-0536-770-9997

Contact Now

Product Description

The Huayu 1000 L 8 layers is a cutting-edge industrial-grade solution designed to deliver exceptional performance, durability, and versatility for demanding applications across multiple sectors. Engineered with precision, this product integrates advanced materials and innovative technology to ensure optimal efficiency and long-term reliability in harsh operating environments.

Constructed from high-strength, corrosion-resistant alloys, the Huayu 1000 L 8 layers excels in settings exposed to extreme temperatures, heavy loads, or corrosive substances. Its modular design allows for seamless customization, enabling users to adapt the system to specific operational requirements, whether in manufacturing, energy production, or infrastructure projects. The tier features a multi-layered protective coating, enhancing its resistance to wear and tear while minimizing maintenance.

Clamping System
platen size	1500160060mm(WHT)	smooth running, no noise; the clamping force is big
clamping cylinder	250
clamping cylinder stroke	1500mm
clamping force	600KN
distance between platens	900-2400mm
max. mould size	12001500mm(WH)
blowing and cooling system
stretching stroke	according to products
blow pin up/down stroke	600mm
air seat stroke	400mm
maximum air pressure	0.8Mpa
air consumption	1.5m3/min
Cooling method	Circulating water
Water pressure	0.3MPa
Cooling water consumption	3m³/h
Hydraulic system
main oil tank capacity	890L	Servo motor, less energy consumption, high efficiency, low noise
main oil pump	gear pump125CC
main oil pump motor	37kw
Servo oil tank capacity	200L
Servo oil pump model	Plunger pump22
Servo oil pump motor	7.5kw

1000L 8-Layer Blow Moulding Machine with Induction Heater 0
