Place of Origin:
SHANDONG WEIFANG
Brand Name:
HUAYU
Certification:
CE,ISO9001
Model Number:
HY2000L-3Layer

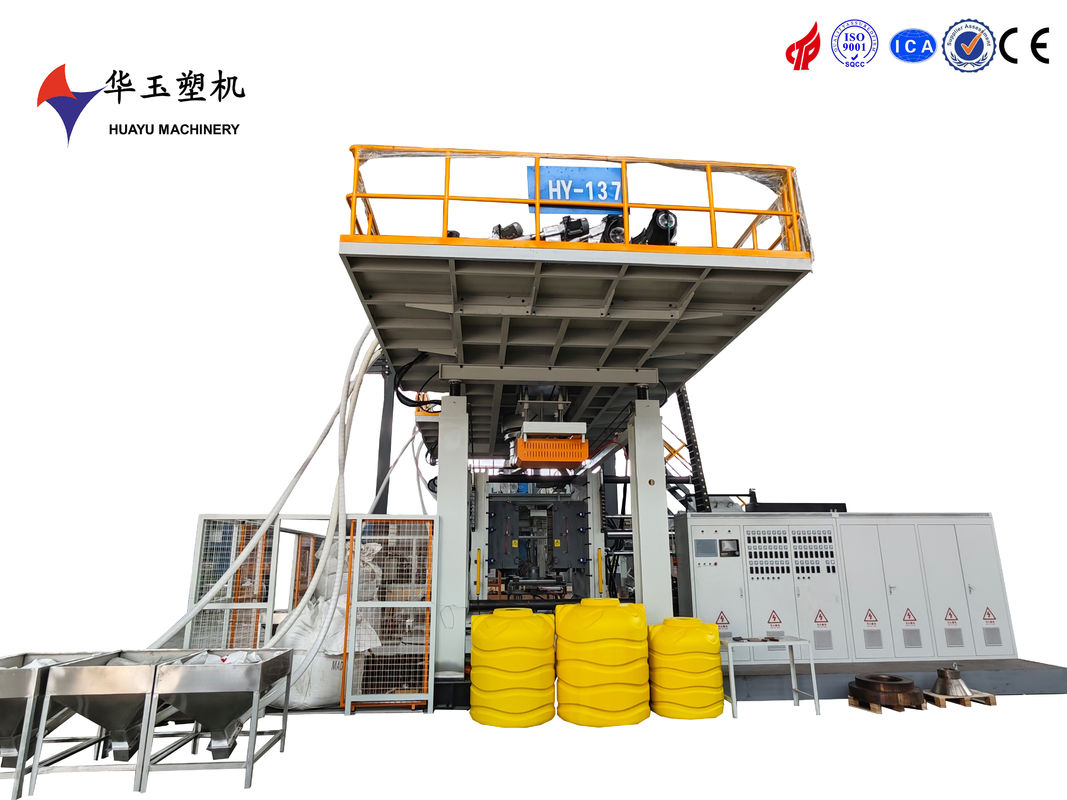

Huayu 2000L3 Three-Layer Water Bucket Blow Molding Machine: Innovative Technology Setting New Industry Standards
Product Overview
The Huayu 2000L3 Three-Layer Water Bucket Blow Molding Machine represents the pinnacle of current blow molding technology. Utilizing advanced three-layer co-extrusion, it produces high-quality buckets with exceptional barrier properties, superior durability and perfect appearance. This equipment is particularly suitable for food-grade, pharmaceutical-grade and special chemical packaging applications, meeting the most stringent industry standards.
Key Advantages
1. Revolutionary Three-Layer Design
Food-grade HDPE for inner/outer layers with EVOH high-barrier material as middle layer, effectively blocking oxygen and odor penetration
2. Intelligent Precision Control System
Equipped with Siemens PLC and 10-inch color touch screen for fully automatic precision control
3. Energy-Efficient High-Speed Production
Yaskawa servo system saves over 40% energy with daily output up to 600 standard buckets
4.Exceptional Durability
Key components made of special steel imported from Sweden, extending service life by over 50%
5. Environmental & Safety Certifications
Compliant with FDA, CE and ISO9001 certifications, meeting the most stringent global food safety requirements
| die head | ||
| Accumulator capacity | 60kg | designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 90kw | |
| Clamping System | ||
| platen size | 1900*2000*60mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 140*2+300*1 | |
| clamping cylinder stroke | 2000mm | |
| clamping force | 1800KN | |
| distance between platens | 1000-3000mm | |
| max. mould size | 1600*2000mm(W*H) | |
| blowing and cooling system | ||
| stretching stroke | according to products | |
| blow pin up/down stroke | 300mm | |
| air seat stroke | 400mm | |
| maximum air pressure | 0.8Mpa | |
| air consumption | 1.5m3/min | |
| Cooling method | Circulating water | |
| Water pressure | 0.3MPa | |
| Cooling water consumption | 60m3/h | |
