Place of Origin:
SHANDONG WEIFANG
Brand Name:
HUAYU
Certification:
CE,ISO9001
Model Number:
HY2000L-4Layer

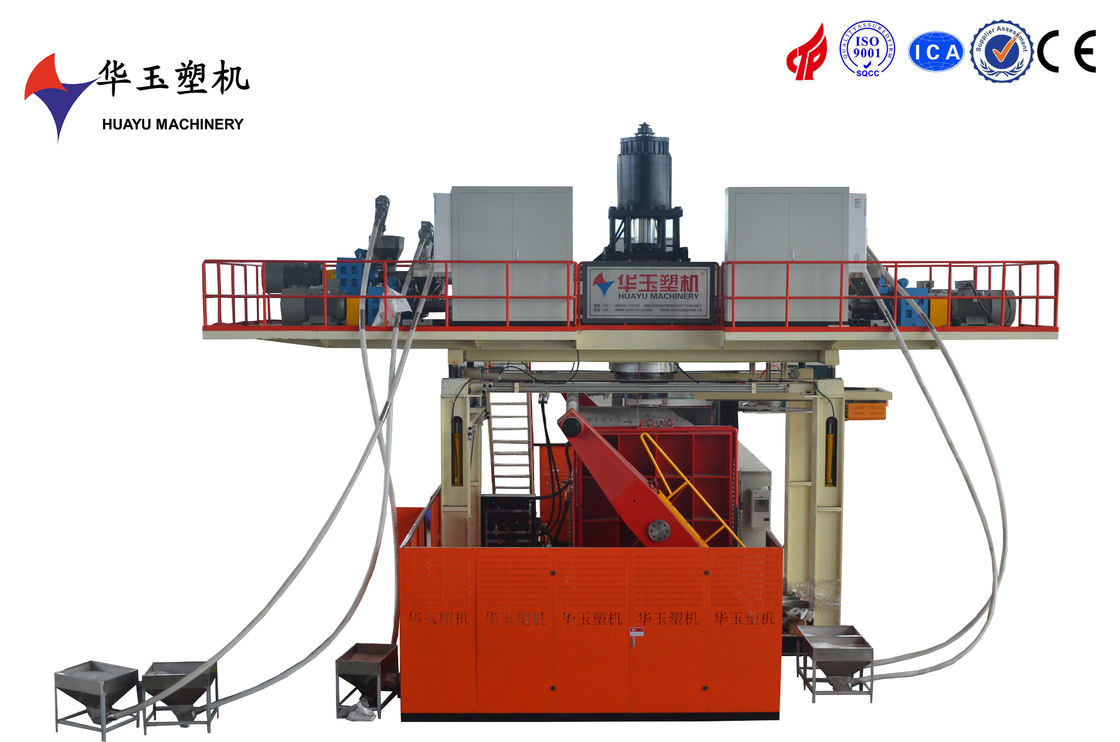

HuaYu 2000L 4-Layer Water Barrel Blow Molding Machine: Innovative Technology, Leading the Industry Future
Outstanding Advantages
1. Multi-Layer Co-Extrusion Technology
With advanced 4-layer co-extrusion (PE/barrier layer/recycled material/PE), it significantly enhances anti-permeability, UV resistance, and mechanical strength for long-term durability.
2. Energy Efficiency
Equipped with intelligent servo drive system, reducing energy consumption by 30% and increasing output by 20%, with daily capacity exceeding 500×2000L barrels.
3. Full Automation
Integrated PLC+touchscreen control enables one-touch operation and real-time monitoring, minimizing manual intervention with <0.5% failure rate.
| Basic Specification | ||
| applicable material | HDPE |
China·HUAYU |
| capacity range | 300-2000L,4layers | |
| Voltage | Pending | |
| total power | 443kw | |
| average power | 280kw | |
| Machine dimension (L*W*H) | 8.5*9.5*7 | |
| productivity | 10-24pcs/h | |
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | spring loaded | |
| feeding motor | 2.2/2.2/2.2/2.2kw | |
| Extrusion System | ||
| Screw diameter | 100/100/100/100mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 55/55/55/55kw | |
| Reducer | 280/280/280/280 | Best quality brand in china ,long life and low noise |
| Screw heating power | 5kw*20 | |
| Plasticizing capacity | 600kg/h | |
