Place of Origin:
SHANDONG WEIFANG
Brand Name:
HUAYU
Certification:
CE,ISO9001
Model Number:
HY2000L-5Layer

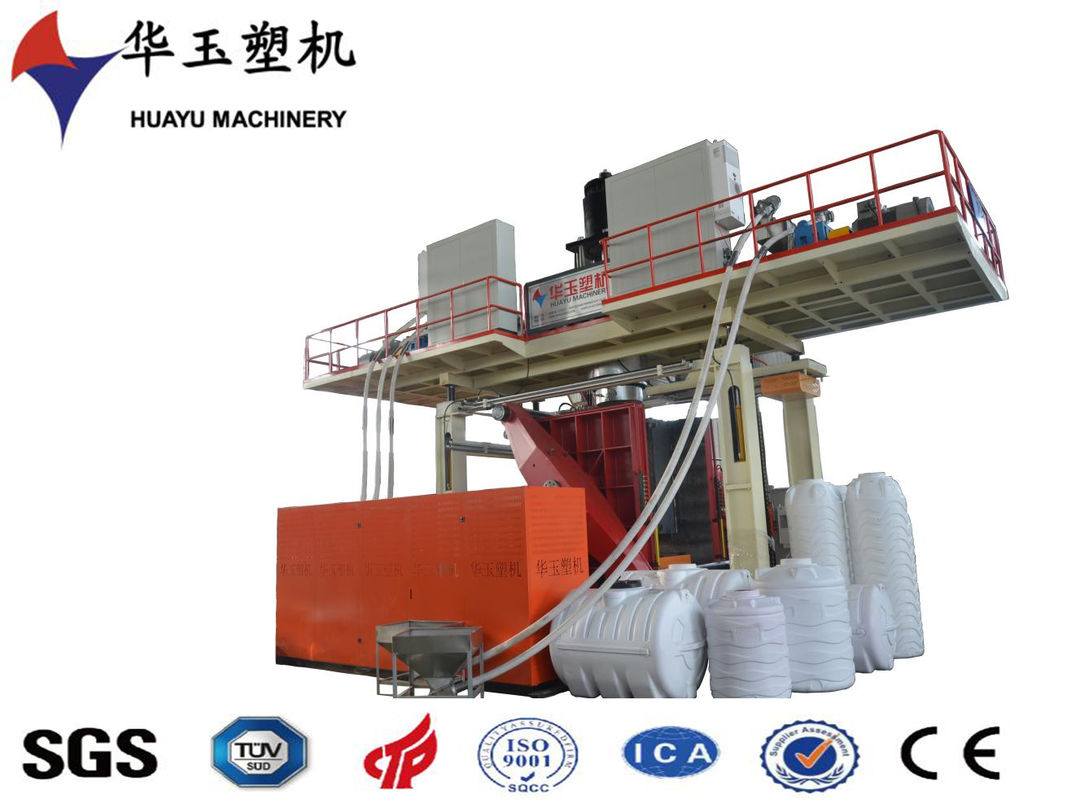

HuaYu 2000L 5-Layer Water Barrel Blow Molding Machine: Breakthrough Technology, Redefining Industry Standards
Core Advantages
1. 5-Layer Co-Extrusion for Superior Protection
HuaYu’s 5-layer structure (PE/adhesive/EVOH barrier/recycled material/PE) enhances oxygen barrier by 300%, preventing leakage, UV damage, and chemical corrosion for long-term storage safety.
2. Intelligent & Energy-Saving Efficiency
With AI temperature control and servo drive technology, it reduces energy consumption by 35%, boosts speed by 25%, and achieves a daily output of 600+ barrels (2000L), leading the industry in efficiency.
3. Fully Automated Operation
Equipped with industrial PLC + 10-inch HMI, it enables remote monitoring, data analysis, auto-alignment, and mold change in minutes, cutting manual labor by 50%.
| blowing and cooling system | ||
| stretching stroke | according to products | |
| blow pin up/down stroke | 600mm | |
| air seat stroke | 400mm | |
| maximum air pressure | 0.8Mpa | |
| air consumption | 2.3m3/min | |
| Cooling method | Circulating water | |
| Water pressure | 0.3MPa | |
| Cooling water consumption | 60m3/h | |
| Hydraulic system | ||
| main oil tank capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| main oil pump | gear pump160CC | |
| main oil pump motor | 45kw | |
| Servo oil tank capacity | 200L | |
| Servo oil pump model | Plunger pump22 | |
| Servo oil pump motor | 7.5kw | |
| Electronic system | ||
| Main operation panel | Touch screen 12" | |
| Control system | PLC | |
| Thickness control points | 200 points | |
| Temperature control | PLC module | |
