Place of Origin:
SHANDONG WEIFANG
Brand Name:
HUAYU
Certification:
CE,ISO9001
Model Number:
HY2000L-6Layer

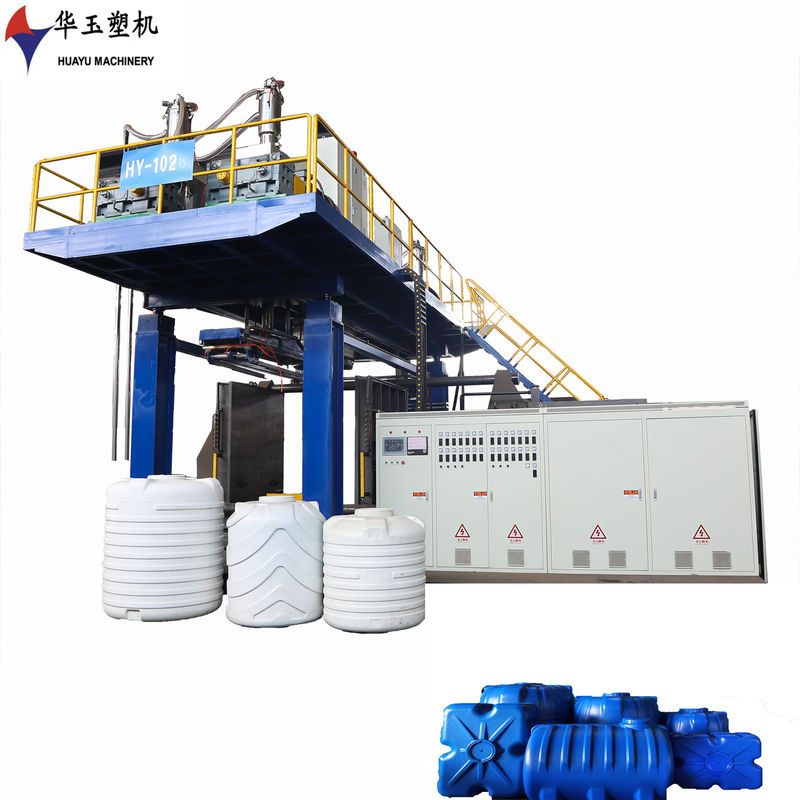

HuaYu 2000L 6-Layer Water Barrel Blow Molding Machine: Redefining Industry Standards, Leading the New Era of Intelligent Manufacturing
Six Core Advantages
1. 6-Layer Co-Extrusion for Ultimate Protection
Featuring PE/adhesive/EVOH barrier/recycled material/reinforcement layer/PE structure, oxygen barrier improves by 400% with enhanced anti-permeability, impact resistance, and weather resistance.
2. Intelligent Energy-Saving System
Equipped with AI temperature control and servo energy-saving drive, reduces energy consumption by 40% and increases productivity by 30%, with daily output reaching 600 barrels (2000L).
3.Fully Automated Intelligent Control
Industrial-grade PLC + 12-inch touchscreen supports IoT remote monitoring and smart diagnostics for unmanned production.
| Extrusion System | ||
| Screw diameter | 90/90/90/90/90/90mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 45/45/45/45/45/45kw | |
| Reducer | 250/250/250/250/250/250 | Best quality brand in china ,long life and low noise |
| Screw heating power | 4kw*24 | |
| Plasticizing capacity | 600kg/h | |
| die head | ||
| Accumulator capacity | 65kg | designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 120kw | |
