Place of Origin:
SHANDONG WEIFANG
Brand Name:
HUAYU
Certification:
CE,ISO9001
Model Number:
HY2000L-8Layer

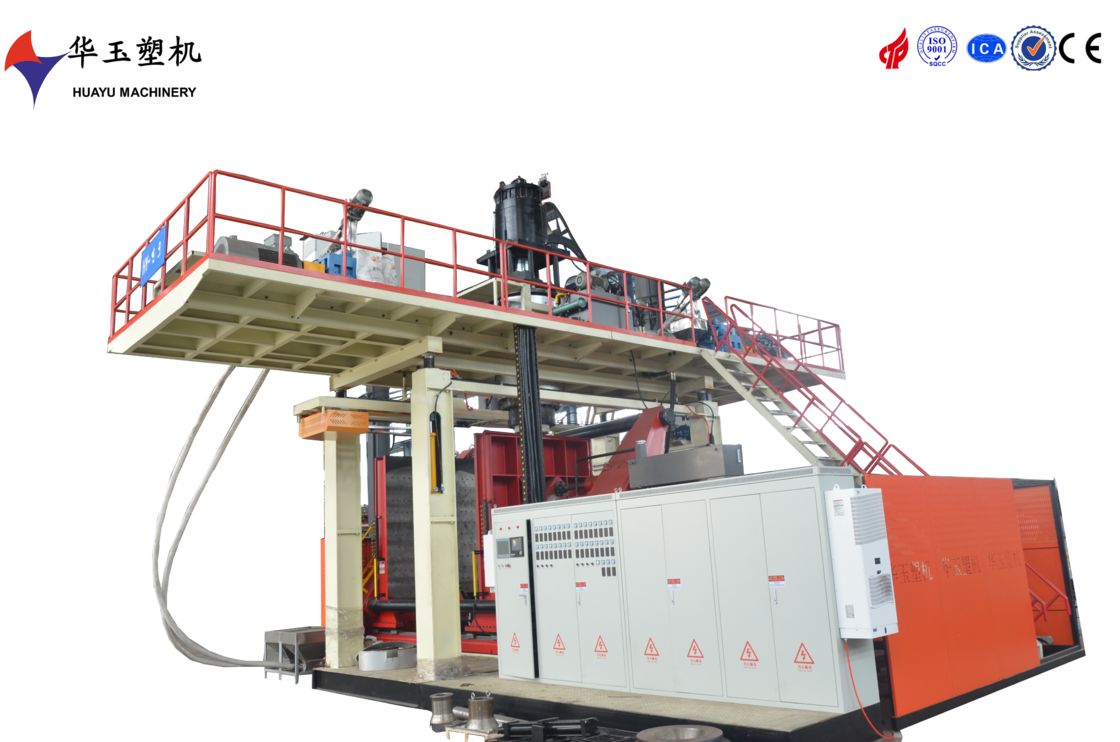

HuaYu 2000L 8-Layer Kayak Blow Molding Machine: Redefining New Standards in Water Sports Equipment Manufacturing
Groundbreaking 8-Layer Co-Extrusion Technology
Featuring PE/adhesive/nano-barrier/recycled/carbon-fiber-reinforcement/damping/wear-resistant/PE composite structure, improving impact resistance by 65% and buoyancy by 40%, achieving the perfect balance between ultra-lightweight and military-grade strength.
Industry-Leading Advantages
1. Aerospace-Grade Structural Integrity
Patented carbon fiber reinforcement withstands 5-ton impact, certified to ISO 6185 and CE highest safety standards.
2.Intelligent Precision Temperature Control
64-zone AI dynamic temperature control maintains ±0.5℃ precision for flawless molding of extra-long 8m kayak hulls.
3. Eco-Conscious Intelligent Manufacturing
Compatible with 70% recycled materials, reduces energy consumption by 50%, with daily output of 40 competition-grade kayaks.
| die head | ||
| Accumulator capacity | 60kg | designed by ourselves and get the patent. |
| Die diameter | According to products | |
| Die head heating power | 120kw | |
| Clamping System | ||
| platen size | 1800*2100*60mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 300+140*2 | |
| clamping cylinder stroke | 2000mm | |
| clamping force | 1800KN | |
| distance between platens | 1000-3000mm | |
| max. mould size | 1600*2000mm(W*H) | |
| blowing and cooling system | ||
| stretching stroke | according to products | |
| blow pin up/down stroke | 600mm | |
| air seat stroke | 400mm | |
| maximum air pressure | 0.8Mpa | |
