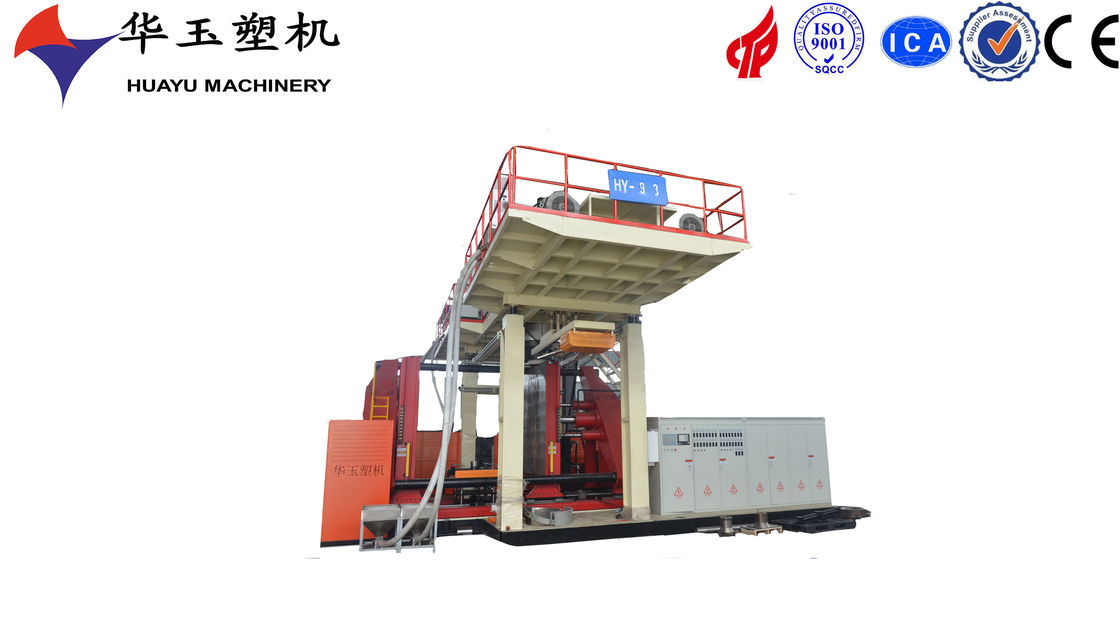

Huayu 3000L Double-Layer Blow Molding Machine with MOOG Parison Control and Vacuum Loaded for High-Performance Customized Containers

Huayu 3000L Double-Layer Blow Molding Machine with MOOG Parison Control and Vacuum Loaded for High-Performance Customized Containers

3000L Capacity Blow Moulding Machine

Vacuum Loaded IBC Blow Moulding Machine

MOOG Parison Control Blow Moulding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-3002

Chat Now
Request A Quote
Huayu 3000L Double-Layer Blow Molding Machine with MOOG Parison Control and Vacuum Loaded for High-Performance Customized Containers Huayu 3000L Double-Layer Blow Molding Machine with MOOG Parison Control and Vacuum Loaded for High-Performance Customized Containers
Product Details
Application:
Water Tank Blow Moulding Machine
Screw Dia:
150MM
Applicable Material:
HDPE
Color:
Customied
Air Consumption:
1.5m3/min
Platen Size:
2100*2500*70mm (W*H*T)
Screw Diameter:
120mm
Automatic:
Yes
Controlsystem:
PLC With Touch Screen
Air Seat Stroke:
400mm
Average Aonsumption:
280KW
Machinetype:
Blow Moulding
Applicable Material:
HDPE
Layer:
2 Layers
Feeding Type:
Vacuum Loaded
Highlight:

3000L Capacity Blow Moulding Machine

,

Vacuum Loaded IBC Blow Moulding Machine

,

MOOG Parison Control Blow Moulding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by sea
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description
Huayu 3000L Double-Layer Blow Molding Machine
High-Performance Customized Container Solution

As market demands for container lightweighting, strength, and cost control increase, single-layer structures struggle to meet diverse needs. The Huayu 3000L double-layer blow molding machine utilizes innovative dual-layer co-extrusion technology to create "rigidity and toughness balanced, cost-optimized" solutions for customers, achieving a leap in product value.

Technical Breakthroughs
  • Dual-Layer Structure Design: Supports composite molding with different raw materials for inner and outer layers (e.g., outer layer virgin HDPE + inner layer recycled material). This significantly reduces raw material costs while ensuring surface quality and weatherability.
  • Precision Extrusion System: Equipped with a twin-screw synchronized extrusion mechanism (700 kg/h plasticizing capacity) with optimized 28:1 screw L/D ratio, ensuring full integration of melt streams and preventing delamination.
  • Adaptive Intelligent Control: Siemens PLC + MOOG parison wall thickness control system dynamically adjusts layer thickness ratios, enhancing mechanical strength in critical areas by over 20%.
Typical Applications
  • Specialty Packaging: Double-layer chemical drums (inner layer corrosion-resistant, outer layer impact-resistant)
  • Storage & Transportation Equipment: Medium-sized storage tanks with barrier properties, customized logistics containers
Technical Specifications
Applicable Material HDPE
Capacity Range 100-3000L, 2 layers
Total Power 530kW
Average Power 280kW
Productivity 8-20pcs/h
Feeding Type Vacuum loaded
Feeding Motor 11kW
Huayu 3000L Double-Layer Blow Molding Machine with MOOG Parison Control and Vacuum Loaded for High-Performance Customized Containers 0

The Huayu 3000L double-layer blow molding machine, with its philosophy of "single-layer cost, double-layer value," redefines the performance boundaries of medium-sized containers and is your solution for high-end market applications.
