Huayu 1000L IBC Blow Moulding Machine with 800KN Clamping Force, 470kw Total Power, and 35KG Accumulator Capacity

Huayu 1000L IBC Blow Moulding Machine with 800KN Clamping Force, 470kw Total Power, and 35KG Accumulator Capacity

800KN Clamping Force IBC Blow Moulding Machine

470kw Total Power Blow Molding Machine

35KG Accumulator Capacity Ten-Layer Blow Molding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-1000-10

Chat Now
Request A Quote
Huayu 1000L IBC Blow Moulding Machine with 800KN Clamping Force, 470kw Total Power, and 35KG Accumulator Capacity Huayu 1000L IBC Blow Moulding Machine with 800KN Clamping Force, 470kw Total Power, and 35KG Accumulator Capacity Huayu 1000L IBC Blow Moulding Machine with 800KN Clamping Force, 470kw Total Power, and 35KG Accumulator Capacity
Product Details
Screw Barrel Material:
38 CrMoAIA, Nitriding
Mould Material:
Aluminum
Clamping Force:
800KN
Air Seat Stroke:
400mm
Total Power:
470kw
Accumulator Capacity:
35KG
Bucket Thickness:
Not Very Thick
Gear Pimp:
Japan 125cc Double Pump
Product Material:
HDPE
Extrudor Motor:
37kw*6
Screw Material:
38 CrMoAIA, Nitriding
Plc Brand:
SIEMENS
Durability:
Excellent
Highlight:

800KN Clamping Force IBC Blow Moulding Machine

,

470kw Total Power Blow Molding Machine

,

35KG Accumulator Capacity Ten-Layer Blow Molding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by sea
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

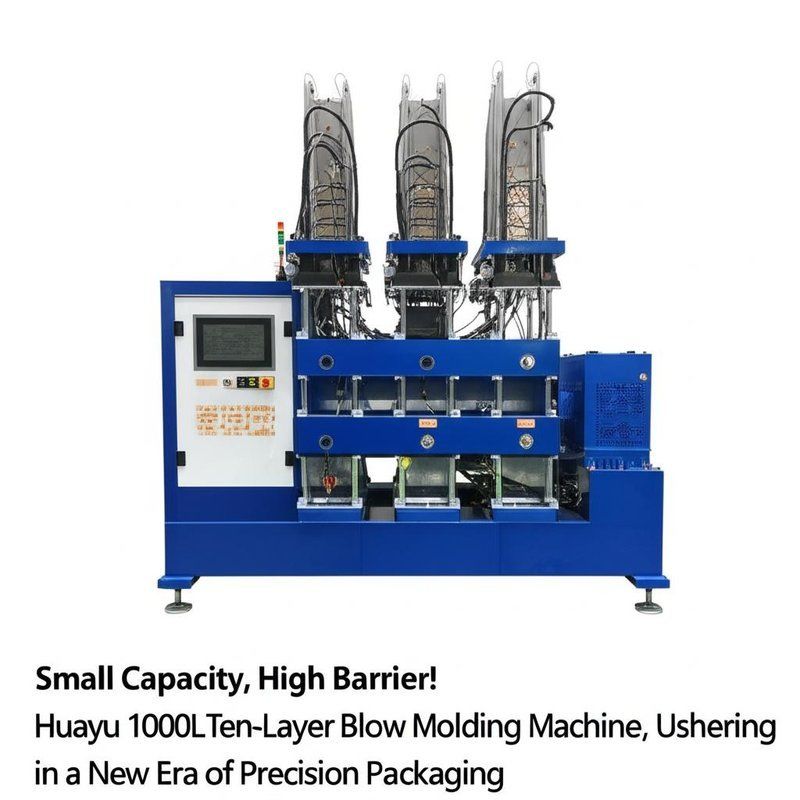

Small Capacity, High Barrier! Huayu 1000L Ten-Layer Blow Molding Machine
Even for smaller capacity specifications, Huayu pursues ultimate performance. Our 1000L ten-layer blow molding machine applies ten-layer co-extrusion technology to medium-sized containers, delivering unparalleled barrier performance and product reliability.
This 1000L ten-layer blow molding machine is Huayu's premium solution for the high-end medium-sized container market. It inherits the technical excellence of large ten-layer equipment while being specifically optimized for 1000L volume applications.
Technical Highlights
  • Ten Micro-Layer Barrier System: 10-layer co-extrusion technology provides excellent oxygen barrier, anti-permeation, and flavor preservation for 1000L containers, protecting sensitive contents.
  • Efficient Production: 350 kg/h capacity delivers high output for medium-sized containers. German Siemens PLC core control system ensures stable ten-layer structure extrusion.
  • Robust Performance: 1000 kN clamping force creates stable molding environment. Energy-saving design with optimized power configuration reduces operating costs.
Application Areas
Ideal for producing 1000L high-end pharmaceutical intermediate storage tanks, high-barrier chemical containers, and special food raw material storage/transportation drums. Perfect for applications requiring exceptional container purity and barrier properties.
Electronic System Specifications
Component Specification
Main operation panel Touch screen 12"
Control system PLC
Thickness control points 200 points
Temperature control PLC module
Main Frame Specifications
Component Specification
Up/down stroke 400mm
Up/down motor 2.2kw
Main Components Brand
Component Brand Origin
Motor Siemens Germany
Inverter Siemens Germany
Touch screen Siemens Germany
PLC Siemens Germany
Thickness controller MOOG Japan
Servo valve MOOG Germany
Oil pump/valve YUKEN Japan
Gear box Guomao China
Low-voltage apparatus Schneider/Fuji/Omron
Displacement pickup Jefran Italy
Hydraulic oil seal DZ Taiwan
Alternating current dynamo Siemens Germany
Huayu 1000L IBC Blow Moulding Machine with 800KN Clamping Force, 470kw Total Power, and 35KG Accumulator Capacity 0
The Huayu 1000L ten-layer blow molding machine demonstrates our commitment to technological excellence at every capacity level. It's the perfect solution for entering the high-value-added precision packaging market.
