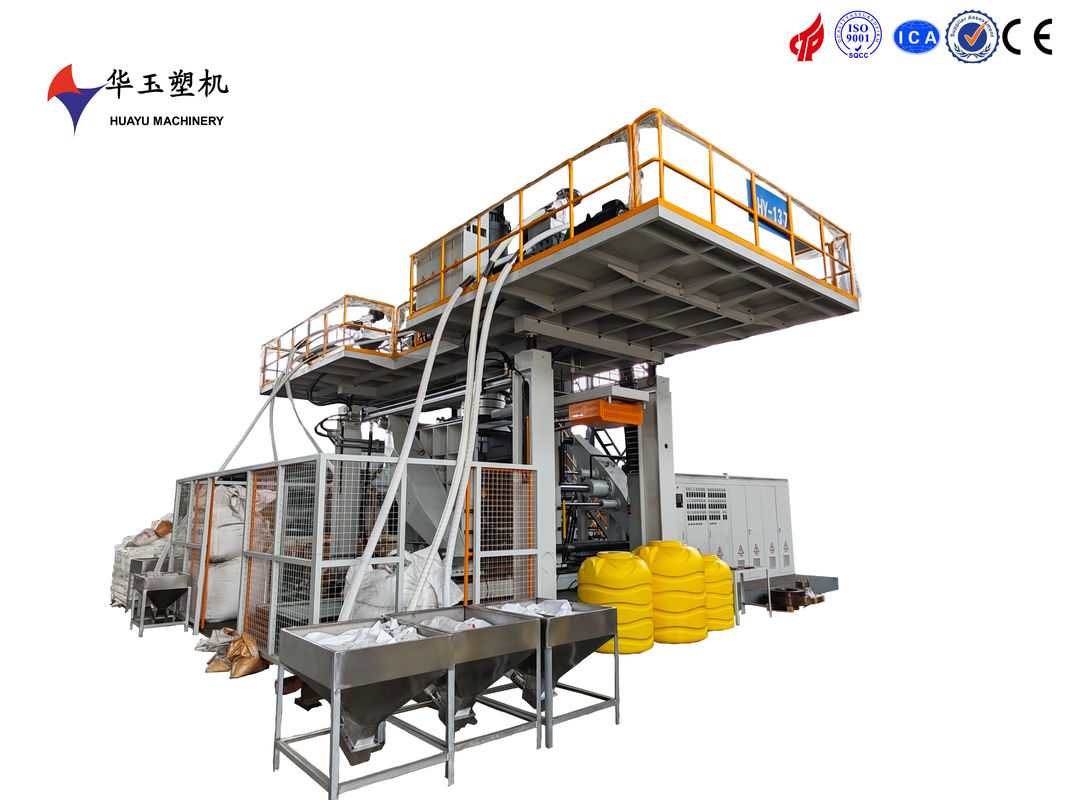

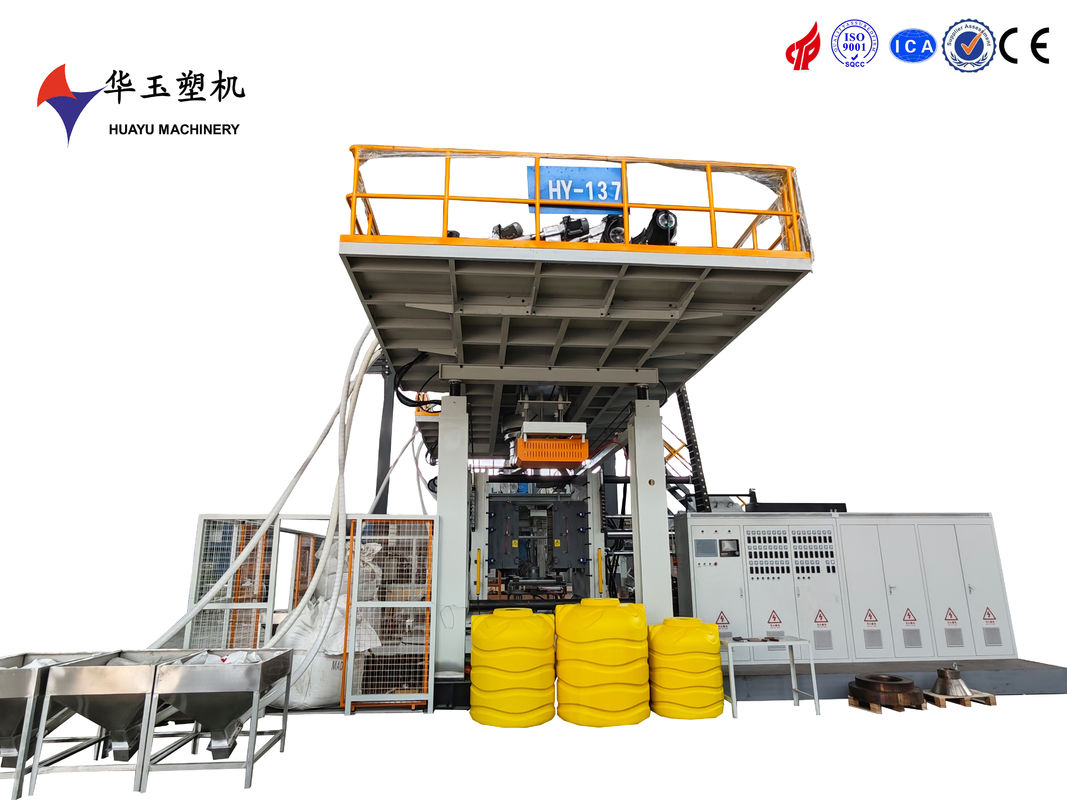

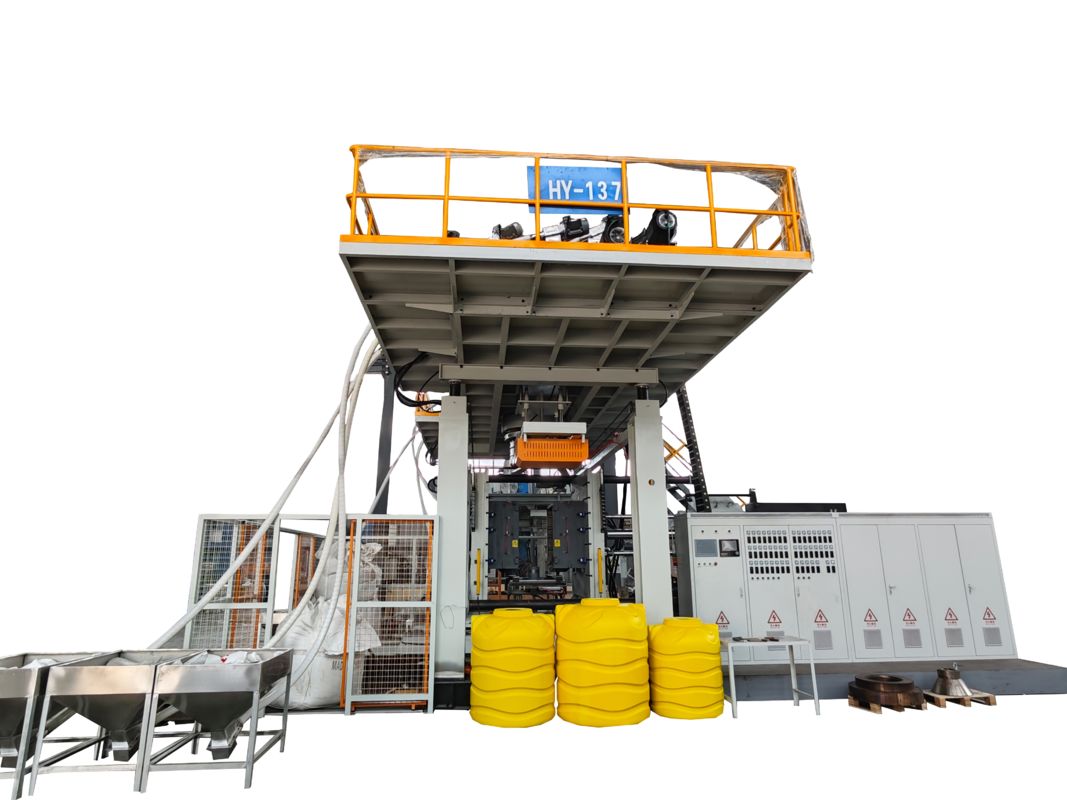

Huayu 20000L Single-Layer Blow Molding Machine with 7200 kN Clamping Force and 1400 kg/h Plasticizing Capacity for Ultra-Large Thick-Walled Containers

Huayu 20000L Single-Layer Blow Molding Machine with 7200 kN Clamping Force and 1400 kg/h Plasticizing Capacity for Ultra-Large Thick-Walled Containers

7200 kN Clamping Force Blow Molding Machine

1400 kg/h Plasticizing Capacity IBC Blow Moulding Machine

3600mm x 4200mm Platens Single-Layer Blow Molding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-20001

Chat Now
Request A Quote
Huayu 20000L Single-Layer Blow Molding Machine with 7200 kN Clamping Force and 1400 kg/h Plasticizing Capacity for Ultra-Large Thick-Walled Containers Huayu 20000L Single-Layer Blow Molding Machine with 7200 kN Clamping Force and 1400 kg/h Plasticizing Capacity for Ultra-Large Thick-Walled Containers Huayu 20000L Single-Layer Blow Molding Machine with 7200 kN Clamping Force and 1400 kg/h Plasticizing Capacity for Ultra-Large Thick-Walled Containers Huayu 20000L Single-Layer Blow Molding Machine with 7200 kN Clamping Force and 1400 kg/h Plasticizing Capacity for Ultra-Large Thick-Walled Containers Huayu 20000L Single-Layer Blow Molding Machine with 7200 kN Clamping Force and 1400 kg/h Plasticizing Capacity for Ultra-Large Thick-Walled Containers
Product Details
Extrudor Motor:
200kw*2
Durability:
Excellent
Feeder Type:
Vacuum Feeder
Tataol Power:
810
Average Aonsumption:
480KW
Temperature Control:
Modular Temperature Control
Feeding Type:
Vacuum Loaded
Machinetype:
Blow Moulding
Platen Distance:
2200-6200MM
Parison Control:
MOOG 200point
Die Head Heating:
180KW
Coolingsystem:
Air Cooling
Goods Capacity:
20000L
Highlight:

7200 kN Clamping Force Blow Molding Machine

,

1400 kg/h Plasticizing Capacity IBC Blow Moulding Machine

,

3600mm x 4200mm Platens Single-Layer Blow Molding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by sea
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description
Redefining Industry Standards: Huayu's 20000L Single-Layer Ultra-Large Blow Molding Machine
In the chemical and storage/transportation sectors, the demand for ultra-large, thick-walled, high-strength containers is growing. Born for such significant responsibilities, Huayu Plastic Machinery introduces the 20000L single-layer ultra-large blow molding machine. With masterful craftsmanship and cutting-edge technology, it empowers giant container manufacturing, becoming your reliable production partner.
Facing the challenge of ultra-large hollow products like IBC totes, large chemical storage tanks, and septic tanks, traditional equipment often falls short. The Huayu 20000L single-layer ultra-large blow molding machine is the key to solving this production challenge for you.
Core Technical Advantages
  • Superior Clamping Force & Precision Platens: This equipment boasts a powerful clamping force of up to 7200 kN, ensuring mold stability like a rock during the molding of giant products. The large-sized platens (3600mm x 4200mm) provide a solid foundation for ultra-large molds.
  • High-Efficiency Extrusion & Heavy-Duty Accumulator: Equipped with a powerful extrusion system, plasticizing capacity reaches up to 1400 kg/h. Its accumulator head can handle parison weights up to 700 kg, ensuring uniform wall thickness and sufficient strength.
  • Modular Design & Intelligent Control: Modular structural design makes disassembly and installation more convenient. The control system utilizes German Siemens PLC with American MOOG parison wall thickness control for precise operation.
Application Areas
Particularly suitable for producing thick-walled, high-strength products in the 8000L to 20000L range, including:
  • IBC totes
  • Large chemical containers
  • Municipal engineering facilities (e.g., septic tanks)
The Huayu 20000L single-layer blow molding machine is your solid backbone for entering the ultra-large plastic container market. Choosing Huayu means choosing a guarantee of stable production capacity and exceptional quality.
Technical Specifications
Auto Feeder
Hopper Material Stainless Steel Stable performance, easy maintenance
Feeding Type Spring Loaded
Feeding Motor 2.2/2.2kw
Extrusion System
Screw Diameter 180/180mm Nitrided 38CrMoAIA
Screw L/D Ratio 30:1 Special designed screw ensures uniform and efficient material plasticizing
Extruder Motor 200/200kw
Reducer 475/475 - Best quality brand in China, long life and low noise
Screw Heating Power 5kw*14
Plasticizing Capacity 1600kg/h
Die Head
Accumulator Capacity 600kg (designed by ourselves and patented)
Die Diameter According to products
Die Head Heating Power 180kw
Huayu 20000L Single-Layer Blow Molding Machine with 7200 kN Clamping Force and 1400 kg/h Plasticizing Capacity for Ultra-Large Thick-Walled Containers 0
