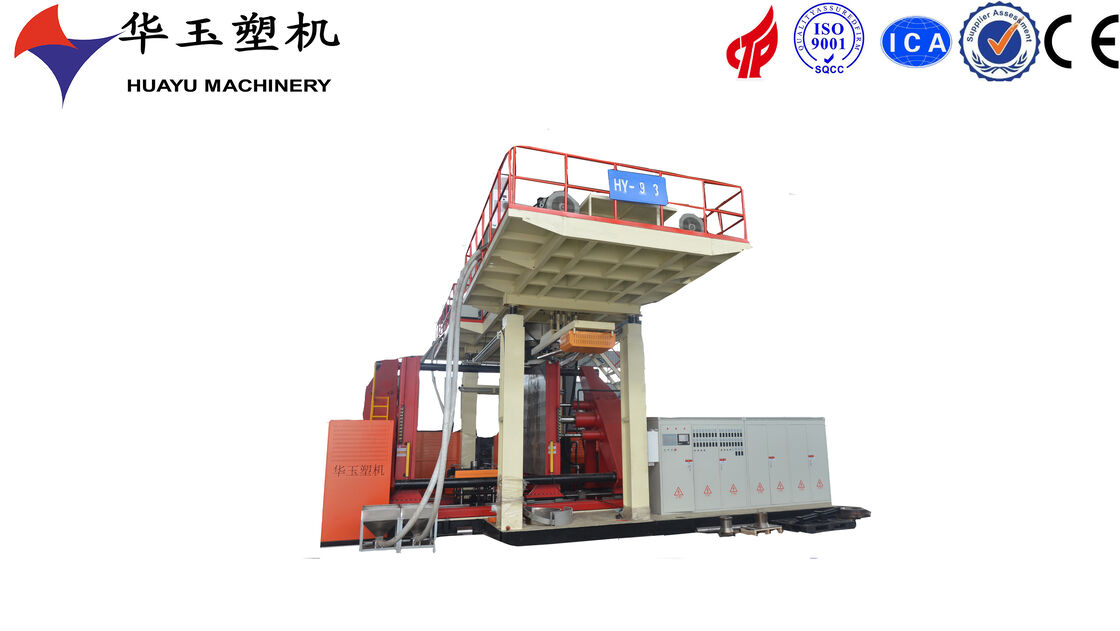

1000L Capacity Two-Layer Co-Extrusion Blow Molding Machine with 400KG/H Output for IBC Tanks

1000L Capacity Two-Layer Co-Extrusion Blow Molding Machine with 400KG/H Output for IBC Tanks

1000L Capacity Blow Molding Machine

Two-Layer Co-Extrusion IBC Blow Moulding Machine

400KG/H Output Two-Layer Blow Molding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-1002

Chat Now
Request A Quote
1000L Capacity Two-Layer Co-Extrusion Blow Molding Machine with 400KG/H Output for IBC Tanks
1000L Capacity Two-Layer Co-Extrusion Blow Molding Machine with 400KG/H Output for IBC Tanks
Product Details
Recyclability:
Recyclable
Thermorelay:
Siemens
Coolingsystem:
Air Cooling
Advantages:
20 Years Experiences
Applicable Material:
HDPE
Temperature Control:
Modular Temperature Control
Goods Capacity:
200L-1000L
Heating System:
Induction Heating
Output:
400KG/H
Extruder Motor:
75kw
Cooling Water Consumption:
3m3
Average Power:
190kw
Hopper Material:
Stainless Steel
Highlight:

1000L Capacity Blow Molding Machine

,

Two-Layer Co-Extrusion IBC Blow Moulding Machine

,

400KG/H Output Two-Layer Blow Molding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
5 sets per month
RELATED PRODUCTS
CONTACT US
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description
1000L Two-Layer Blow Molding Machine
1000L Capacity Two-Layer Co-Extrusion Blow Molding Machine with 400KG/H Output for IBC Tanks 0
The 1000L two-layer blow molding machine represents an advanced evolution from single-layer systems, utilizing co-extrusion technology to produce containers with superior functional properties. This industrial equipment employs two separate extruders—each with 110mm screw diameters—that feed different materials into a collaborative die head, where they merge into a layered parison without complete mixing.
This configuration enables strategic material combinations, such as pairing a virgin outer layer with a recycled inner layer, achieving both premium surface quality and significant cost reduction. These systems maintain production capacities comparable to single-layer machines, typically achieving 16-25 containers per hour for 1000L products, while delivering substantially enhanced container performance.
The primary advantage lies in creating functional barriers against moisture, chemicals, and UV degradation, dramatically expanding application possibilities. The sophisticated control systems require precise synchronization between the two extrusion streams and incorporate advanced wall thickness control with up to 200 adjustment points for optimal material distribution.
Technical Specifications
Applicable Material HDPE | China·HUAYU
Capacity Range 200-1000L, 2 layers
Voltage Pending
Total Power 300kw
Average Power 190kw
Machine Dimension (L*W*H) 8*5.6*6.5
Productivity 16-25 pcs/h
Auto Feeder System
Hopper Material Stainless steel | Stable performance, easy maintenance
Feeding Type Spring loaded
Feeding Motor 1.5/1.5kw
Extrusion System
Screw Diameter 110/110mm | Nitrided 38CrMoAIA
Screw L/D Ratio 28:1 | Special designed screw ensures uniform and efficient material plasticizing
Extruder Motor 75/75kw
Reducer 315/315 | Best quality brand in China, long life and low noise
Screw Heating Power 5.5kw*10
Plasticizing Capacity 400kg/h
Die Head System
Accumulator Capacity 35kg | Custom designed with patent protection
Die Diameter According to products
Die Head Heating Power 60kw
1000L Capacity Two-Layer Co-Extrusion Blow Molding Machine with 400KG/H Output for IBC Tanks 1 1000L Capacity Two-Layer Co-Extrusion Blow Molding Machine with 400KG/H Output for IBC Tanks 2 1000L Capacity Two-Layer Co-Extrusion Blow Molding Machine with 400KG/H Output for IBC Tanks 3
