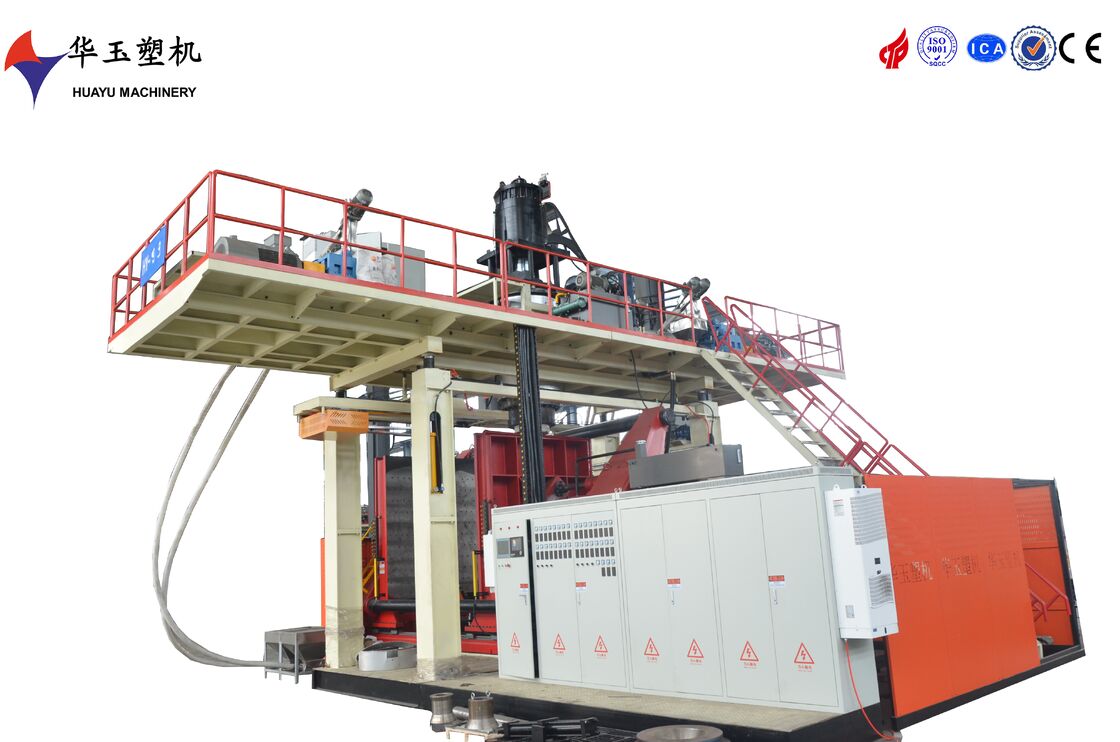

1000L Capacity Five-Layer Blow Molding Machine with Modular Temperature Control for IBC Containers

1000L Capacity Five-Layer Blow Molding Machine with Modular Temperature Control for IBC Containers

1000L Capacity Blow Molding Machine

Five-Layer Structure IBC Blow Moulding Machine

Modular Temperature Control Five-Layer Blow Molding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM1005

Chat Now
Request A Quote
1000L Capacity Five-Layer Blow Molding Machine with Modular Temperature Control for IBC Containers
1000L Capacity Five-Layer Blow Molding Machine with Modular Temperature Control for IBC Containers
Product Details
Temperature Control:
Modular Temperature Control
Extruder Motor:
37kw*5
Goods Capacity:
1000L
Plasticizing Capacity:
400kg/h
Structual Style:
Huayu Patent Technology Five Layers
Materail:
HDPE
Platen:
1500*1600MM
Blow Moulding Type:
Extrusion Blow Moulding
Platen Distance:
900-2400MM
Key Selling Points:
High Productivity
Feeding Motor:
2.2kw
Advantages:
20 Years Experiences
Highlight:

1000L Capacity Blow Molding Machine

,

Five-Layer Structure IBC Blow Moulding Machine

,

Modular Temperature Control Five-Layer Blow Molding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
5 sets per month
RELATED PRODUCTS
CONTACT US
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description
1000L Five-Layer Blow Molding Machine
1000L Capacity Five-Layer Blow Molding Machine with Modular Temperature Control for IBC Containers 0
The 1000L five-layer blow molding machine represents advanced container manufacturing technology, designed for producing high-barrier containers for the most demanding industrial applications. These sophisticated systems utilize five independent extruders arranged in a specific configuration to feed different material types into a multi-layer die head that creates precisely layered parisons.
Technical Specifications
Each extruder features an 80mm screw diameter with a 28:1 length-to-diameter ratio, powered by 30kW servo motors that ensure precise volumetric control and optimal plasticization. These high-performance systems can produce 1000L containers at a rate of 16-25 per hour, with a total power requirement of approximately 402 kW and average energy consumption of 220 kW.
Advanced Die Head Technology
The key technological component is the penta-layer die head with a 1000-liter capacity, engineered with spiral flow channels that eliminate weld marks and ensure uniform material distribution throughout the container structure.
Control System
The integrated Siemens PLC control system with touchscreen interfaces allows operators to monitor and adjust each layer's parameters independently, including temperature profiles, extrusion speeds, and individual layer thickness ratios for optimal production quality.
Technical Parameters
Temperature control PLC module
Main frame Up/down stroke 400mm
Up/down motor 4kw
Premium Component Brands
Component Brand Origin
Motor Siemens Germany
Inverter Siemens Germany
Touch screen Siemens Germany
PLC Siemens Germany
Thickness controller MOOG Japan
Servo valve MOOG Germany
Oil pump/valve YUKEN Japan
Gear box Guomao China
Low-voltage apparatus Schneider/Fuji/Omron
Displacement pickup Jefran Italy
Hydraulic oil seal DZ Taiwan
Intermediate relay Schneider France
Contactor Schneider France
Air switch Schneider France
Circuit breaker Schneider France
Thermal relay Schneider France
Alternating current dynamo Siemens Germany
1000L Capacity Five-Layer Blow Molding Machine with Modular Temperature Control for IBC Containers 1 1000L Capacity Five-Layer Blow Molding Machine with Modular Temperature Control for IBC Containers 2 1000L Capacity Five-Layer Blow Molding Machine with Modular Temperature Control for IBC Containers 3
