1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers

1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers

1000L Blow Molding Machine

Seven-Layer IBC Blow Moulding Machine

PLC Control Blow Molding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-1007

Chat Now
Request A Quote
1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers
1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers
Product Details
Controlsystem:
PLC With Touch Screen
Heating System:
Induction Heating
Recyclability:
Recyclable
Layers:
7 LAYERS
Advantages:
20 Years Experiences
Average Aonsumption:
385KW
Extrudor Motor:
45*7
Voltage:
380V/50HZ
Feeding Type:
Spring Loaded
Screw Barrel Material:
38CrMoAlA，Nitriding
Highlight:

1000L Blow Molding Machine

,

Seven-Layer IBC Blow Moulding Machine

,

PLC Control Blow Molding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiate
Packaging Details
container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
5 sets per month
RELATED PRODUCTS
CONTACT US
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

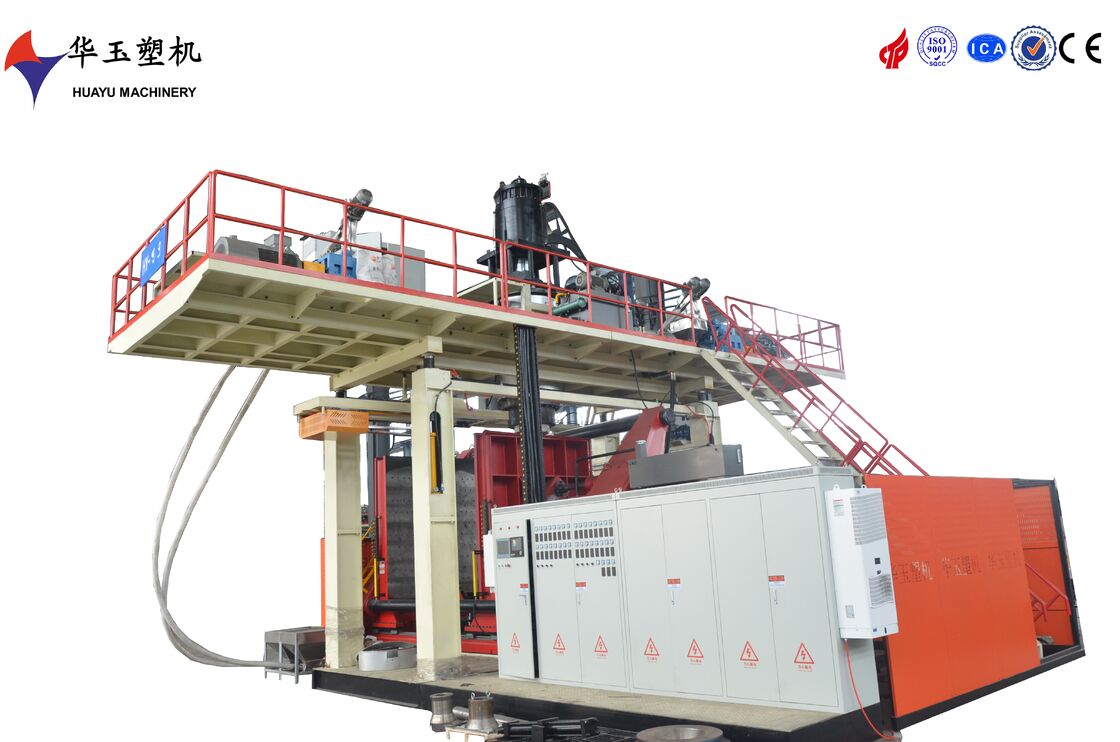

1000L Seven-Layer Blow Molding Machine
1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers 0
The 1000L seven-layer blow molding machine represents the pinnacle of container manufacturing technology, enabling the production of superior barrier containers for the most demanding applications, including automotive fuel systems, hazardous chemical packaging, and sensitive food products.
These state-of-the-art systems utilize seven independent extruders arranged in a precise configuration to feed different material types into a sophisticated multi-layer die head that creates a perfectly layered parison with exceptional precision. Each extruder features specialized screw designs optimized for specific materials, with advanced grooved barrel sections ensuring stable extrusion and homogeneous melting.
These advanced machines require substantial power (typically 385-585 kW) and incorporate sophisticated temperature control systems maintaining ±1°C accuracy across all heating zones. The key technological component is the hepta-layer die head with sophisticated flow channels that maintain perfect layer separation until parison formation. The control system integrates industrial PCs with high-resolution touchscreen interfaces that allow operators to monitor and adjust each layer's parameters with exceptional precision, including temperature profiles, extrusion speeds, and individual layer thickness ratios.
Technical Specifications
Applicable Material HDPE China HUAYU
Capacity Range 200-1000L, 7 layers
Voltage Pending
Total Power 585 kW
Average Power 385 kW
Machine Dimension (L*W*H) 8*9*6.5
Productivity 16-25 pcs/h
Auto Feeder System
Hopper Material Stainless Steel Stable performance, easy maintenance
Feeding Type Vacuum Loaded
Feeding Motor 11 kW
Extrusion System
Screw Diameter 90mm*7 Nitrided 38CrMoAIA
Screw L/D Ratio 28:1 Special designed screw can ensure material plasticizing uniform and efficient
Extruder Motor 45 kW*7
Reducer 250*7 Best quality brand in China, long life and low noise
Screw Heating Power 4.4 kW*28
Plasticizing Capacity 560 kg/h
1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers 1
1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers 2
1000L Seven-Layer IBC Blow Molding Machine with PLC Control for Superior Barrier Containers 3
