1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers

1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers

1000L Capacity Blow Molding Machine

Eight-Layer Extrusion IBC Blow Moulding Machine

560kg/H Plasticizing Capacity Blow Molding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-1008

Chat Now
Request A Quote
1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers
1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers
Product Details
Plasticizing Capacity:
560kg/H
Platen:
1500*1600MM
Total Power:
540kw
Accumulator Capacity:
35KG
Die Head Heatingpower:
80 KW
Feeder Type:
Spring Feeder
Blow Moulding Type:
Extrusion Blow Moulding
Capacity Range:
1000L I
Productivity:
16--25pcs/h
Mould Material:
Aluminum
Average Aonsumption:
320KW
Screw Material:
38 CrMoAIA, Nitriding
Temperature Control:
Modular Temperature Control
Highlight:

1000L Capacity Blow Molding Machine

,

Eight-Layer Extrusion IBC Blow Moulding Machine

,

560kg/H Plasticizing Capacity Blow Molding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiate
Packaging Details
container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
5 sets per month
RELATED PRODUCTS
CONTACT US
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

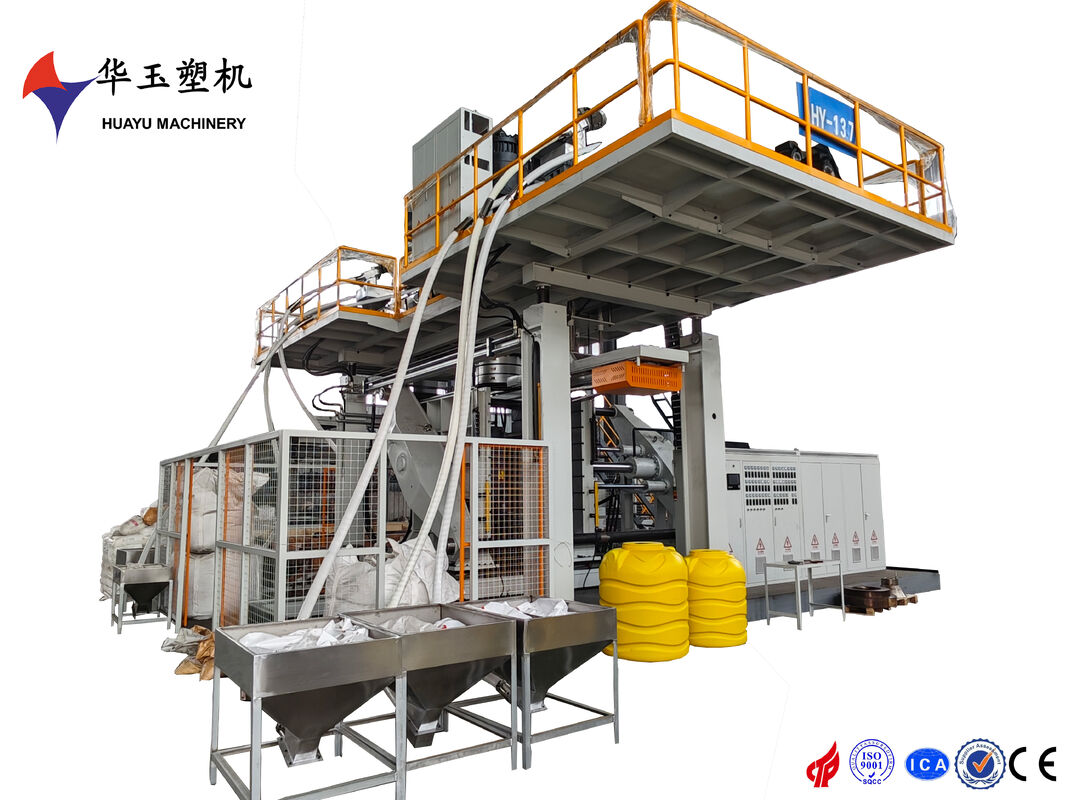

1000L Eight-Layer Blow Molding Machine
1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers 0
The 1000L eight-layer blow molding machine represents the pinnacle of container manufacturing technology, designed for producing ultimate barrier containers that meet the most demanding protection requirements across various industries.
Advanced Technology Features
  • Eight independent extruders arranged in precise configuration for multi-material processing
  • Sophisticated multi-layer die head creating perfectly layered parisons with exceptional precision
  • Specialized screw designs with advanced barrier screws and grooved feed sections
  • Ultra-precise temperature control systems maintaining ±0.5°C accuracy
  • Industrial computer control system with high-resolution touchscreen interface
Technical Specifications
Specification Value Details
Applicable Material HDPE China·HUAYU
Capacity Range 200-1000L, 8 layers
Total Power 540kW
Average Power 320kW
Machine Dimensions (L×W×H) 8×9×6.5m
Productivity 16-25 pcs/h
Auto Feeder System
Component Specification Features
Hopper Material Stainless Steel Stable performance, easy maintenance
Feeding Type Spring Loaded
Feeding Motor 2.2kW × 8
Extrusion System
Component Specification Features
Screw Diameter 80mm × 8 Nitrided 38CrMoAIA
Screw L/D Ratio 28:1 Special designed screw ensures uniform and efficient material plasticizing
Extruder Motor 37kW × 8
Reducer 225 × 8 Best quality brand in China, long life and low noise
Screw Heating Power 3kW × 32
Plasticizing Capacity 560kg/h
Die Head System
Component Specification Features
Accumulator Capacity 35kg Designed by ourselves and patented
Die Diameter According to products
Die Head Heating Power 80kW
Clamping System
Component Specification Features
Platen Size (W×H×T) 1500×1600×60mm Smooth running, no noise; high clamping force
Clamping Cylinder 250
Clamping Cylinder Stroke 1500mm
Clamping Force 600KN
Distance Between Platens 900-2400mm
Maximum Mold Size (W×H) 1200×1500mm
Machine Gallery
1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers 1 1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers 2 1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers 3 1000L Capacity Eight-Layer Extrusion Blow Molding Machine with 560kg/H Plasticizing Capacity for IBC Containers 4
