Name: High-Quality 1000L IBC Blow Molding Machine with 3-Layer Co-extrusion and PLC Touch Screen Control
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-IBC3
Price: 340000 USD
Availability: InStock

Home > Products > IBC Blow Moulding Machine >

High-Quality 1000L IBC Blow Molding Machine with 3-Layer Co-extrusion and PLC Touch Screen Control

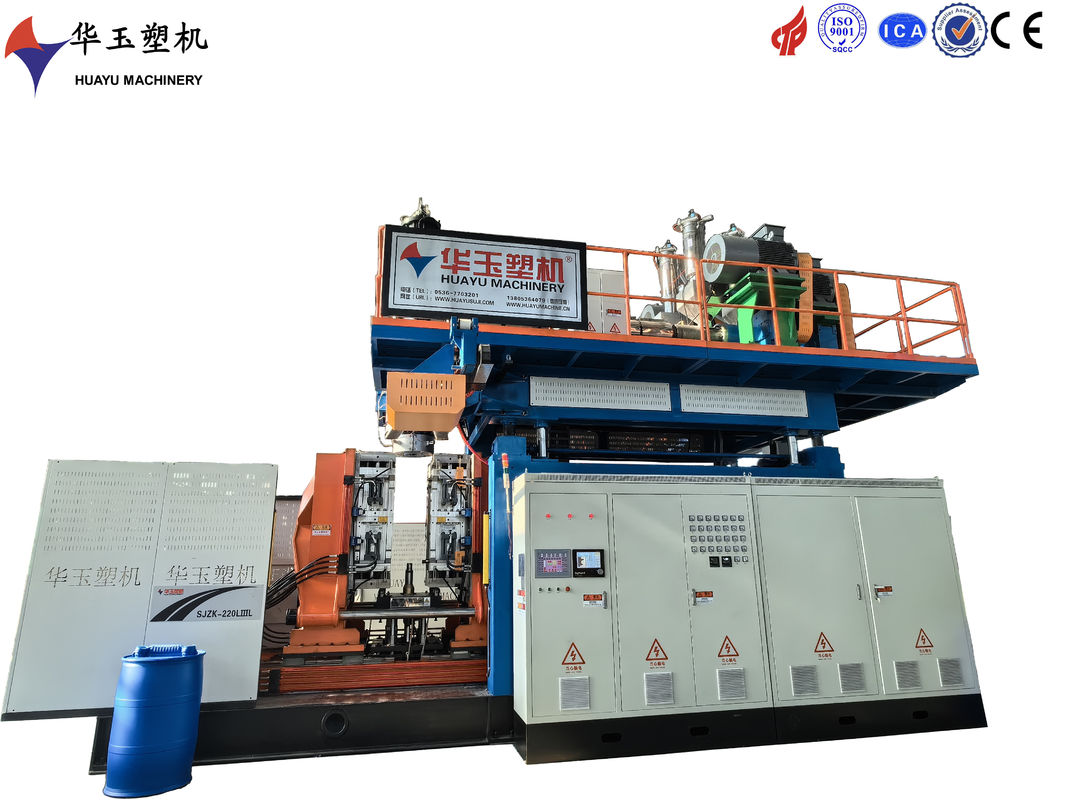

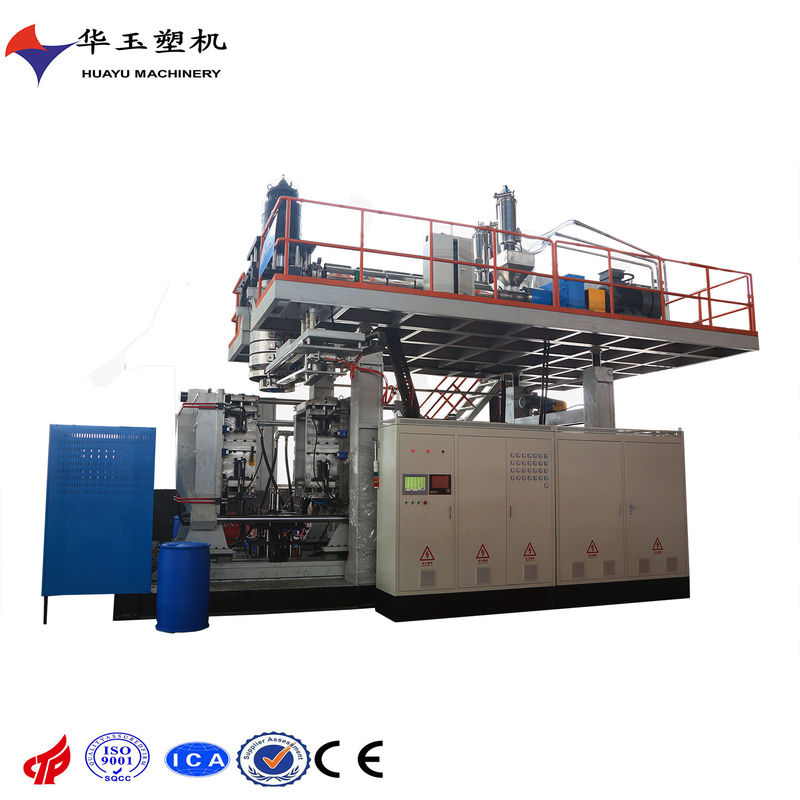

3-Layer Co-extrusion IBC Blow Molding Machine

1000L Production Capacity Blow Molding Machine

PLC Touch Screen Control IBC Blow Moulding Machine

Place of Origin:

CHINA

Brand Name:

HUAYU

Certification:

ISO9001 CE

Model Number:

HYBM-IBC3

Chat Now

Request A Quote

Product Details

Screw Dia:

120mm×1

L/D:

30:1

Screw Material:

38CrMoAlA，Nitriding

Output:

20PCS/h

Air Supply:

0.8×6

Total Power:

463KW

Average Energy:

About 200 Kw Per Hour

Highlight:

3-Layer Co-extrusion IBC Blow Molding Machine

1000L Production Capacity Blow Molding Machine

PLC Touch Screen Control IBC Blow Moulding Machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

340000USD

Packaging Details

be disassembled into many parts for container transportation

Delivery Time

4 MONTHS

Payment Terms

T/T,L/C

Supply Ability

1SET 120DAYS

RELATED PRODUCTS

86-152-6568-7399

padraic@huayumachine.cn

86-0536-770-9997

Chat Now

Product Description

High-Quality 3-Layer IBC Blow Molding Machine with 1000L Production Capacity

Core Advantages

Tri-layer Co-extrusion Technology - Integrates high-strength inner layer, anti-corrosion middle layer and wear-resistant outer layer, ensuring excellent pressure resistance, leakproof performance and long service life. Fully meets international transportation and storage standards for hazardous chemicals and liquid goods.
1000L Standardized Molding - Achieves precise one-time molding of 1000L standard IBC tanks with uniform wall thickness and consistent dimensional tolerance (±0.5mm). Eliminates secondary processing procedures while improving production efficiency and reducing material waste.
Intelligent Process Control - Equipped with PLC touch screen control system supporting real-time adjustment of temperature, pressure and speed parameters. Automatic fault alarm function reduces manual intervention and ensures stable mass production.
Energy-saving & Cost-effective Operation - Features servo motor drive and heat recovery system, reducing energy consumption by 25% compared to single-layer blow molding machines. High material utilization rate (up to 98%) lowers raw material costs for large-scale production.
Strong Compatibility & Customization - Compatible with HDPE, PP and other raw materials. Supports customization of inner layer anti-static, middle layer UV-resistant and other functional configurations to meet diverse industry needs including chemical, food and pharmaceutical sectors.
Safe & Reliable Structure Design - Heavy-duty steel frame with anti-vibration treatment ensures stable operation during high-load production. Safety door with interlock protection and emergency stop button fully complies with CE and ISO safety standards for operator protection.

Energy Configuration Specifications

Component	Specification
Extruder Driving Power	110KW * 1, 75KW * 2
Hydraulic Main System Motor Power	48KW Servo Motor
Wall Thickness Control Motor Power	11 KW
Heating Power of Extrusion System	16 pcs * 6KW/pc
Power of Die Heating	8 pcs * 6KW/pc
Air Supply	0.8 * 6 (MPa * Cubic meter per minute)
Cooling Water Consumption	0.3 * 20° * 30 (MPa * degree * Cubic meter per hour)
Total Power	463KW
Average Energy Consumption (AEC)	About 200 KW per hour
