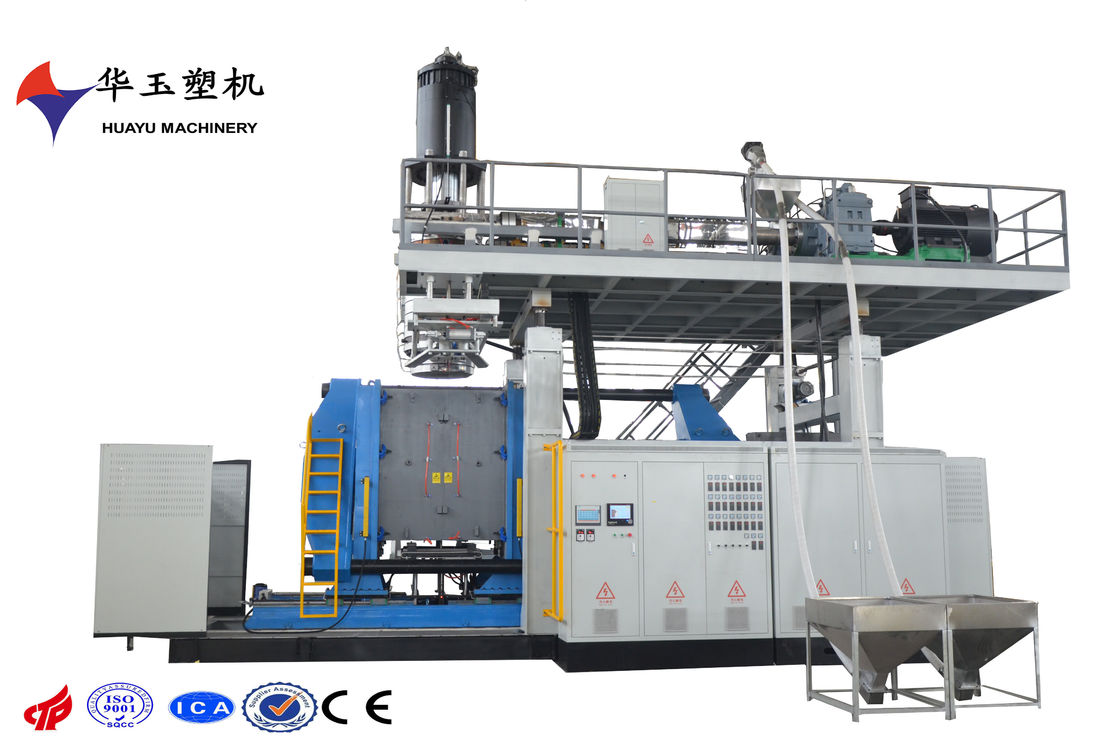

200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine

200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine

200L HDPE plastic drum machine

220L double L-ring blow moulding machine

extrusion blow moulding machine for drums

Place of Origin:

CHINA

Brand Name:

HUAYU

Certification:

CE,TUV,ISO9001，SGS

Model Number:

HYBM-220-1

Chat Now
Request A Quote
200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine
200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine 200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine 200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine 200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine 200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine
Product Details
Capacity Rang:
220L
Machine Dimension:
8.2*5.2*5.8
Average:
130kw
Total Power:
300kw
Accumulator Capacity:
20kg
Screw Diameter:
130
Plasticizing Capacity:
300kg
Platen Size:
1500*1600
Highlight:

200L HDPE plastic drum machine

,

220L double L-ring blow moulding machine

,

extrusion blow moulding machine for drums

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
negotiation
Packaging Details
The machine will be disassembled into many parts for container transportation.
Delivery Time
4months
Payment Terms
L/C, T/T
Supply Ability
40sets/year
RELATED PRODUCTS
CONTACT US
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine



200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine 0



Machine specifiaction



220 Double l RING

1layer

Capacity rang

220L

Machine dimension

8.2*5.2*5.8M

Average

130KW

Total power

300KW

Accumulator capacity

20KG

Extruder motor

132KW

Screw diameter

130MM

Screw L/D ratio

30:1

Plasticizing capacity

300KG/H

Platen size

1500*1600MM

Platen distance

900-2400MM

Clamping force

1200KN

Servo motor

35.7KW





Company advantage

Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!

Fully understand the various request of our customer.Help customer to choose the correct type of blow molding machine and auxiliary equipment.Reasonably plan customers’ water, electricity, gas, oil and other solutions.

Provide customers with technical guidance and continuous optimization of products for life.

Weifang Plastic Machinery Co., Ltd. has over 20 years of experience in producing and designing blow molding machines, and has over 30 comprehensive mechanical processing equipment such as large machining centers, large floor boring and milling machines imported from Germany, large gantry milling machines, and large CNC lathes, which can grasp the accuracy of equipment processing from the source.

Servo motor, saving energy efficiency and reducing production costs





CERTIFICATION

200L 220L Double L ring drum HDPE Plastic Extrusion Blow Moulding Machine 1
