3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System

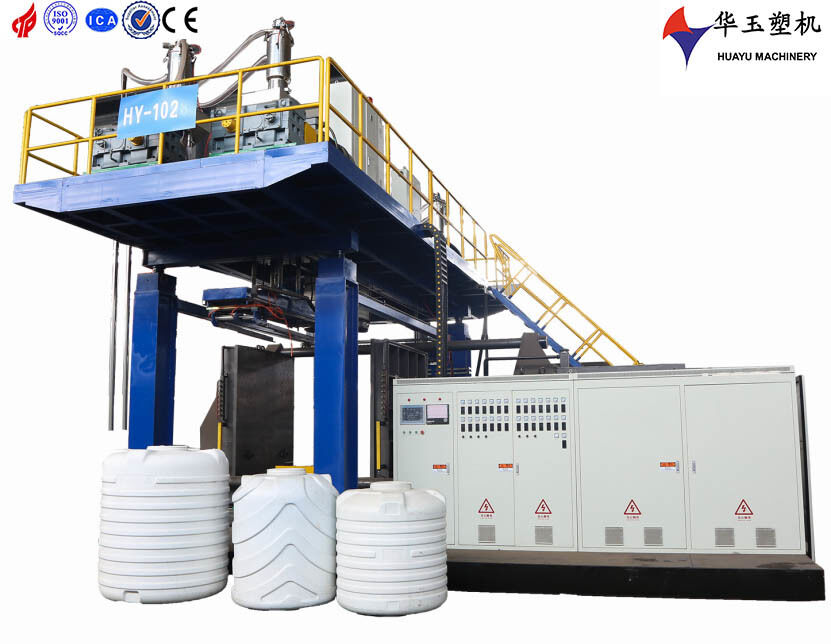

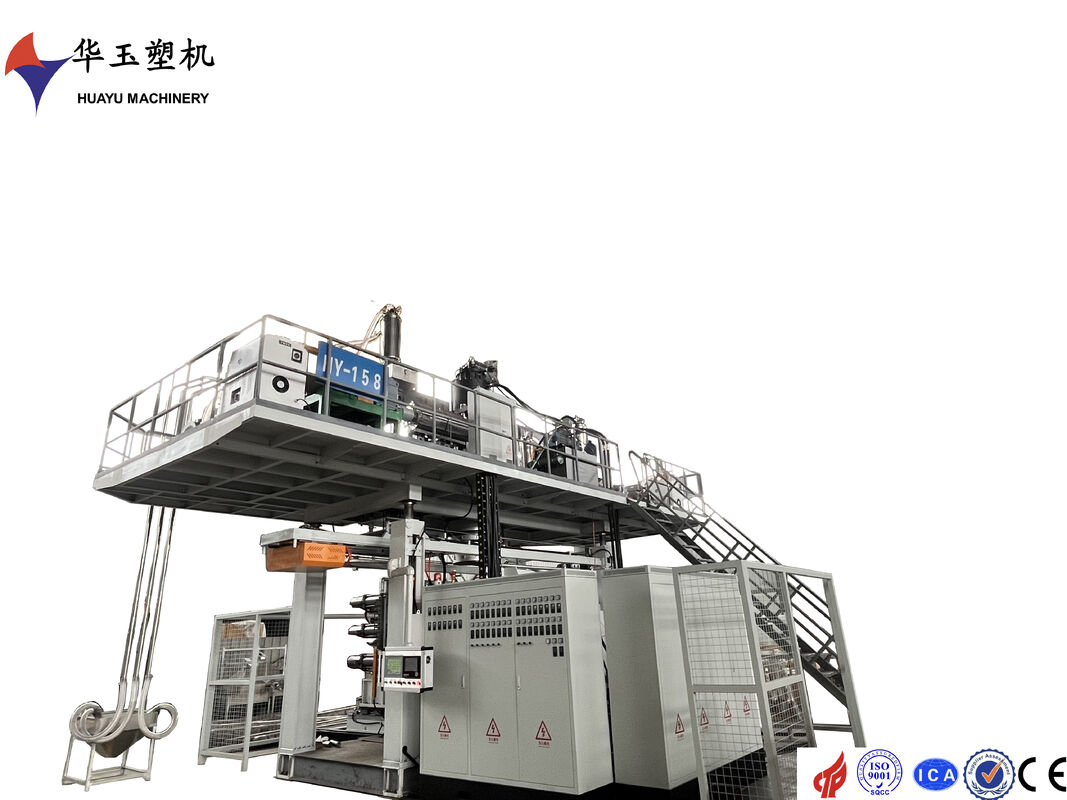

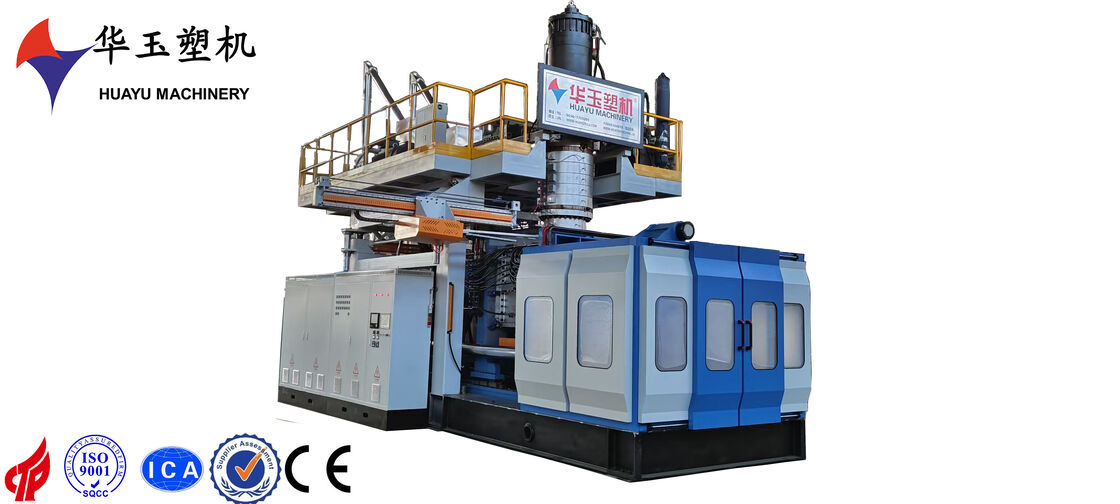

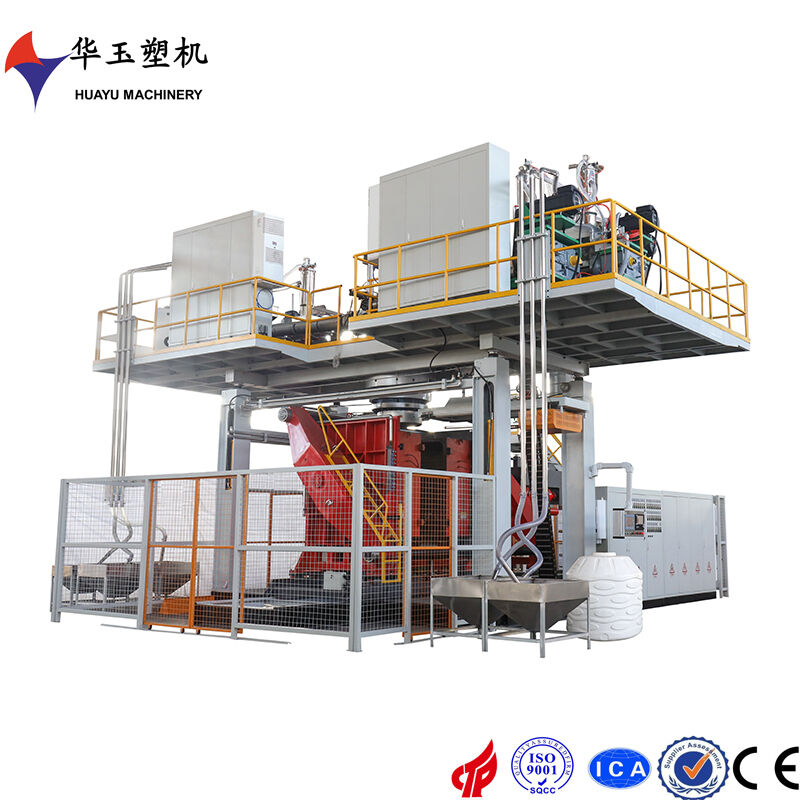

3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System

3000L Capacity Blow Molding Machine

8-Layer Co-Extrusion IBC Blow Moulding Machine

Rapid Cooling System Water Tank Blow Molding Machine

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-3008

Chat Now
Request A Quote
3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System
3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System 3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System 3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System 3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System
Product Details
Hopper Material:
Stainless Steel
Layer:
8 Layers
Automatic:
Yes
Mould Material:
Aluminum
Capacity:
3000L
Heatingmethod:
Electric Heating
Cooling Water Consumption:
0.3Mpa*20degree*30per Hour
Bucket Thickness:
Not Very Thick
Warranty:
1 Year
Cooling Mode:
Air Cooled
Highlight:

3000L Capacity Blow Molding Machine

,

8-Layer Co-Extrusion IBC Blow Moulding Machine

,

Rapid Cooling System Water Tank Blow Molding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by containers
Delivery Time
4 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine
This high-capacity blow molding machine features 8-layer co-extrusion technology and a 3000L capacity, engineered for rapid production cycles. The integrated water tank cooling system ensures efficient heat dissipation, significantly reducing cycle times while maintaining consistent product quality. Advanced control systems provide precise molding process management, while the robust construction delivers long-term reliability with minimal maintenance requirements.
Blowing and Cooling System Specifications
Stretching StrokeCustomizable according to product requirements
Blow Pin Up/Down Stroke600mm
Air Seat Stroke400mm
Maximum Air Pressure0.8 MPa
Air Consumption3 m³/min
Cooling MethodCirculating Water System
Water Pressure0.3 MPa
Cooling Water Consumption75 m³/h
Hydraulic System Specifications
Main Oil Tank Capacity1700L
Main Oil PumpGear Pump 200CC
Main Oil Pump Motor75 kW
Servo Oil Tank Capacity200L
Servo Oil Pump ModelPlunger Pump 22
Servo Oil Pump Motor11 kW
Features: Servo motor technology for reduced energy consumption, high efficiency operation, and low noise levels
3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System 0
