Name: 5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-5008
Price: 410,090.00 USD
Availability: InStock

Home > Products > IBC Blow Moulding Machine >

5000L Capacity 8-Layer Co-Extrusion Energy-Saving IBC Blow Moulding Machine with Water Cooling System

5000L Capacity IBC Blow Moulding Machine

8-Layer Co-Extrusion Blow Molding Machine

Energy-Saving Water Tank Blow Molding Machine

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-5008

Chat Now

Request A Quote

Product Details

Hopper Material:

Stainless Steel

Screw Material:

38 CrMoAIA, Nitriding

Materail:

HDPE

Durability:

Excellent

Cooling System:

Water Cooling

Mould Material:

Aluminum

Color:

Customized

Voltage:

DEPENDS

Thermorelay:

Siemens

Highlight:

5000L Capacity IBC Blow Moulding Machine

8-Layer Co-Extrusion Blow Molding Machine

Energy-Saving Water Tank Blow Molding Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiate

Packaging Details

by container

Delivery Time

4 months

Payment Terms

L/C,T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-152-6568-7399

padraic@huayumachine.cn

86-0536-770-9997

Chat Now

Product Description

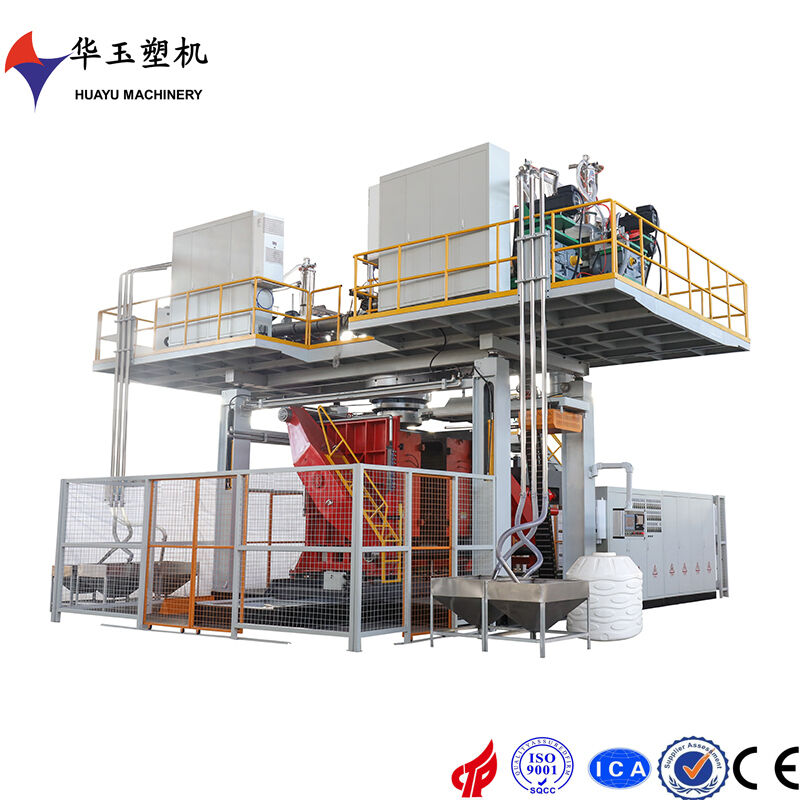

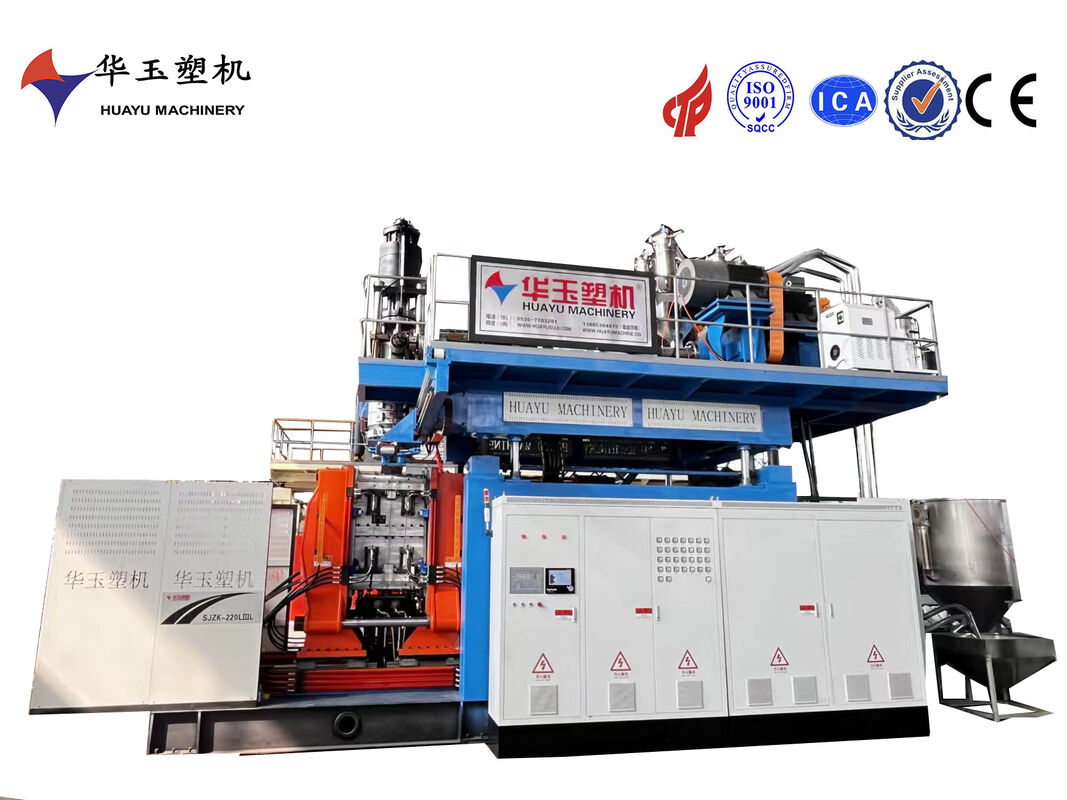

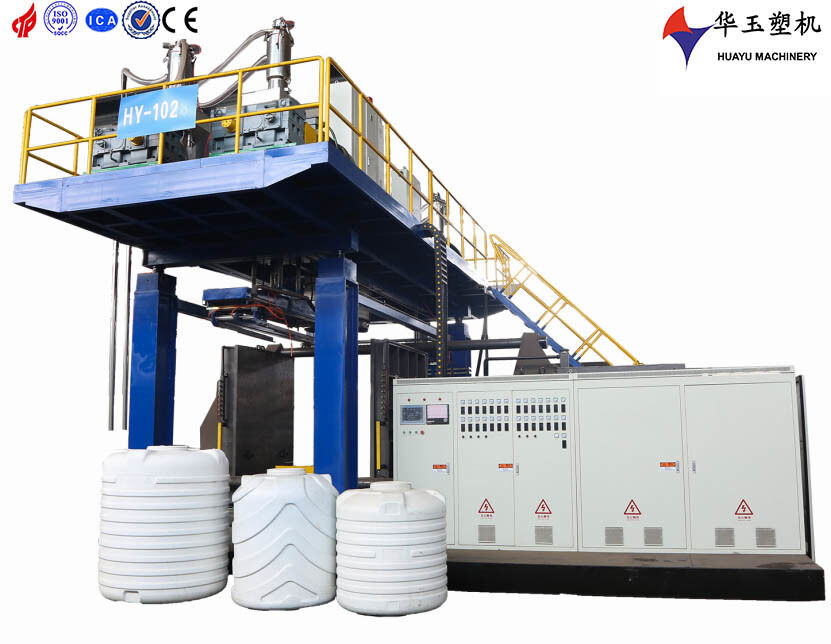

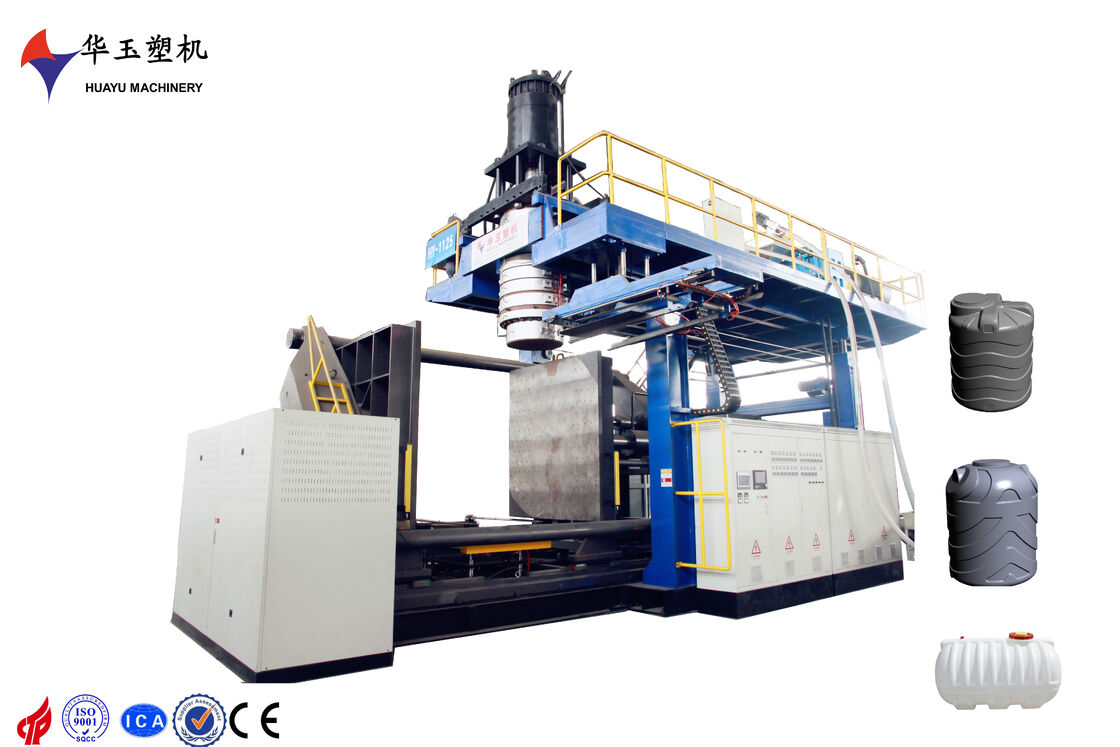

5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System

This energy-saving blow molding machine features a 5000L capacity and 8-layer co-extrusion technology designed to optimize energy usage. The integrated water tank system ensures rapid and effective cooling, significantly reducing energy consumption and operational costs. With an advanced control system providing precise process control, the machine delivers high-quality products consistently. Built for durability and reliable performance, it is ideal for large-scale production environments. The water tank is engineered for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for industrial production needs.

Clamping System Specifications

Parameter	Specification	Features
Platen Size	2400250070mm (WHT)	Smooth running, no noise; high clamping force
Clamping Cylinder	350+200*2	-
Clamping Cylinder Stroke	2200mm	-
Clamping Force	3000KN	-
Distance Between Platens	1600-4000mm	-
Maximum Mold Size	18002500mm (WH)	-

Blowing and Cooling System Specifications

Parameter	Specification
Stretching Stroke	According to products
Blow Pin Up/Down Stroke	600mm
Air Seat Stroke	400mm
Maximum Air Pressure	0.8Mpa
Air Consumption	3m³/min
Cooling Method	Circulating water
Water Pressure	0.3MPa
Cooling Water Consumption	75m³/h
