Place of Origin:
China
Brand Name:
Huayu
Certification:
CE,ISO9001
Model Number:
HYBM-1004

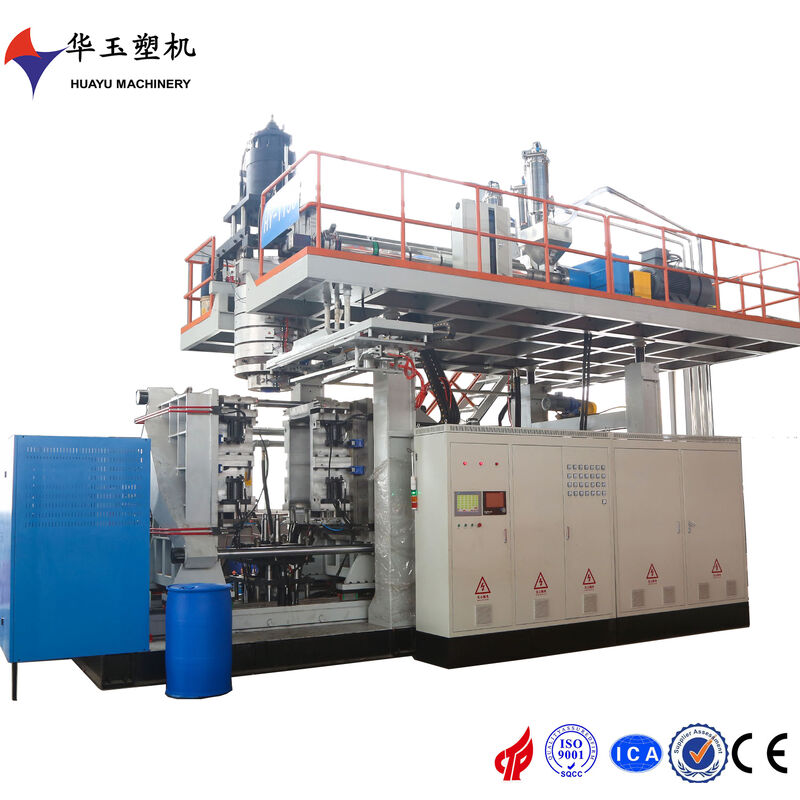

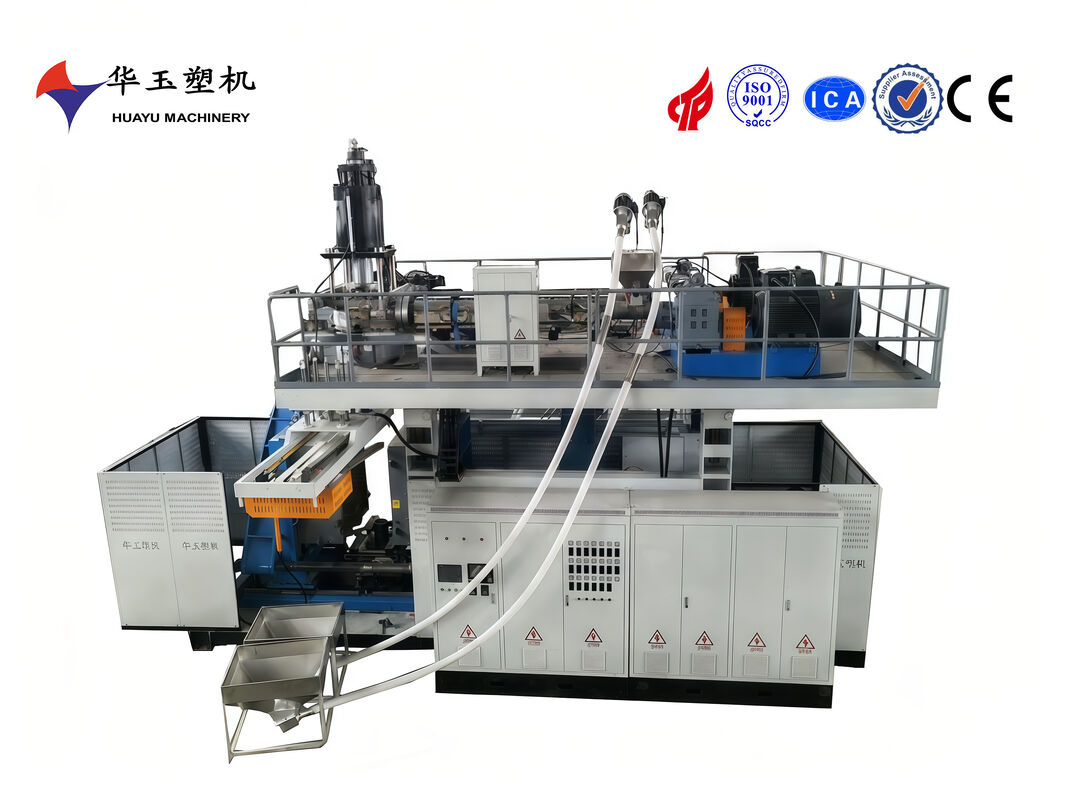

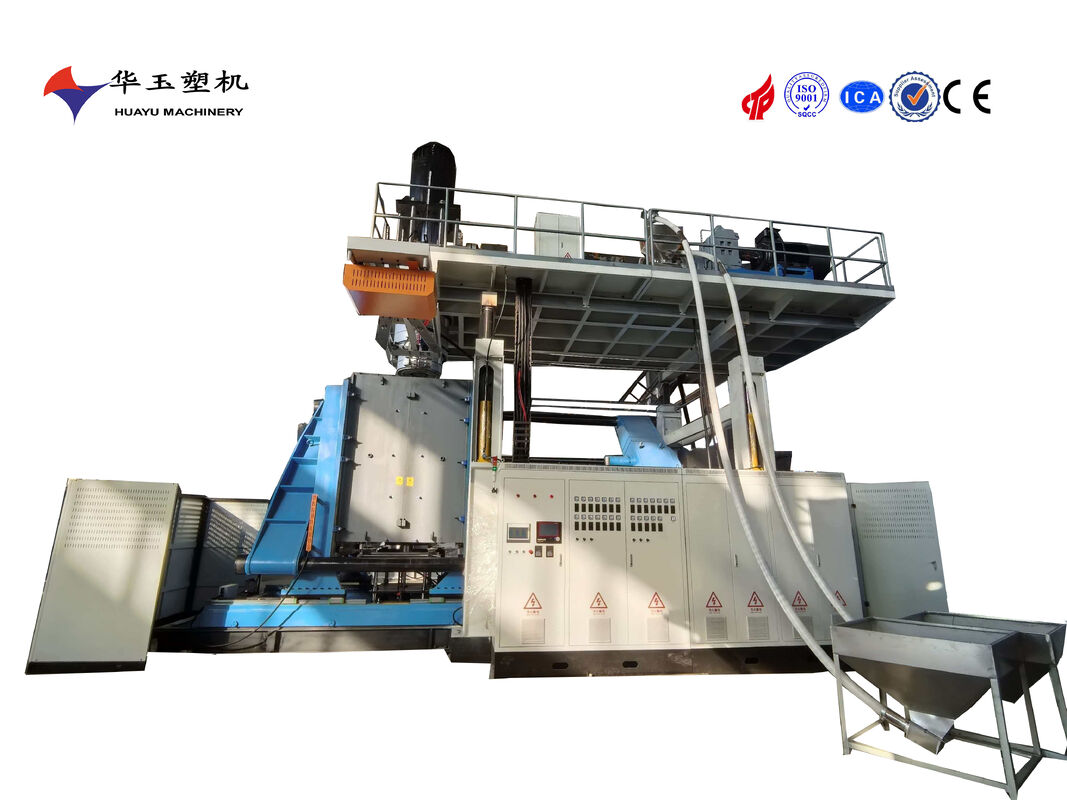

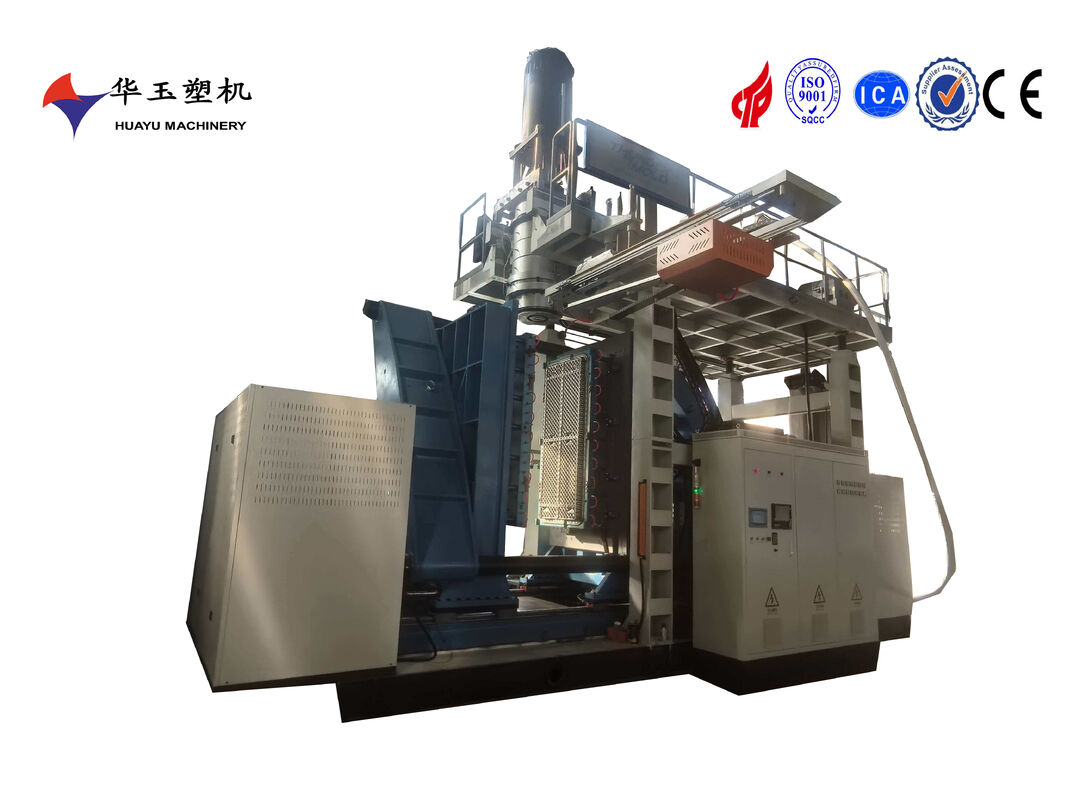

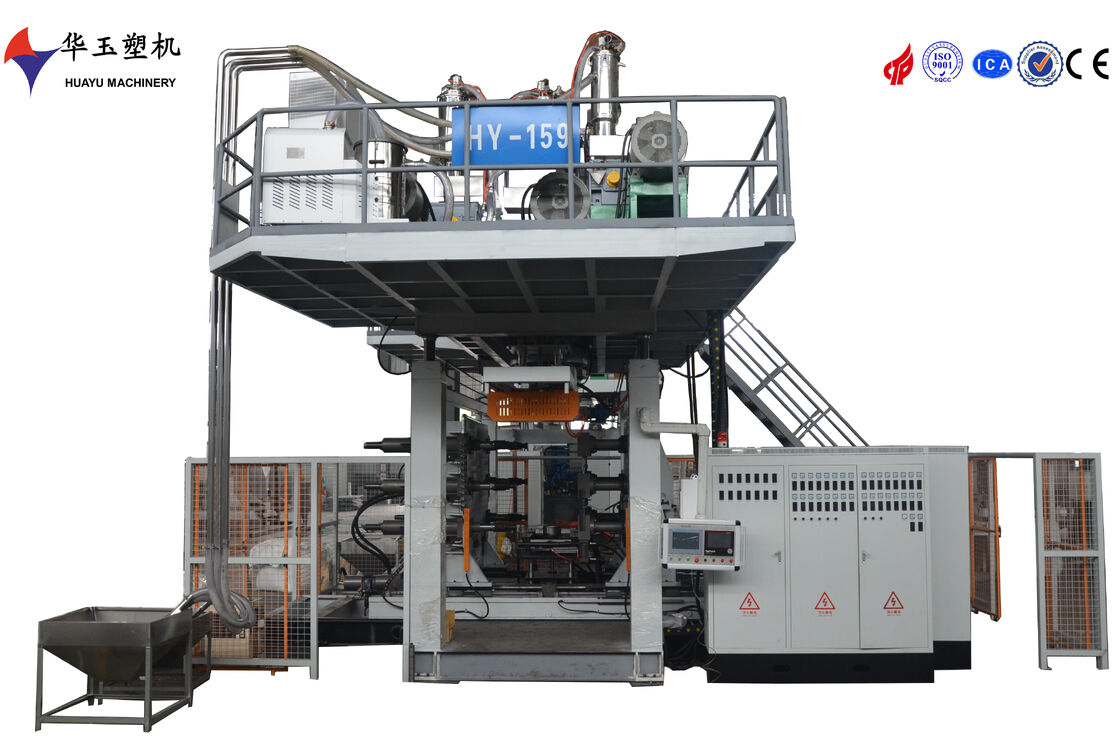

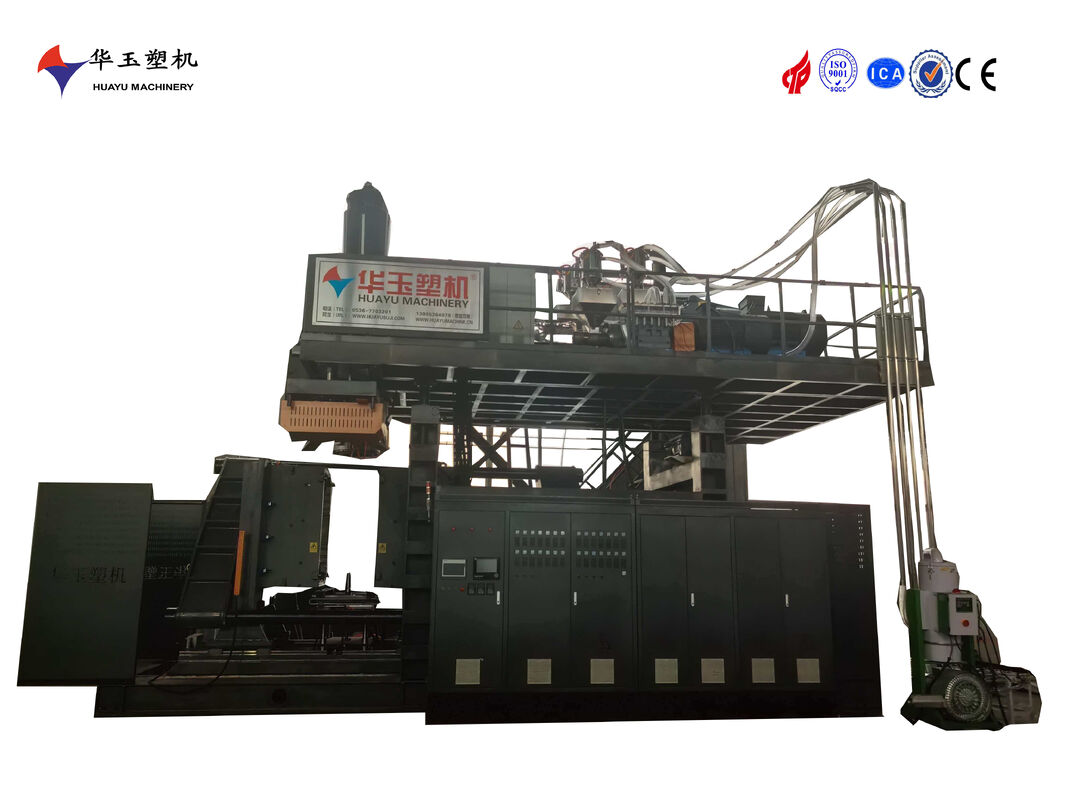

The Versatile Performer: Huayu 1000L 4-Layer Blowing Machine
Step up to advanced functionality and broader market applications with the Weifang Huayu 1000L 4-Layer Co-extrusion Blow Molding Machine. This model represents the sweet spot for manufacturers seeking to produce high-value, technically sophisticated containers without the complexity of maximum-layer systems. It delivers a powerful combination of performance, barrier properties, and cost optimization, making it the versatile choice for demanding industries.
Unlocking Functional Barrier Technology
The 4-layer configuration opens the door to true functional barrier packaging. This structure allows for a dedicated, high-quality inner layer for product compatibility, one or two central layers for strength and cost-saving regrind use, and a critical functional barrier layer (such as EVOH or nylon) to block oxygen or moisture. This capability is transformative, enabling the production of containers for sensitive contents like certain chemicals, edible oils, or products requiring extended shelf life. The Huayu 4-layer system precisely controls these layers, ensuring optimal barrier performance and material distribution.
Precision and Flexibility for Demanding Production
Engineered for precision, this machine features individually controlled extruders for each layer, allowing fine-tuning of throughput and temperature. The advanced parison programming and head design ensure uniform wall thickness distribution even in complex container geometries. The robust clamping unit and advanced PLC with proportional hydraulics guarantee cycle-to-cycle consistency. This flexibility allows manufacturers to quickly switch between different container designs and layer recipes, maximizing production agility to meet diverse customer specifications.
Performance Parameters Table: HY-1000L-4L
| Feature / Parameter | Specification |
|---|---|
| Model | HY-1000L-4L |
| Max. Capacity (L) | 1000 |
| Number of Layers | 4 |
| Screw Diameter (mm) | Custom configured (e.g., 80/100/100/80 mm) |
| L/D Ratio | 30:1 |
| Clamp Force (kN) | 2500 |
| Platen Size (mm) | 1600 x 1300 |
| Max. Mold Daylight (mm) | 1500 |
| Drive System | Servo Motor (Standard) |
| Control System | Advanced PLC with Layer Control & Parison Programming |
| Key Advantages | Functional Barrier Capability, Excellent Regrind Utilization, High Production Flexibility |
Elevate your product line with the versatile and high-performance Huayu 1000L 4-layer co-extrusion machine.
