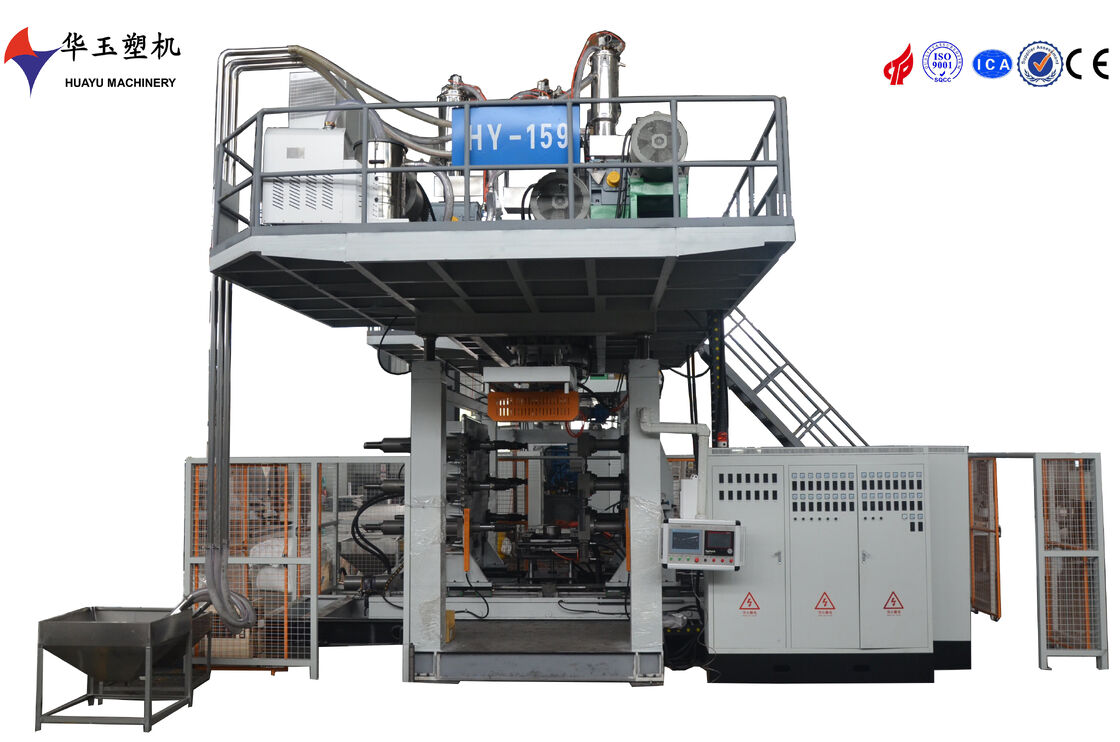

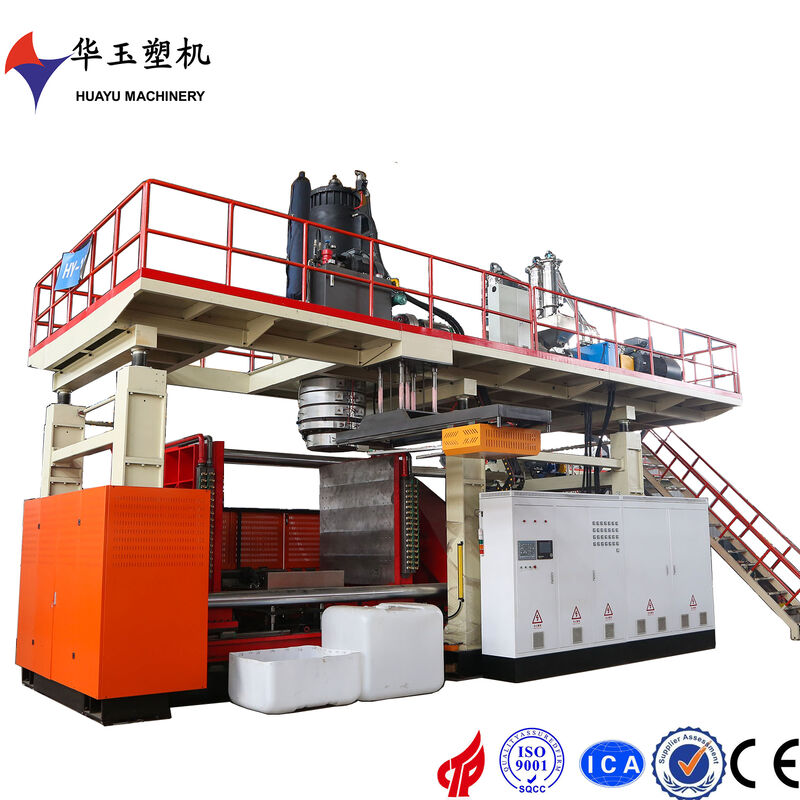

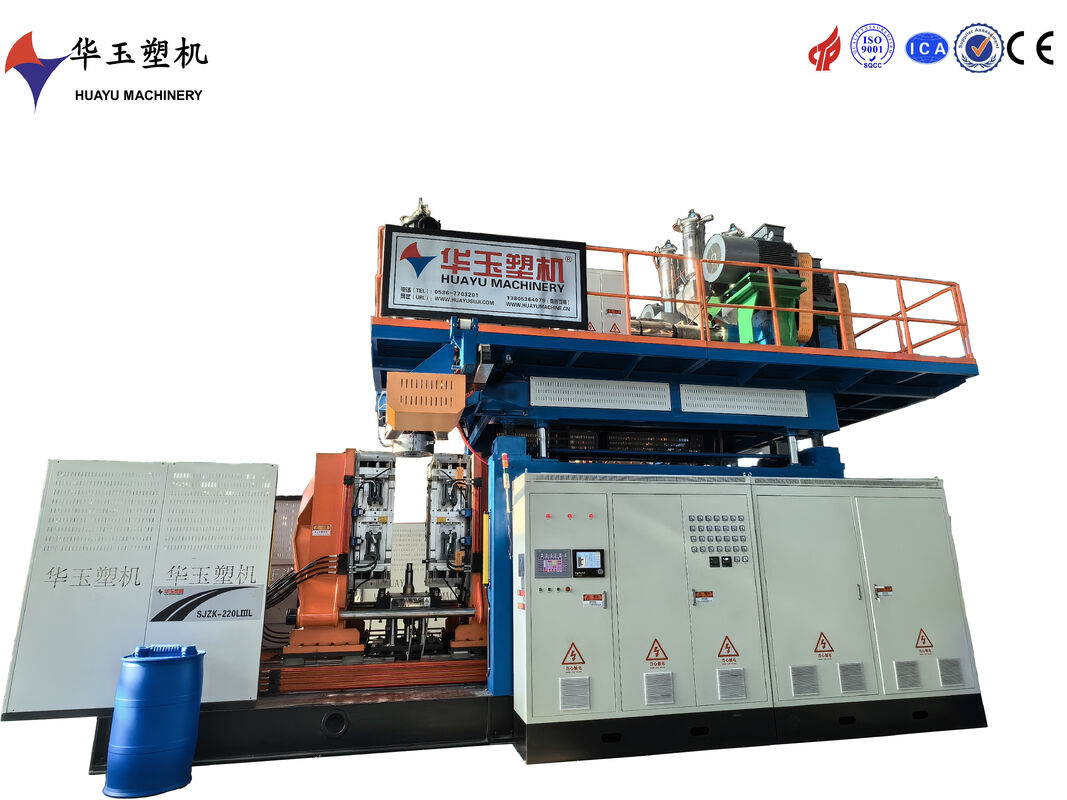

The Pinnacle of Protection: Huayu 1000L 6-Layer Blowing Machine
For the most challenging packaging requirements where ultimate protection, material synergy, and compliance are non-negotiable, Weifang Huayu presents the 1000L 6-Layer Co-extrusion Blow Molding Machine. This top-tier system offers unparalleled design freedom and precision, allowing engineers to create containers with multiple, distinct functional layers to address extreme barriers, complex regulatory standards, and advanced aesthetic demands.
Ultimate Design Freedom for Complex Solutions
The six-layer architecture is the platform for cutting-edge container design. It enables the incorporation of multiple, specialized barriers within a single wall. For instance, one container could combine an oxygen barrier (EVOH), a moisture barrier, a UV barrier, and layers for recycled content—all while maintaining pristine internal and external contact surfaces. This allows for packaging highly sensitive products (like specialty chemicals, premium foods, or pharmaceuticals) that are susceptible to multiple environmental factors. The Huayu 6-layer system provides the ultimate toolset for material scientists and packaging engineers to innovate.
Precision Engineering at Its Finest
This machine represents the height of co-extrusion control technology. It features a sophisticated 6-layer die head engineered for impeccable layer adhesion and interface stability. Each of the six extruders is equipped with high-precision gear pumps and melt pumps to ensure flawless volumetric feeding and eliminate pressure fluctuations between layers. The advanced control system offers exhaustive data logging and SPC (Statistical Process Control) capabilities, ensuring traceability and consistent production of the most complex container specifications. It is built for zero-defect production in high-stakes applications.
Performance Parameters Table: HY-1000L-6L
| Feature / Parameter | Specification |
|---|---|
| Model | HY-1000L-6L |
| Max. Capacity (L) | 1000 |
| Number of Layers | 6 |
| Extruder Configuration | Fully Independent, with Melt Pumps |
| Screw L/D Ratio | 30:1 to 35:1 (Barrier Screws) |
| Clamp Force (kN) | 2800+ |
| Platen Size (mm) | 1700 x 1400 |
| Max. Mold Daylight (mm) | 1500 |
| Drive System | High-Precision Servo with Gear Pumps |
| Control System | Industrial PC with Advanced SPC & Data Management |
| Key Advantages | Maximum Design Freedom, Multi-Barrier Protection, Pharmaceutical-Grade Precision & Control |
Meet the most extreme packaging challenges with the ultimate precision and flexibility of the Huayu 1000L 6-layer co-extrusion system.
