Place of Origin:
China
Brand Name:
Huayu
Certification:
CE, ISO 9001
Model Number:
HYBM-500L

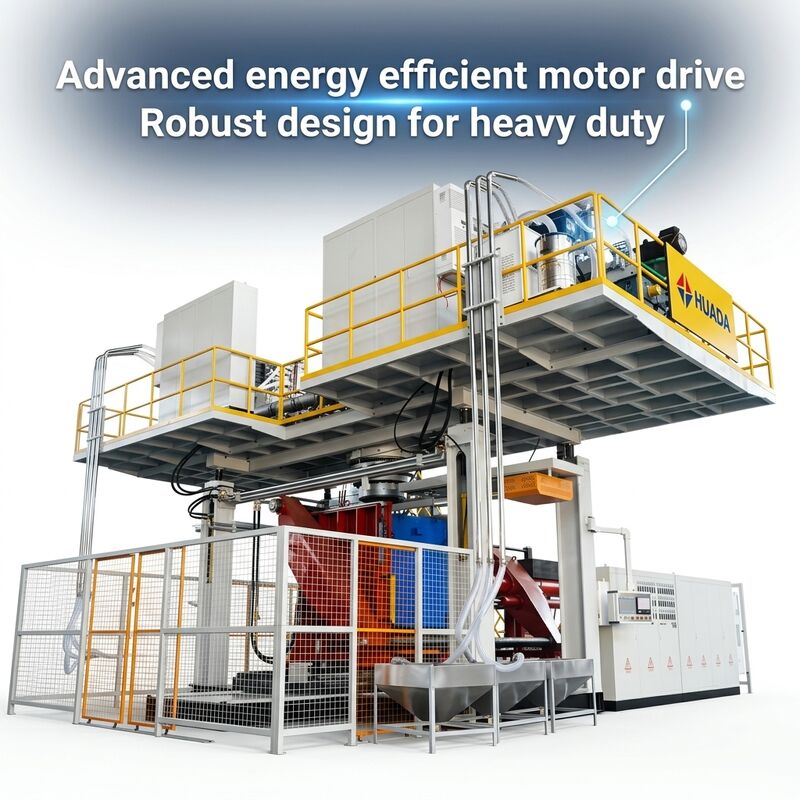

The HYBM-500L is a servo-driven extrusion blow moulding machine specifically engineered for the production of 500-liter water storage tanks. Designed to meet the rigorous demands of municipal water distribution and residential storage applications in hot-climate regions such as the Middle East, GCC countries, and North Africa, this machine combines advanced servo-hydraulic technology with a compact footprint that fits standard industrial facilities.
The integration of a PLC control system ensures consistent parison wall thickness distribution, which is critical for tanks required to withstand internal hydrostatic pressure and prolonged UV exposure. With a documented 30% reduction in energy consumption compared to conventional hydraulic systems, the HYBM-500L addresses the growing global demand for sustainable manufacturing equipment without compromising on output quality or cycle time efficiency.
Technical Specifications| Parameter | Specification |
|---|---|
| Maximum Product Volume | 500 Liters |
| Screw Diameter | 90 mm |
| Screw L/D Ratio | 30:1 |
| Clamping Force | 380 kN |
| Extrusion Capacity (HDPE) | 180 kg/h |
| Plasticizing Capacity | 200 kg/h |
| Drive Motor Power | 45 kW Servo |
| Heating Power | 22 kW |
| Accumulator Head Volume | 8 Liters |
| Mold Platen Size | 900 mm x 750 mm |
| Max Mold Opening Stroke | 550 - 1050 mm |
| Machine Weight | 12,000 kg |
