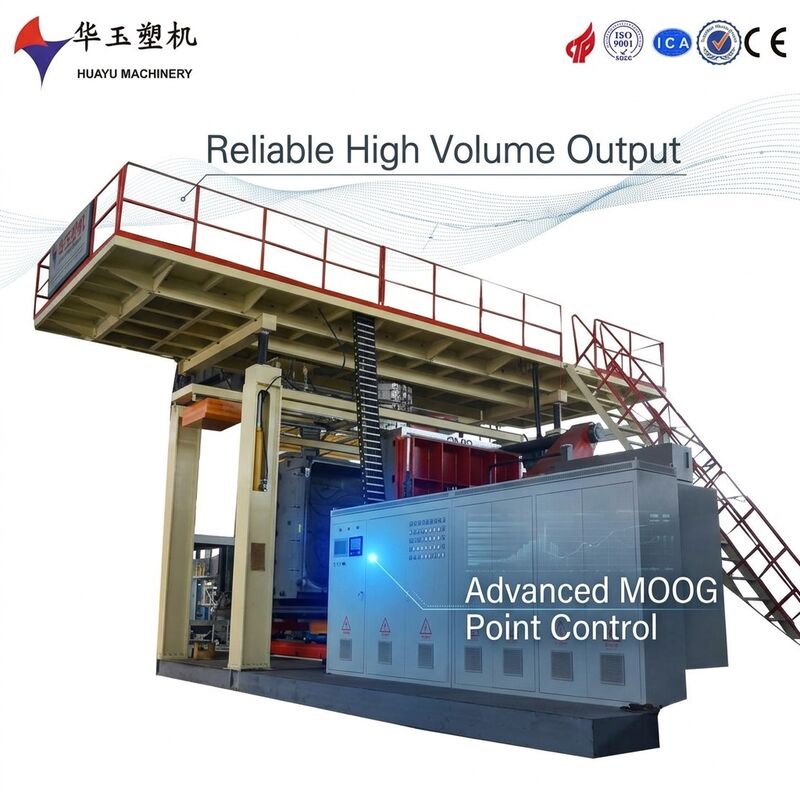

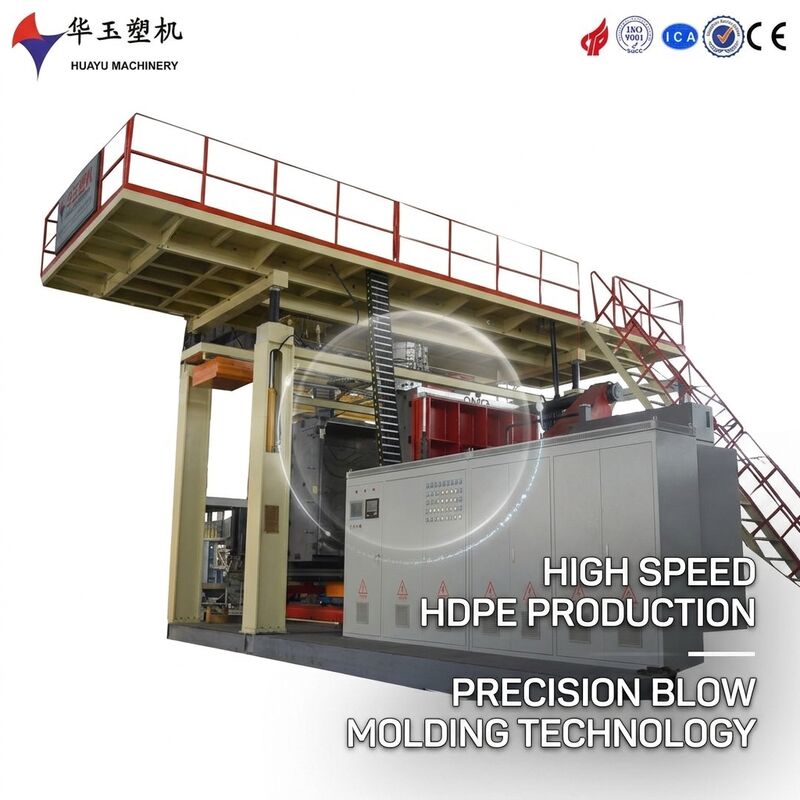

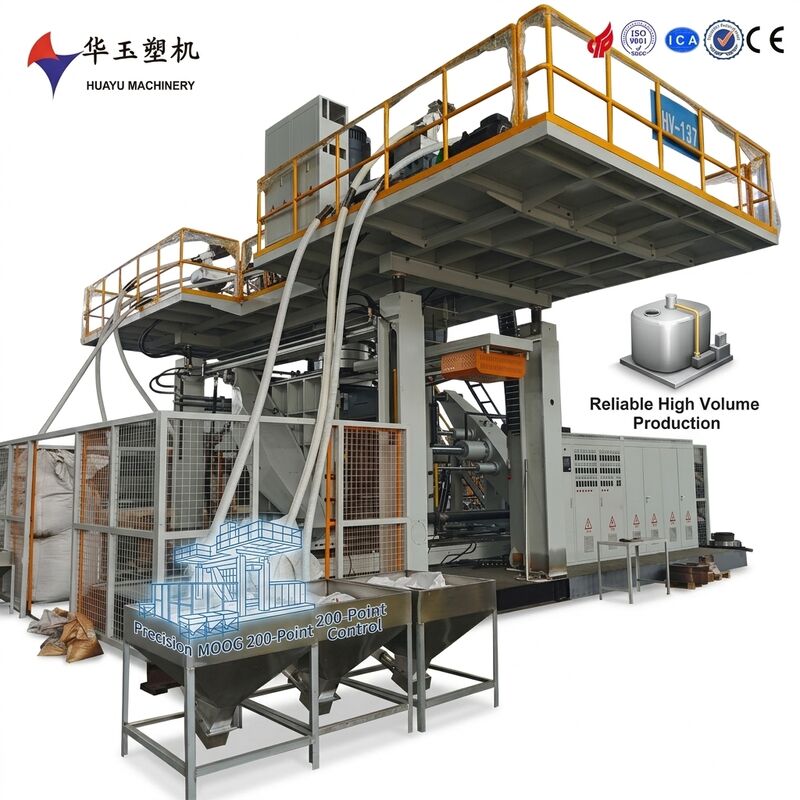

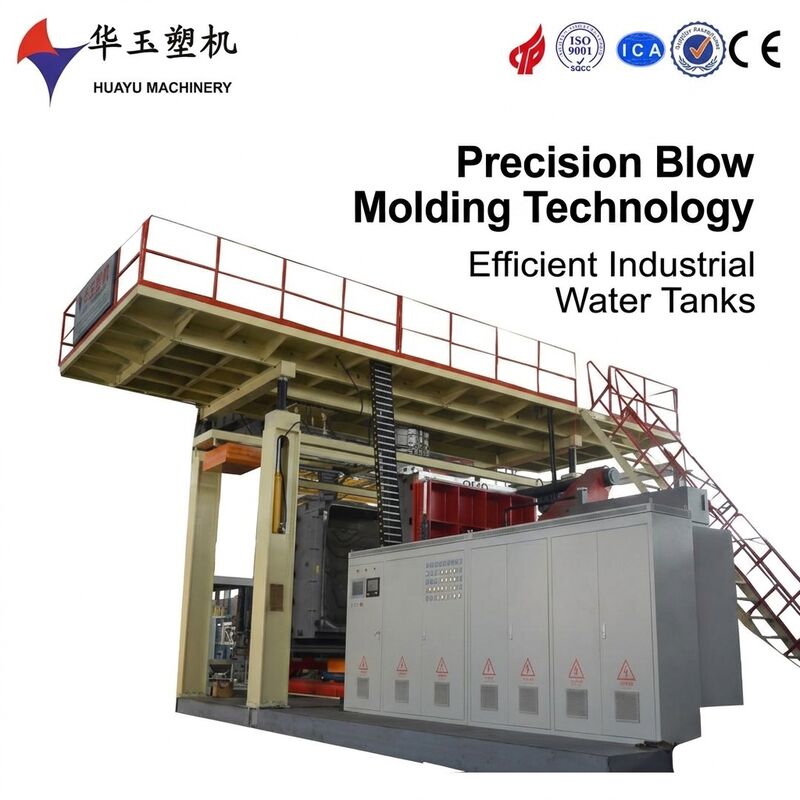

1500L Multi-Layer Co-Extrusion Water Tank Blow Moulding Machine for African Municipal Water Infrastructure

The HYBM-1500ML represents our flagship multi-layer co-extrusion blow moulding machine specifically developed for the production of 1500-liter municipal-grade water storage tanks destined for African infrastructure projects.

This machine incorporates a dual-extruder co-extrusion system where a 120mm main extruder processes virgin HDPE for the inner layer that contacts potable water, while a 55mm secondary extruder processes a recycled-content HDPE outer layer that provides structural rigidity and UV protection.

This architecture enables African tank manufacturers to reduce raw material expenditure by 20% to 30% without any compromise to water quality standards, as the virgin inner layer meets WHO Guidelines for Drinking-water Quality and NSF/ANSI 61 certification requirements.

The machine is designed with particular attention to the logistical and operational realities of Sub-Saharan Africa, including simplified maintenance procedures, widely available spare parts compatibility, and robust construction that withstands voltage fluctuations common in industrial zones from Lagos to Nairobi.

• Proven Multi-Layer Co-Extrusion: The independently controlled dual-extruder system with synchronized parison programming enables precise layer ratio control from 70:30 to 90:10 (inner:outer), validated through cross-sectional microscopy analysis of production samples. This technology reduces raw material costs by 20-30% while maintaining full potable water compliance for the product contact surface.
• WHO-Compliant Water Contact Layer: The inner layer extrusion circuit features 316L stainless steel construction for all melt-contact surfaces, polished to Ra ≤ 0.8μm surface finish with continuous nitrogen purging to prevent oxidative degradation. Tanks produced with certified virgin HDPE grades consistently pass migration testing per EU Regulation 10/2011 and FDA 21 CFR for food-contact applications.
• Voltage Fluctuation Resilience: The electrical system incorporates an automatic voltage regulator with a ±25% input tolerance and 3-phase imbalance protection, enabling stable operation in African industrial zones where grid voltage can fluctuate between 320V and 440V. All control electronics are protected by industrial-grade surge suppression devices rated for 40kA discharge current.
• Simplified Maintenance Architecture: All routine maintenance points including hydraulic filters, lubrication nipples, heater band connections, and thermocouple access ports are positioned at waist height and accessible without removing guarding. The hydraulic power unit uses ISO VG 46 mineral oil, a globally available grade stocked by lubricant distributors in every major African industrial center.
• Extended Mold Life Design: The mold clamping system incorporates progressive pressure ramping during mold closure and opening sequences, reducing impact loads on mold guide pillars and alignment bushings by an estimated 40%. Mold service life is extended to over 500,000 cycles before requiring guide component replacement.
