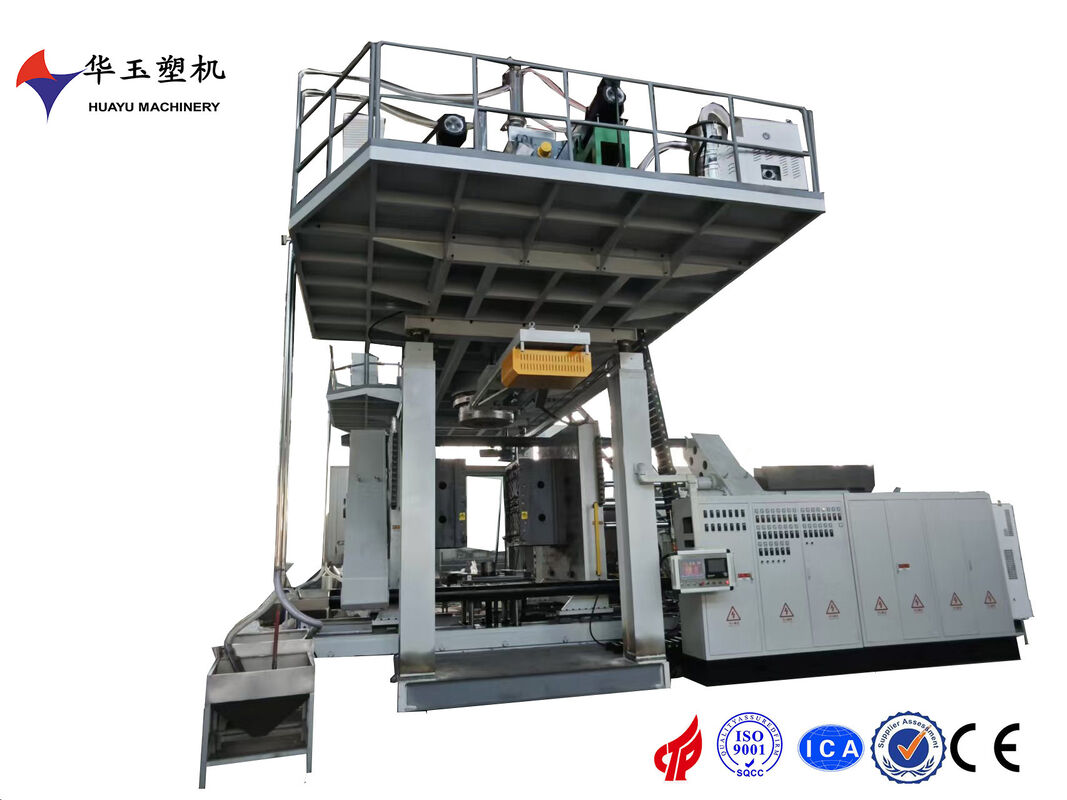

Name: 1000L Six-Layer Co-Extrusion Blow Molding Machine
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-1006
Price: 410,090.00 USD
Availability: InStock

Home > Products > IBC Blow Moulding Machine >

1000L Six-Layer Co-Extrusion Blow Molding Machine

1000L IBC blow molding machine

six-layer co-extrusion blow molding machine

industrial blow molding machine with warranty

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-1006

Chat Now

Request A Quote

Product Details

Condition:

New

Hopper Materail:

Stainless Steel

Cooling Water Consumption:

0.3Mpa*20degree*30per Hour

Automationlevel:

Semi-automatic / Fully Automatic

Feeder Type:

Vacuum Feeder

Clampingforce:

50-200 Tons

Screw Diameter:

90mm*2

Applicable Material:

HDPE

Extrudor Motor:

37kw*6

Production Capacity:

200-1000L

Controller:

PLC+Touch Screen

Average Consumption:

250KW

Screw Material:

38 CrMoAIA, Nitriding

Structual Style:

Huayu Patent Technology 2 Layers

Total Power:

390kw

Highlight:

1000L IBC blow molding machine

six-layer co-extrusion blow molding machine

industrial blow molding machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiate

Packaging Details

by container

Delivery Time

4 months

Payment Terms

L/C,T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-152-6568-7399

padraic@huayumachine.cn

86-0536-770-9997

Chat Now

Product Description

The core advantage of the six-layer structure is the dual-barrier enhanced design. Compared with the single barrier layer of five-layer equipment, the six-layer configuration adopts double independent barrier layers with different functional characteristics, which can resist the penetration of different chemical media at the same time, solving the problem of single barrier material’s limited adaptability.

The multi-layer transition bonding structure makes the lamination between functional layers tighter, effectively resisting layer separation caused by high temperature, low temperature and chemical erosion. Each layer realizes refined division of labor: outer anti-aging protective layer, multi-stage transition bonding layer, dual composite barrier layer, and inner high-purity anti-corrosion layer, greatly improving the container’s extreme environmental adaptability.

The equipment is equipped with a six-channel synchronous split-flow die head and intelligent layered pressure regulation system, achieving micron-level layer thickness control accuracy. The multi-group independent plasticization system adapts to the synchronous processing of multiple special resins, ensuring stable material performance. The intelligent constant-pressure cooling and shaping system effectively eliminates internal stress of large containers and improves product dimensional stability and durability.

The core technical parameters of the 1000L six-layer co-extrusion blow molding machine are listed below:

Technical Item	Parameter Value	Unit
Maximum Product Volume	1000	L
Screw Specification	85*6	mm
Total Plasticizing Capacity	450-550	kg/h
Dry Cycle Efficiency	160	Pc/h
Single Extruder Power	37	kW

In industrial application, the six-layer blow molding machine is mainly used for special chemical containers, high-temperature resistant storage tanks and sterile medical packaging barrels. Its comprehensive performance is far superior to five-layer equipment, capable of long-term stable storage of highly corrosive and special media. Although the equipment investment is higher, its ultra-high barrier performance and long service life make it the core equipment for special high-end industrial container production.
