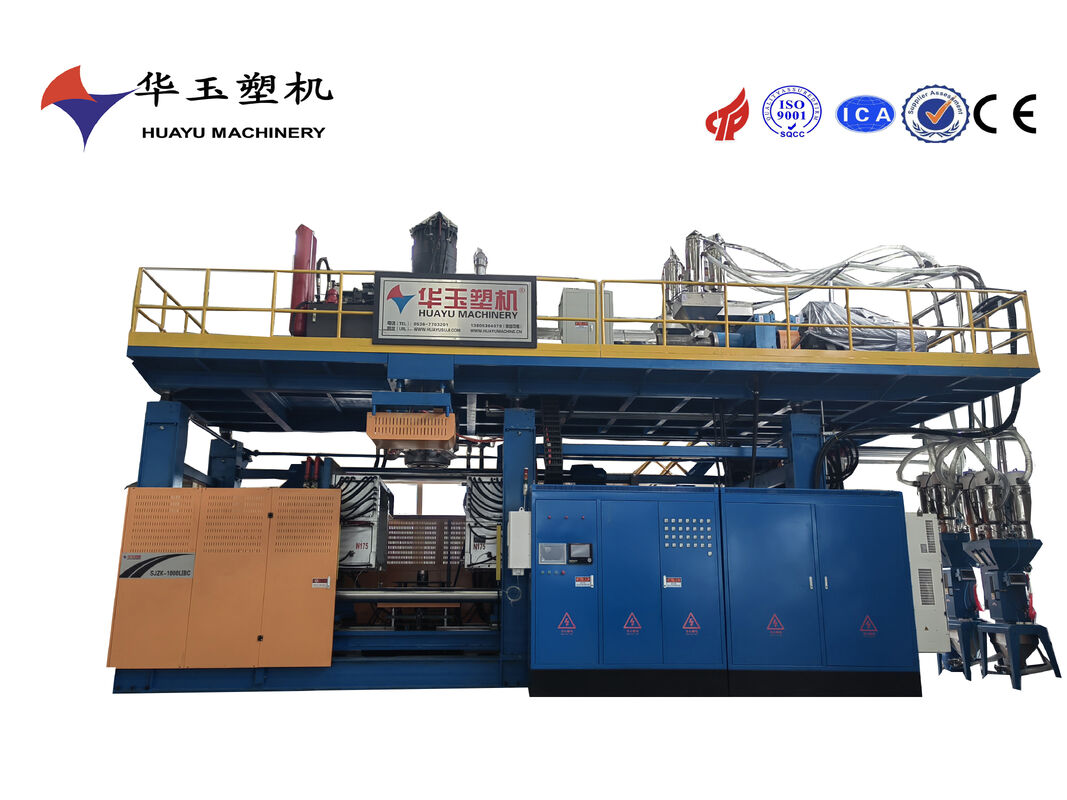

Name: 1000L 12-Layer Co-Extrusion Blow Molding Machine
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-1000-12
Price: 410,090.00 USD
Availability: InStock

Home > Products > IBC Blow Moulding Machine >

1000L 12-Layer Co-Extrusion Blow Molding Machine

1000L IBC blow moulding machine

12-layer co-extrusion blow molding machine

industrial blow molding machine with warranty

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-1000-12

Chat Now

Request A Quote

Product Details

Output:

700KG/H

Hopper Materail:

Stainless Steel

Nce Between Platens:

900-2400mm

Screw Barrel Material:

38CrMoAlA，Nitriding

Materail:

HDPE

Warranty:

12 Months

Blow Moulding Type:

Extrusion Blow Moulding

Total Power:

390kw

Productname:

IBC Blow Moulding Machine

Material Compatibility:

HDPE

Plasticizing Capacity:

350kg/h

Bucket Thickness:

Not Very Thick

Heatingsystem:

Electric Heating

Heating System:

Electric Heating

Highlight:

1000L IBC blow moulding machine

12-layer co-extrusion blow molding machine

industrial blow molding machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiate

Packaging Details

by container

Delivery Time

4 months

Payment Terms

L/C,T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-152-6568-7399

padraic@huayumachine.cn

86-0536-770-9997

Chat Now

Product Description

The 1000L 12-layer co-extrusion blow molding machine is an ultra-high-end precision molding device for special industrial packaging. Adopting twelve independent extruders and multi-channel synchronous co-extrusion technology, it realizes ultra-fine functional layered molding for 1000L large containers. It is mainly used for ultra-pure chemical reagents, high-grade pharmaceutical intermediates and special corrosive medium storage, meeting the most stringent industrial barrier standards.

The 12-layer composite structure adopts multi-stage gradient protection design. Multiple groups of independent high-barrier layers form an all-round anti-permeation system to block oxygen, water vapor and organic solvent penetration. Multi-layer adhesive transition structures ensure zero delamination and improve long-term structural stability. The outer multi-protection layers enhance weather resistance and mechanical strength, while the inner high-purity functional layers meet ultra-clean storage requirements. Compared with 10-layer models, it adds refined functional layers to solve the packaging points of special composite media.

Equipped with industrial-grade ultra-precision die head and full servo synchronous control system, the machine achieves micron-level layer thickness accuracy and stable layer ratio. The multi-group independent plasticization system adapts to synchronous processing of various high-end special resins without material performance loss. The intelligent constant temperature and pressure cooling system eliminates internal stress and ensures high dimensional stability of finished products.

Core technical parameters are shown in the table below:

Technical Item	Parameter Value	Unit
Maximum Product Volume	1000	L
Screw Specification	70*12	mm
Total Plasticizing Capacity	400-480	kg/h
Dry Cycle Efficiency	145	Pc/h
Single Extruder Power	28	kW

This 12-layer equipment is exclusive to high-end special chemical and biomedical industries. With ultra-high barrier performance and stable quality, it fills the gap of ultra-precision container molding and becomes core equipment for high-standard special material packaging.
