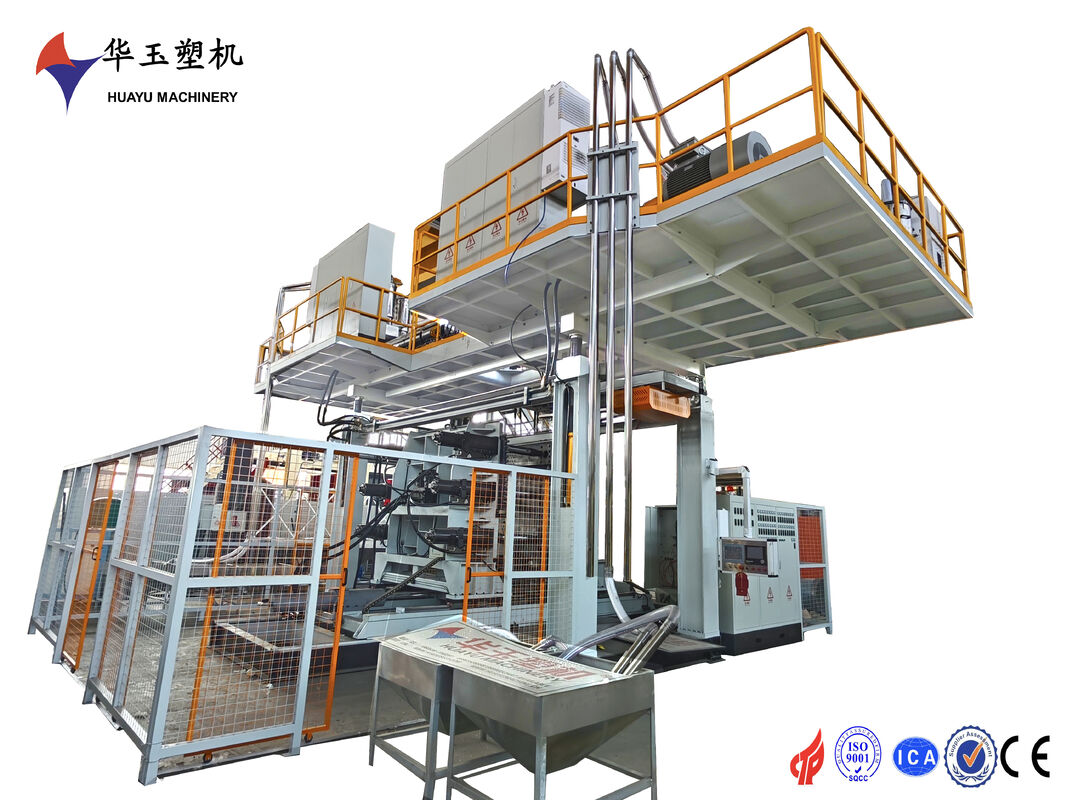

Name: 2000L 10-Layer Co-Extrusion Blow Molding Machine
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-2000L-10
Price: 410,090.00 USD
Availability: InStock

Home > Products > IBC Blow Moulding Machine >

2000L 10-Layer Co-Extrusion Blow Molding Machine

2000L IBC blow molding machine

10-layer co-extrusion blow molding machine

industrial blow moulding machine with warranty

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-2000L-10

Chat Now

Request A Quote

Product Details

Powersupply:

380V, 50Hz, 3 Phase

Feeding Type:

Vacuum Loaded

Productivity:

15pcs/h

Application:

5000L

Machine Type:

High Speed Plastic Bottle Making Machine

Applicable Material:

HDPE

Cleaning Method:

Easy Cleaning

Dimension:

8.5*9.5*7

Blow Moulding Type:

Extrusion Blow Moulding

Hopper Materail:

Stainless Steel

Screw Diameter:

90mm*2

Nce Between Platens:

900-2400mm

Servo Motor:

48KW

Average Consumption:

190KW

Highlight:

2000L IBC blow molding machine

10-layer co-extrusion blow molding machine

industrial blow moulding machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiate

Packaging Details

by container

Delivery Time

4 months

Payment Terms

L/C,T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-152-6568-7399

padraic@huayumachine.cn

86-0536-770-9997

Chat Now

Product Description

The 2000L 10-layer co-extrusion blow molding machine is a large-capacity high-end barrier molding device. It adopts ten-extruder synchronous co-extrusion technology to produce 2000L ultra-high barrier large storage containers. It is mainly used for large-volume storage of high-purity chemicals, pharmaceutical raw materials and industrial corrosive media, suitable for large-scale industrial production scenarios.

The ten-layer composite structure realizes multi-functional integrated protection. Multi-group high-efficiency barrier layers form a three-dimensional anti-permeation system to prevent gas and liquid medium leakage and volatilization. Multi-stage adhesive layers ensure tight lamination of each functional layer and improve structural stability under long-term load. The outer thickened protective layer enhances mechanical strength and pressure resistance, adapting to large-volume container bearing and transportation requirements. The inner high-purity layer meets high-standard material storage safety.

Equipped with large-spec ten-layer stacked die head and full servo linkage system, the machine accurately controls the layer ratio and wall thickness of large-capacity containers. The high-power independent plasticization system ensures sufficient and uniform melting of high-performance resins. The circulating constant-pressure cooling system effectively eliminates internal stress of large containers and improves overall rigidity and durability.

Core technical parameters are shown in the table below:

Technical Item	Parameter Value	Unit
Maximum Product Volume	2000	L
Screw Specification	80*10	mm
Total Plasticizing Capacity	480-560	kg/h
Dry Cycle Efficiency	130	Pc/h
Single Extruder Power	32	kW

This 2000L 10-layer equipment balances large-capacity molding stability and ultra-high barrier performance. It solves the problem of insufficient barrier of traditional large containers and becomes the preferred equipment for high-standard large-volume industrial storage container production.
