Name: 2000L Double-Layer Co-Extrusion Blow Molding Machine
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM-2000L-2
Price: 410,090.00 USD
Availability: InStock

Home > Products > IBC Blow Moulding Machine >

2000L Double-Layer Co-Extrusion Blow Molding Machine

2000L double-layer blow molding machine

co-extrusion IBC blow moulding machine

double-layer blow molding machine with warranty

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-2000L-2

Chat Now

Request A Quote

Product Details

Feeding Type:

Spring Loaded

Mouldcavity:

1-4 Cavities

Maxcontainervolume:

1000 Liters

Total Power:

390kw

Hopper Materail:

Stainless Steel

Advantages:

20 Years Experiences

Mouldmaterial:

Aluminum Alloy

Screw Material:

38 CrMoAIA, Nitriding

Maximum Air Pressure:

0.8Mpa

Cycle Time:

30-60 Seconds

Mouldcavities:

1-4 Cavities

Platen Size:

1200*1200

Cooling Water Consumption:

0.3Mpa*20degree*30per Hour

Color:

Customied

Highlight:

2000L double-layer blow molding machine

co-extrusion IBC blow moulding machine

double-layer blow molding machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiate

Packaging Details

by container

Delivery Time

120 Days

Payment Terms

L/C,T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-152-6568-7399

padraic@huayumachine.cn

86-0536-770-9997

Chat Now

Product Description

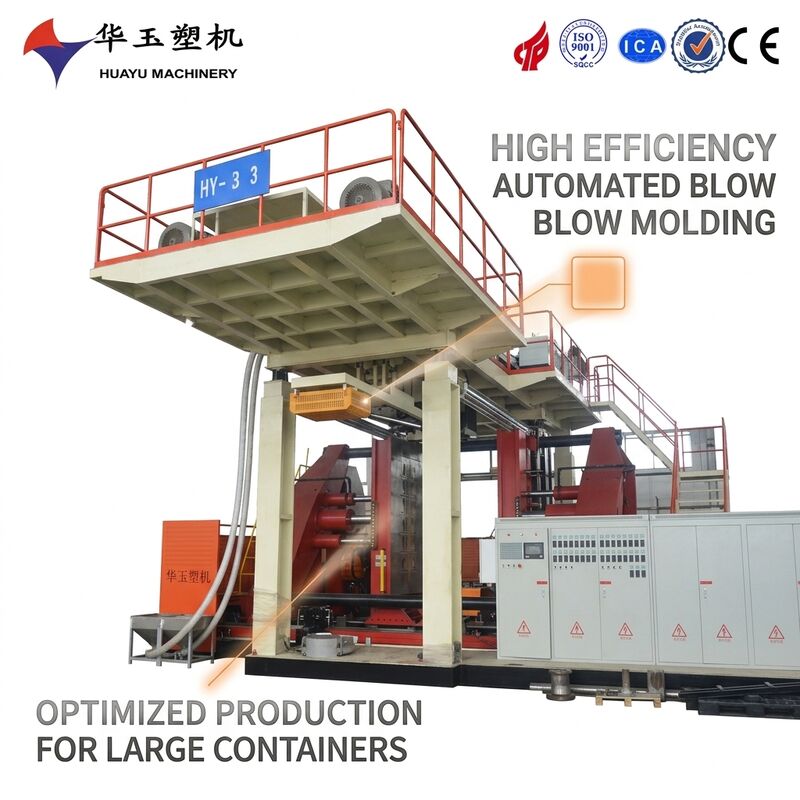

The 2000L double-layer co-extrusion blow molding machine is an upgraded version of single-layer large-capacity equipment. It adopts dual-extruder co-extrusion technology to form outer protective layer and inner functional layer composite structure for 2000L large containers. It makes up for the single performance defect of single-layer products and is suitable for medium-standard anti-corrosion and anti-aging large container production.

The double-layer structure realizes functional differentiation. The outer layer uses high-toughness HDPE material to enhance impact resistance, wear resistance and outdoor anti-aging performance, adapting to complex transportation and stacking environments. The inner layer adopts anti-corrosion and sanitary resin materials to store weak acid, weak alkali and daily chemical materials safely. Compared with single-layer equipment, it greatly improves product practicability and service life with moderate cost growth.

Equipped with dual-channel synchronous die head and independent servo control system, the machine realizes stable layer ratio and uniform wall thickness of large containers. The dual independent plasticization system ensures synchronous and uniform melting of two different materials. The fully automatic intelligent production system maintains high production efficiency while improving product quality, with low defective rate and stable batch consistency.

Core technical parameters are shown in the table below:

Technical Item	Parameter Value	Unit
Maximum Product Volume	2000	L
Screw Specification	120*2	mm
Total Plasticizing Capacity	580-680	kg/h
Dry Cycle Efficiency	135	Pc/h
Single Extruder Power	55	kW

This double-layer equipment balances cost and performance perfectly. It is widely used in medium-standard industrial chemical storage, large-scale civil water tanks and agricultural material storage, becoming the mainstream upgraded model of 2000L large container production.
