Huayu Heavy‑Duty 3000L 3‑Layer Enlarged‑Mold Accumulator Blow Molding Machine

Huayu Heavy‑Duty 3000L 3‑Layer Enlarged‑Mold Accumulator Blow Molding Machine

Huayu heavy-duty accumulator blow molding machine

3000L enlarged-mold blow molding machine

3-layer water tank blow moulding machine

Place of Origin:

CHINA

Brand Name:

HUAYU

Certification:

CE,ISO9001,AAA

Model Number:

HYBM3003(Horizontal)

Chat Now
Request A Quote
Huayu Heavy‑Duty 3000L 3‑Layer Enlarged‑Mold Accumulator Blow Molding Machine
Huayu Heavy‑Duty 3000L 3‑Layer Enlarged‑Mold Accumulator Blow Molding Machine Huayu Heavy‑Duty 3000L 3‑Layer Enlarged‑Mold Accumulator Blow Molding Machine Huayu Heavy‑Duty 3000L 3‑Layer Enlarged‑Mold Accumulator Blow Molding Machine Huayu Heavy‑Duty 3000L 3‑Layer Enlarged‑Mold Accumulator Blow Molding Machine Huayu Heavy‑Duty 3000L 3‑Layer Enlarged‑Mold Accumulator Blow Molding Machine
Product Details
Cleaning Method:
Easy Cleaning
Maxcontainervolume:
750-3000 Liters
Automation Level:
Fully Automatic
Controlsystem:
PLC With Touch Screen
Advantages:
Over 20 Years Experiences
Main Operation Panel:
Touch Screen 12"
Screw Barrel Material:
38CrMoAlA，Nitriding
Powersupply:
Customized
Mould Material:
Aluminum
Feeder Type:
Vacuum Feeder
Average Aonsumption:
330KW
Clamping Force:
2000KN
Power Supply:
Customized
Highlight:

Huayu heavy-duty accumulator blow molding machine

,

3000L enlarged-mold blow molding machine

,

3-layer water tank blow moulding machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
340000
Packaging Details
As per customers request
Delivery Time
120days
Payment Terms
L/C,T/T
Supply Ability
1set/4months
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

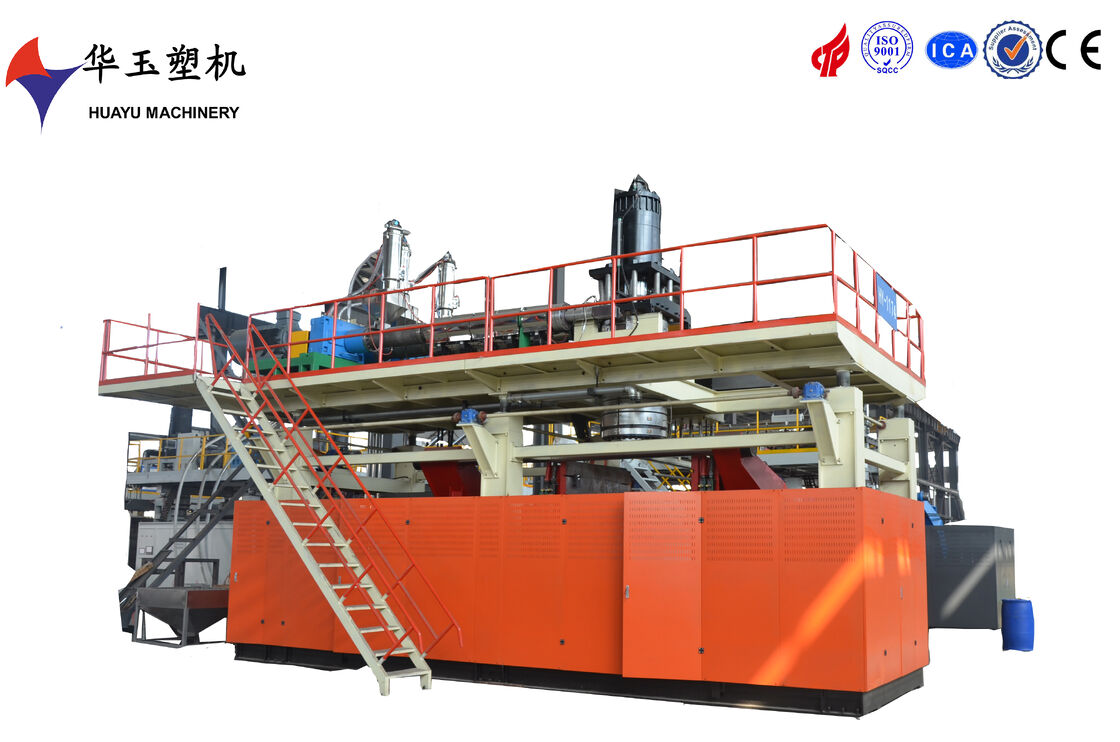

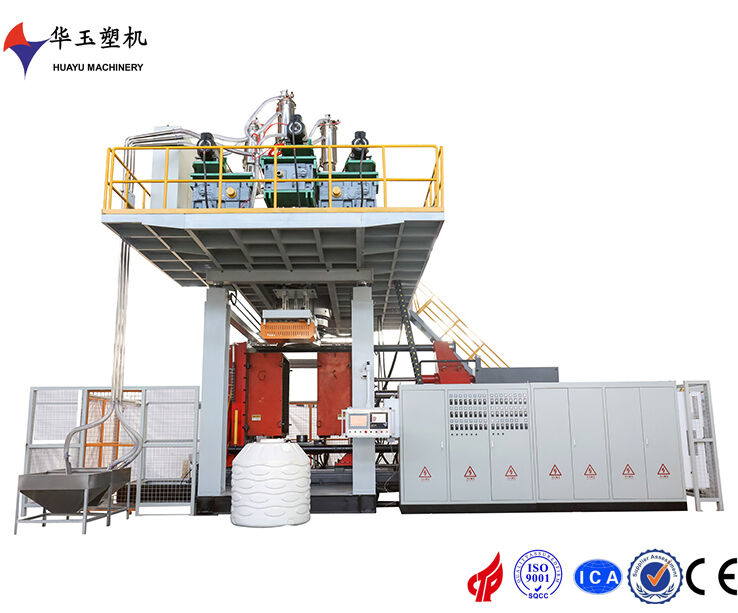

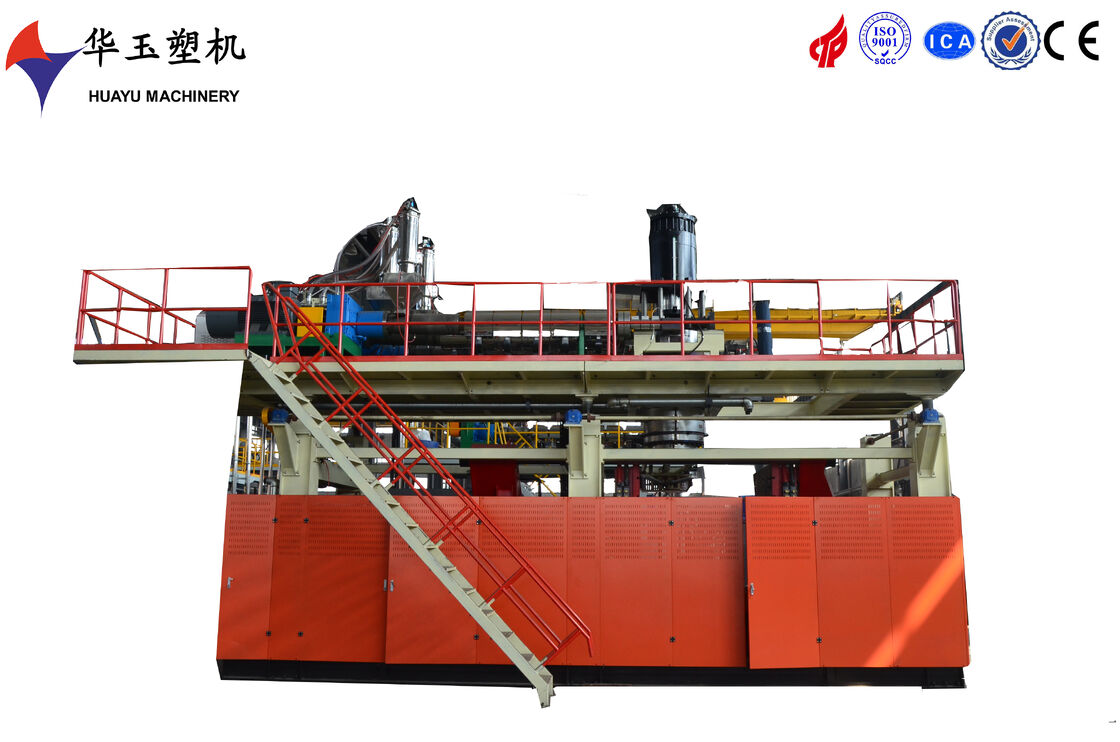

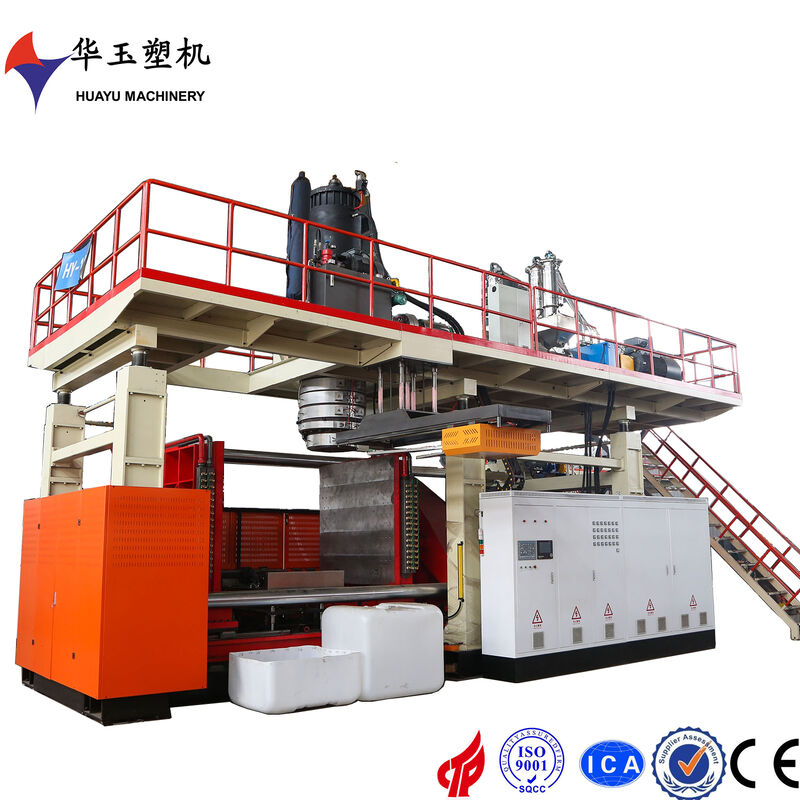

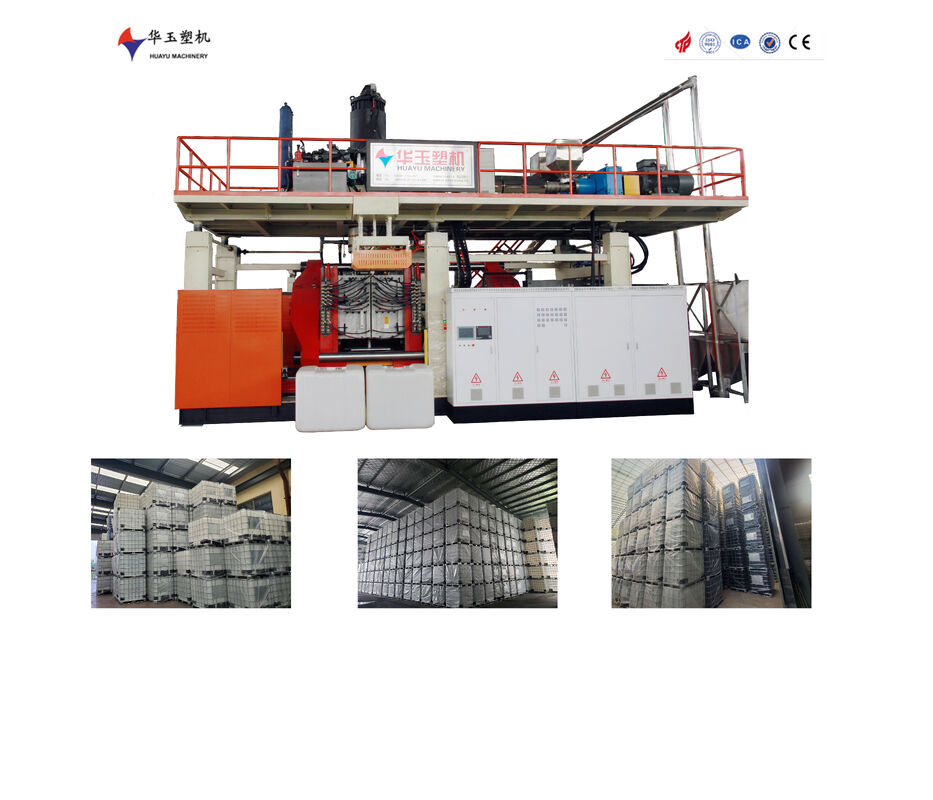

Huayu heavy‑duty 3000L 3‑layer enlarged‑mold accumulator blow molding machine adopts enlarged mold clamping structure for larger forming dimension. Equipped with mature three‑layer co‑extrusion die‑head, independent layer thickness adjustment, high‑precision parison wall‑thickness control and energy‑saving servo‑hydraulic system. The robust machine runs continuously with high stability and low failure rate. It produces high‑strength multi‑layer HDPE water tanks and chemical containers, supporting UV‑resistant outer layer, recycled‑material middle layer and food‑grade inner layer. Customized molds, overseas installation guidance and long‑term spare‑parts supply are available.
Applicable material HDPE
Voltage Pending
Total power 545kw
Average 330kw
Productivity 8-20pcs/h
Capacity range 750-3000L,3Layers
