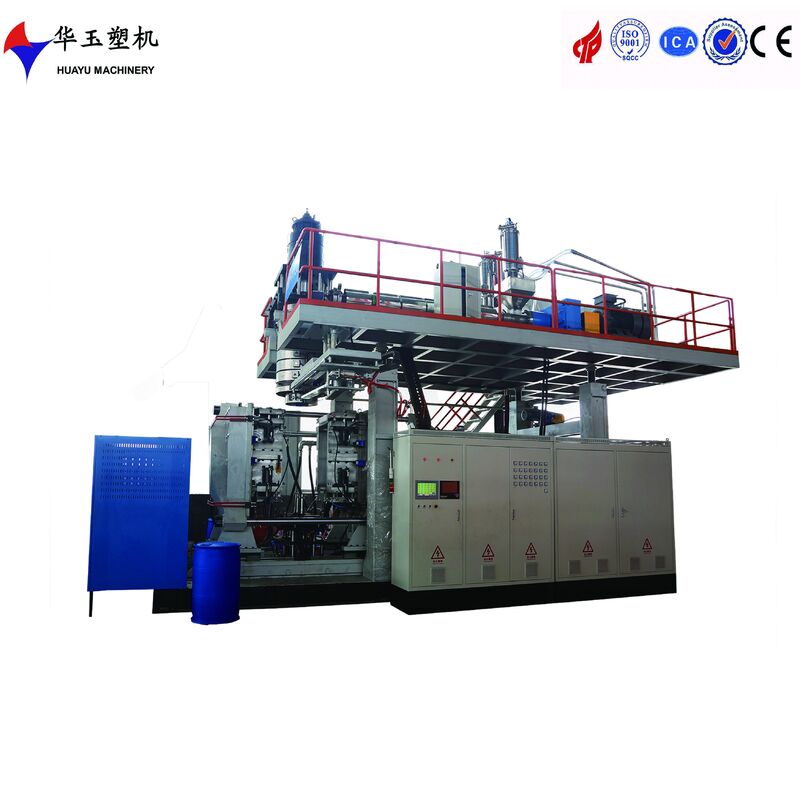

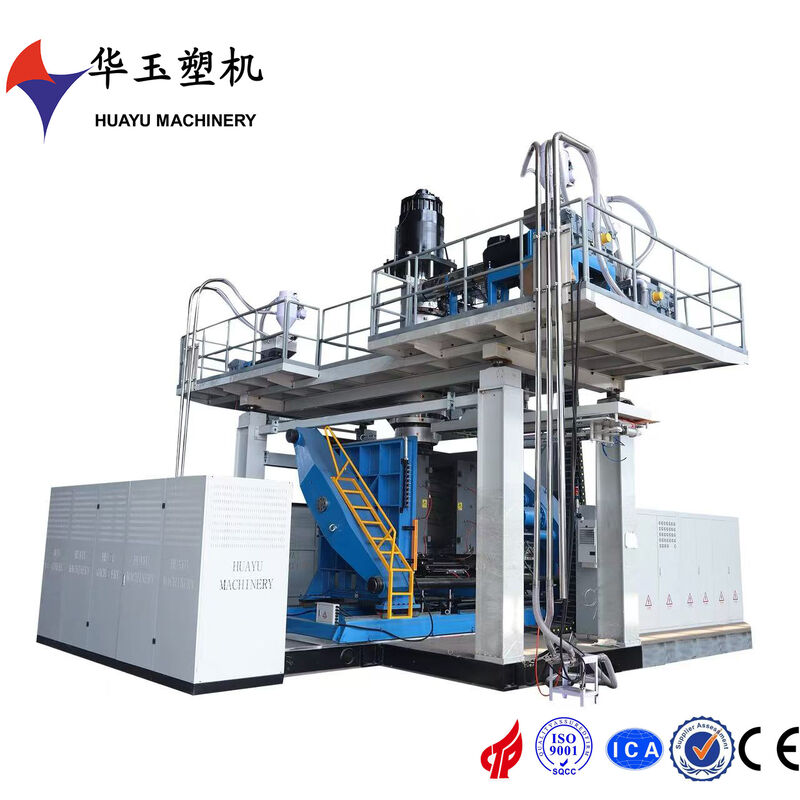

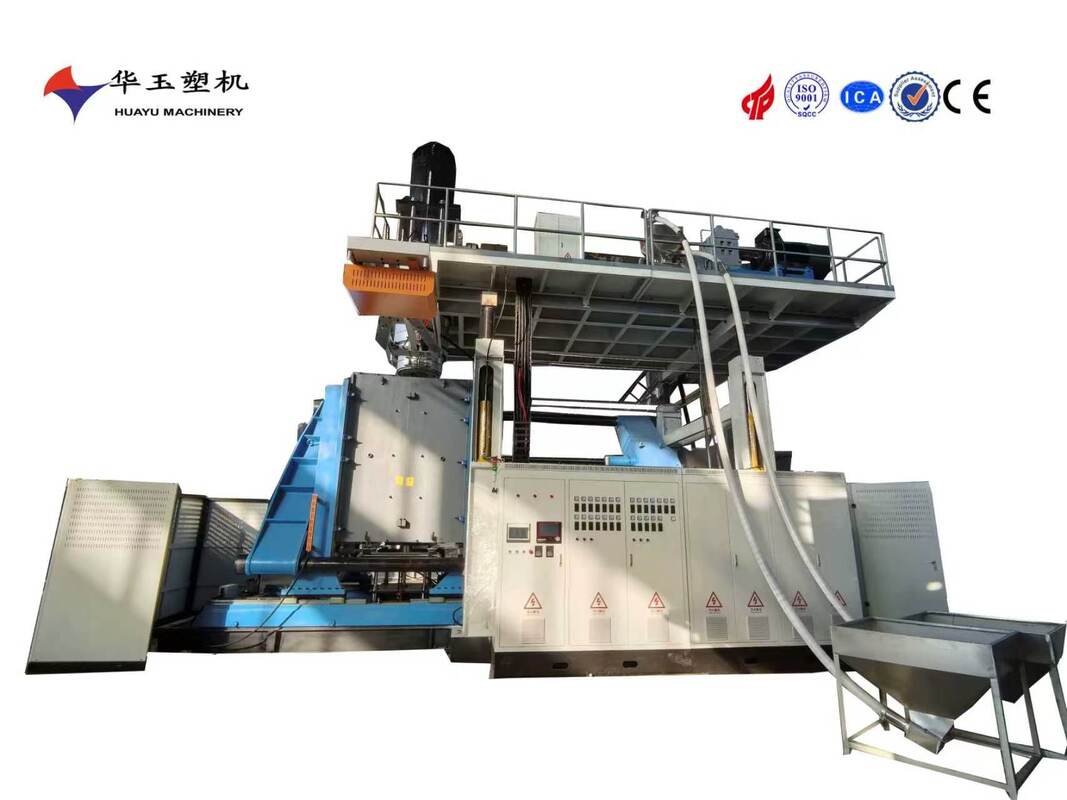

2200L Fully Automatic 4-Layer Co-Extrusion IBC Blow Moulding Machine for HDPE Large Hollow Container Extrusion Blow Molding

This Huayu 2200L 4-layer co-extrusion blow molding machine is specially engineered for manufacturing large hollow plastic containers, widely used to produce HDPE chemical tanks, water storage tanks and other heavy-duty packaging vessels with high barrier requirements. It belongs to our mature HYBM series and integrates four-layer co-extrusion technology to deliver superior product performance compared with single or double-layer blow molding equipment.

The four-layer co-extrusion structure is the core highlight of this model. Different functional materials can be compounded in one molding cycle. Customers can configure barrier resin, adhesive layer and structural HDPE layer according to their actual product needs. The finished tank gains excellent resistance against chemical solvents, ultraviolet rays and moisture permeation. It greatly extends the service life of plastic containers used in chemical, environmental protection, water treatment and agriculture industries. Products made on this machine can meet strict packaging standards for liquid chemicals and long-term outdoor storage scenarios.

This machine adopts fully automatic operation workflow from material feeding, plasticizing, parison extrusion, mold clamping, blowing, cooling to part ejection. The whole forming process runs continuously with minimal manual intervention. Equipped with an intelligent wall thickness control system, it precisely adjusts the parison thickness in real time along the whole contour of the container. It effectively avoids uneven wall thickness, reduces raw material waste and guarantees consistent weight and mechanical strength for every molded tank. The wall thickness control module supports multi-point curve setting and data storage for different mold specifications.

For the plasticizing system, each of the four independent extruders is optimized for stable melting and homogeneous plasticization. The screw and barrel are made of wear-resistant alloy material, featuring long service life and good corrosion resistance. The plastic melt keeps stable temperature and uniform fluidity, which eliminates issues like material streaks, bubbles and incomplete fusion between different layers. Independent temperature zones are designed for each extruder, allowing separate temperature parameter adjustment to match different resin types.

The clamping unit is heavy-duty and built with high rigidity frame structure. It provides powerful and balanced clamping force to handle large molds for 2200L containers. The clamping mechanism runs smoothly with low impact and low noise during mold opening and closing. High-precision guide components ensure mold alignment accuracy, preventing flash and deformation of large workpieces. The hydraulic system uses reliable servo pump control, which outputs power on demand. It cuts down energy consumption significantly compared with traditional constant pump systems, while maintaining stable pressure response and fast movement speed.

Human-machine interaction is realized through a high-performance touch screen. Operators can set molding parameters, monitor real-time running status, save product recipes and check historical alarm records on one interface. Multiple sets of mold recipes can be stored and recalled quickly when switching product specifications, shortening mold change and trial production time. Safety protection functions are fully embedded, including emergency stop, safety door interlock and overpressure protection to safeguard operators and equipment during continuous production.

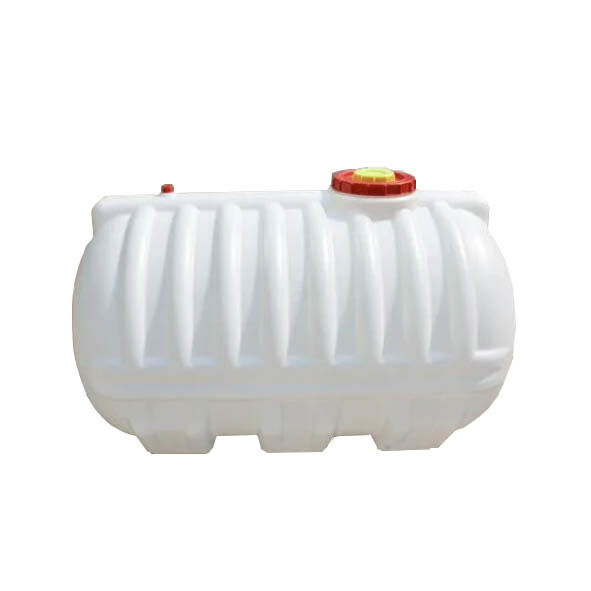

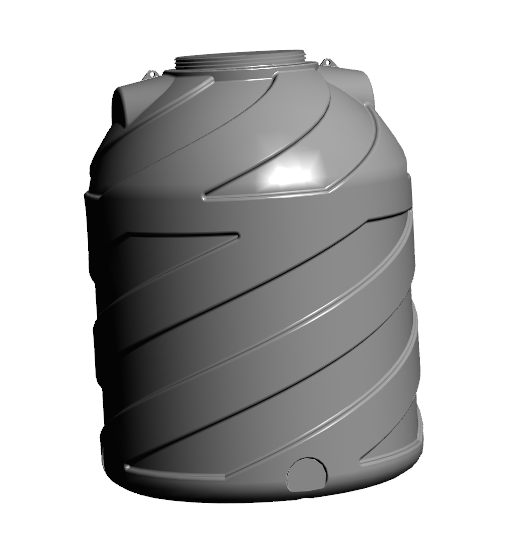

This machine supports production of large hollow containers up to 2200L capacity. It can work with custom molds for different tank shapes and openings. Finished containers show good impact resistance, anti-aging property and reliable barrier performance. It is an ideal equipment for enterprises upgrading from ordinary single-layer tanks to high-barrier multi-layer chemical containers.

We provide complete after-sales service including machine installation, on-site commissioning, operator training and long-term spare parts supply. Our technical team can customize technical solutions based on customers’ raw materials, product requirements and factory layout. This Huayu 2200L four-layer blow molding machine balances high output, stable operation and energy saving, bringing high economic benefits for large hollow plastic container manufacturers.
