Place of Origin:
SHANDONG WEIFANG
Brand Name:
HUAYU
Certification:
CE,ISO9001
Model Number:

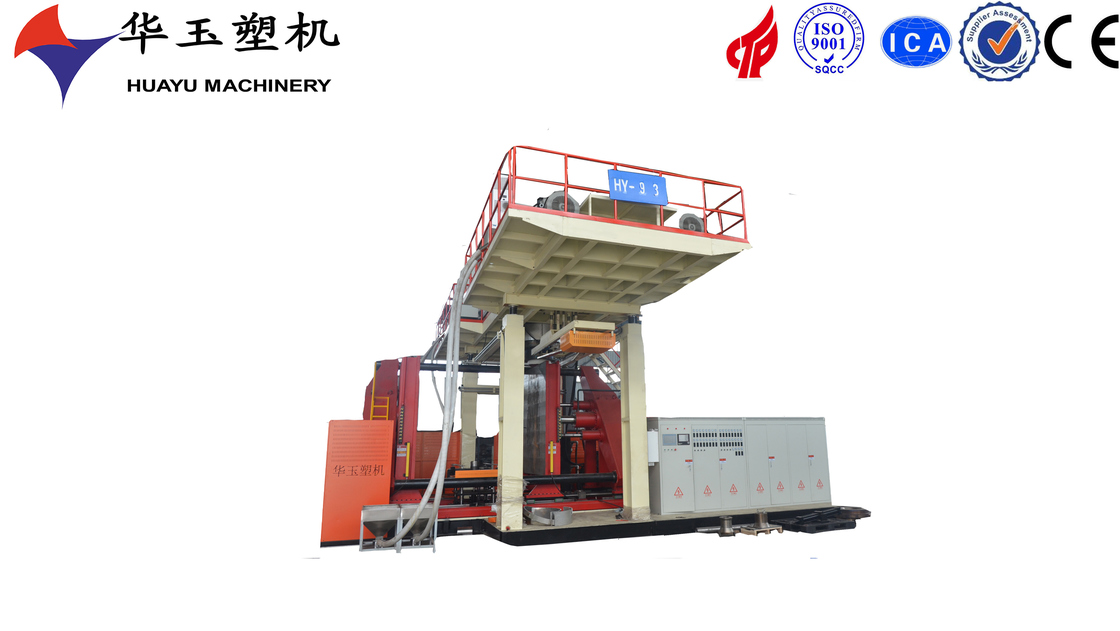

HY5000L-3Layer
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12''
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller's machine should be passed the ISO9001, CE certification.
| Basic Specification | ||
| applicable material | HDPE |
China·HUAYU |
| capacity range | 1000-5000L,3layers | |
| Voltage | Pending | |
| total power | 690kw | |
| average power | 420kw | |
| Machine dimension (L*W*H) | 10*8*8.8 | |
| productivity | 4-18pcs/h | |
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | spring loaded/vacuum loaded | |
| feeding motor | 2.2/2.2/2.2kw | |
| Extrusion System | ||
| Screw diameter | 130/150/130mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 110/132/110kw | |
| Reducer | 375/420/375 | Best quality brand in china ,long life and low noise |
| Screw heating power | 5.5kw*16 | |
| 塑化能力Plasticizing capacity | 1000kg/h | |
