Sturdy 220L Double-L Ring 1 Layer Blow Moulding Machine with Impact-Resistant

Sturdy 220L Double-L Ring 1 Layer Blow Moulding Machine with Impact-Resistant

220L double-layer blow moulding machine

impact-resistant blow moulding machine

sturdy 1-layer blow moulding machine

Place of Origin:

SHANDONG WEIFANG

Brand Name:

HUAYU

Certification:

CE,ISO9001

Model Number:

HY220L-1Layer

Chat Now
Request A Quote
Product Details
Material:
HDPE
Hopper Material:
Stainless Steel
Voltage:
Pending
Brand:
Huayu
Main Oil Pump Motor:
35.6kw
PLC:
Siemens
Highlight:

220L double-layer blow moulding machine

,

impact-resistant blow moulding machine

,

sturdy 1-layer blow moulding machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiate
Packaging Details
The machine will be disassembled into many parts for container transportation.
Delivery Time
5 months
Payment Terms
L/C, T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
Product Description

We're a high-tech comprehensive enterprise integrated with innovation, design, scientific research and development, service and after-service in the field of blow molding machines produce.

We're super-large blow molding machine leader in China,which is due to our strong technical development force ,better quality&more competitive price,and timely&meticulous service.

We account for 15% domestic market shares.Besides, we have a high market share and reputation overseas.

Our main products includes blow molding machines,moulds ,crusher,blender .

We mainly produce 200L-20000L blow molding machines, including one-six layer blow molding machine ranging from 200L, 500L,750L,1000L,2000L,3000L, 5000L,10000L,20000L.

These machines can produce civil barrel,220L double L-ring barrel,plastic tray for forklift ,underground storage tank, tool kit ,multi-layer automobile tank and so on.

In addition,we sell some auxiliary equipment such as plastic scrab crusher, blender ,moulds and some equipment related to blow molding machine.In fact,these auxiliary devices are mainly manufactured to assemble the blow molding machine.So they are cheaper in price and better in quality than other manufactures.

Reliability is our strong point.Compared with other manufacturers,we pay more attention to machines' quality and practical utility not the beautiful outlook. They are more economic and functional,the lifetime is longer and the quality is better.We have a life-time warranty including one year for free,in addition ,our engineers are available overseas.So if you want to purchase a machine or some moulds that can bring you permanent profits,we are the best  choice!



Clamping System
platen size 1400*1600(W*H) smooth running, no noise; the clamping force is big
clamping cylinder 230 120*2
clamping cylinder stroke 1000mm
clamping force 1200KN
distance between platens 1100-2000mm
max. mould size 1200*1500mm(W*H)
Blowing and cooling system
stretching stroke according to products
blow pin up/down stroke 500mm
air seat stroke 400mm
maximum air pressure 0.8Mpa
air consumption 0.8×3(MPa × Cubic meter per minute)
Cooling method Circulating water
Water pressure 0.3MPa
Cooling water consumption 0.3×20°×30(MPa × degree × Cubic meter per hour)

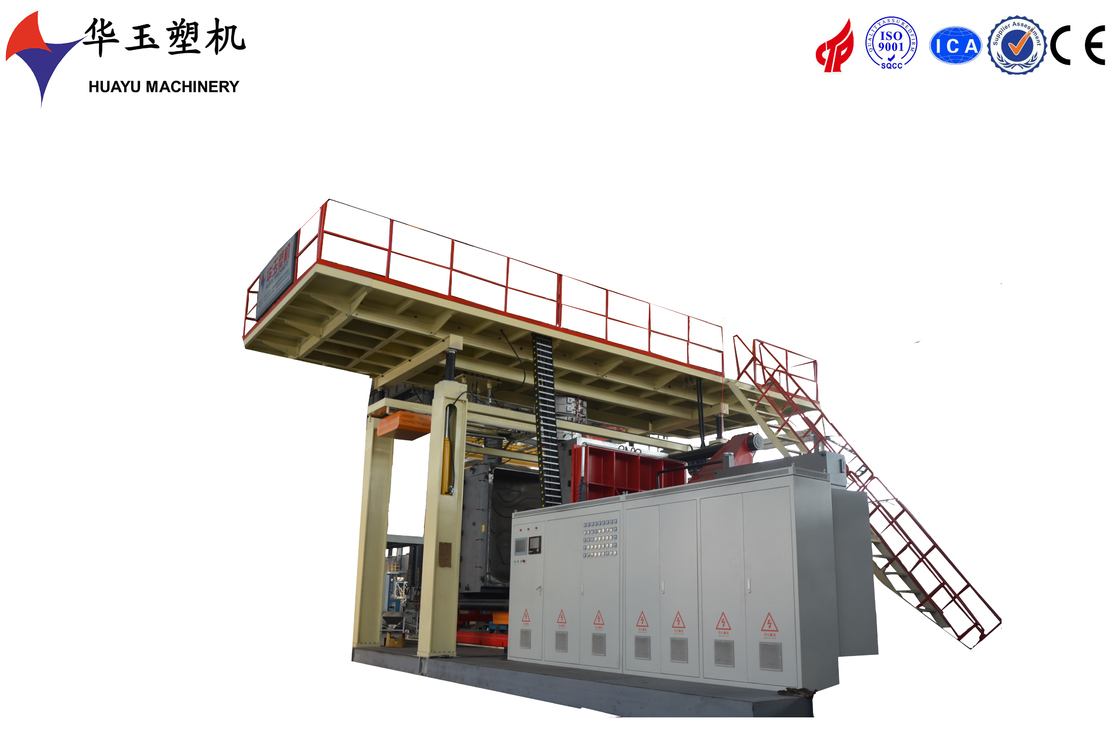

Sturdy 220L Double-L Ring 1 Layer Blow Moulding Machine with Impact-Resistant 0Sturdy 220L Double-L Ring 1 Layer Blow Moulding Machine with Impact-Resistant 1Sturdy 220L Double-L Ring 1 Layer Blow Moulding Machine with Impact-Resistant 2Sturdy 220L Double-L Ring 1 Layer Blow Moulding Machine with Impact-Resistant 3
