Place of Origin:
China
Brand Name:
Huayu
Certification:
CE,ISO9001
Model Number:
HYBM-20000-5
In the field of large-scale hollow plastic product processing, the production capacity, precision and stability of equipment directly determine the production height of the industry. Weifang Huayu Plastic Machinery Co., Ltd. has been deeply engaged in the R&D and manufacturing of plastic machinery for many years. Relying on profound technical accumulation and market insight, we grandly launch the 20000L 5-layer large blow molding machine, breaking the production barrier of large-scale multi-layer blow molding equipment with hardcore technology, providing high-end molding solutions for chemical, environmental protection, storage and transportation and other industries, and redefining the production standards of large-scale hollow products.

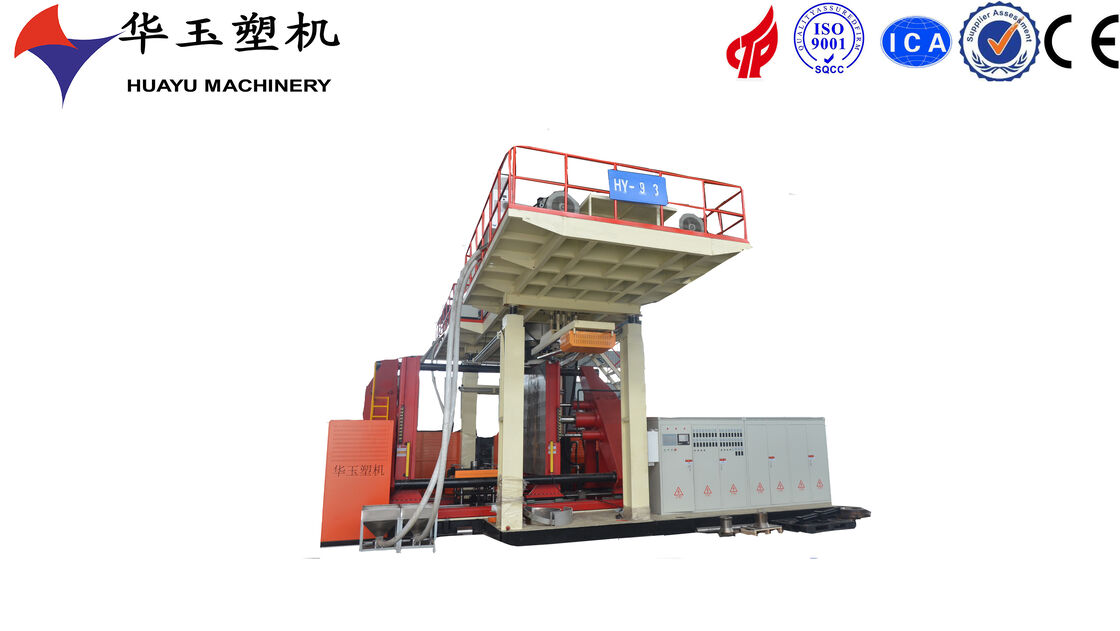

This 20000L 5-layer blow molding machine is a flagship model developed by Huayu Plastic Machinery for the demand of ultra-large capacity and high-performance hollow products. The machine adopts advanced 5-layer co-extrusion die head technology, which accurately realizes the uniform compounding of raw materials of each layer, making the products have multiple advantages such as high strength, high barrier, corrosion resistance and aging resistance. It is perfectly suitable for the production of 20000L ultra-large capacity chemical storage tanks, water storage tanks, large container liquid bag liners and other products. Compared with traditional single-layer equipment, the 5-layer structure can flexibly match different functional raw materials, greatly improving the compression resistance and service life of products, reducing raw material loss, and helping enterprises achieve high-quality and efficient production.
| Parameter | Value | Notes |
|---|---|---|
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | Vacuum suction | |
| feeding motor | 11kw*2 | |
| Extrusion System | ||
| Screw diameter | 130mm*1/150mm*3/130mm* 1 | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1/30:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 132KW*1/160kw*3/132KW*1 | |
| Reducer | 375* 1/420*3/375* 1 | Best quality brand in china, long life and low noise |
| Screw heating power | 6kw*6/7KW*21/6KW*6 | |
| Plasticizing capacity | 1500kg/h | |
| Die Head | ||
| Accumulator capacity | 750KG | designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 200kw | |
| Clamping System | ||
| platen size | 3400*4200* 100mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 500+300*4 | |
| clamping cylinder stroke | 2000mm | |
| clamping force | 6000KN | |
| distance between platens | 2400-6500mm | |
| max. mould size | 2800*4000mm(W*H) | |
