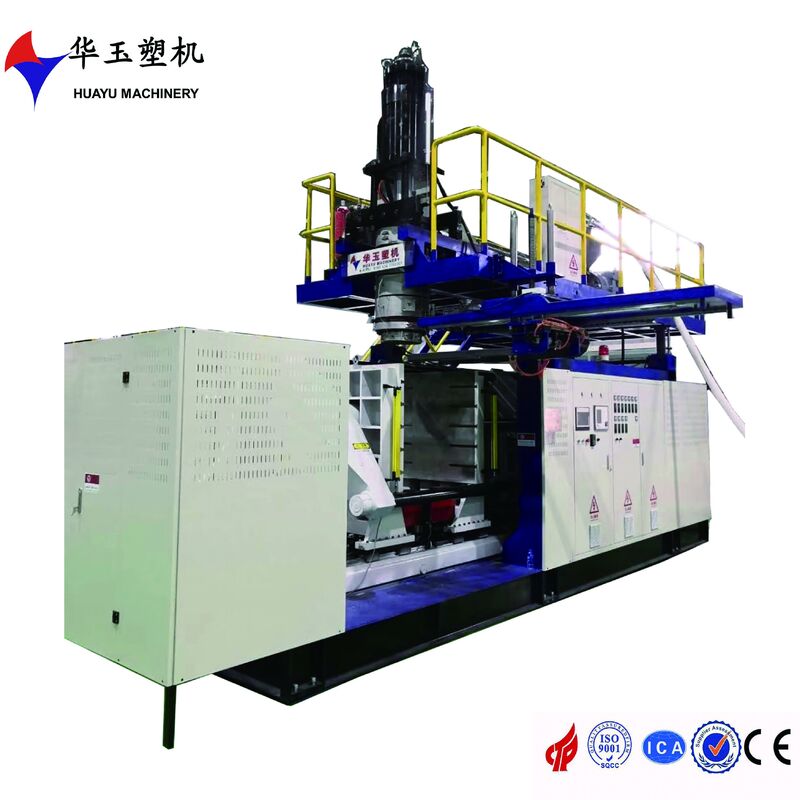

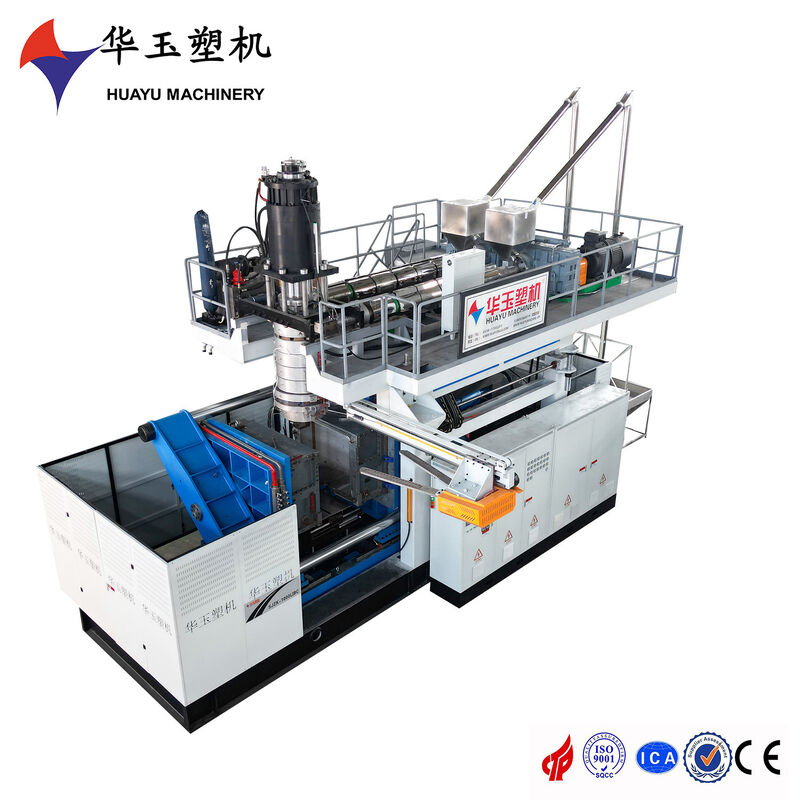

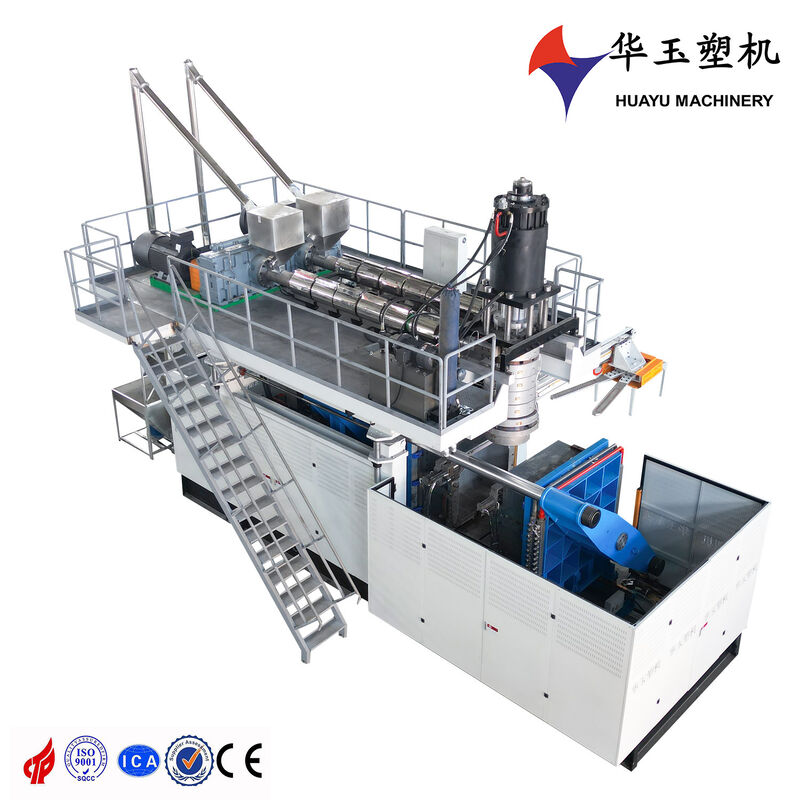

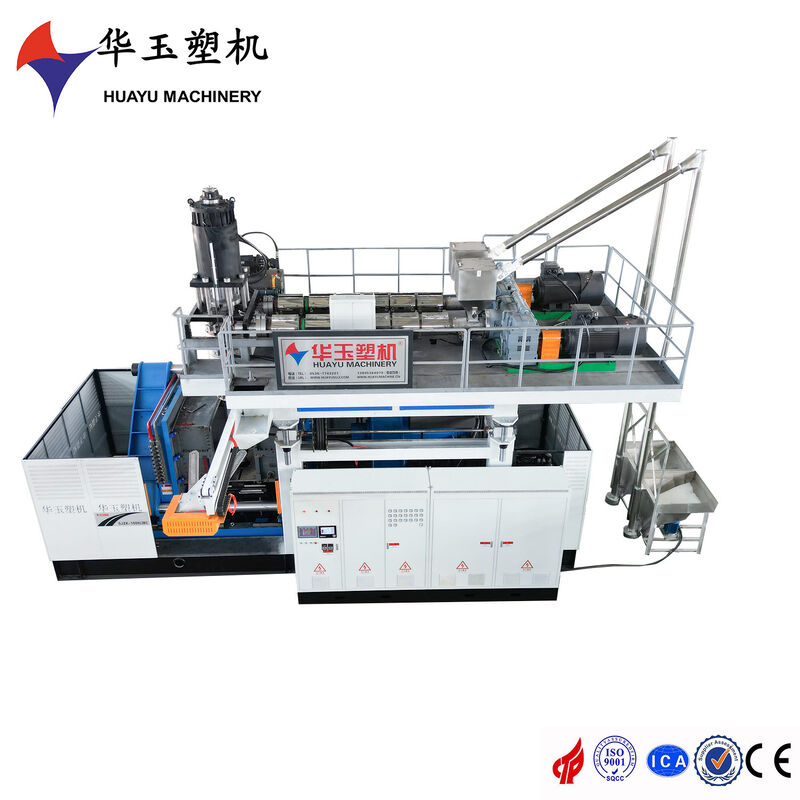

5-Layer Co-extrusion IBC Blow Moulding Machine 3000L Capacity Extrusion Blow Molding Machine with 750kg/h Plasticizing Capacity

Huayu 3000L 5-layer co-extrusion blow molding machine is a large-scale hollow blow molding equipment independently developed and manufactured for producing high-performance large-volume plastic storage tanks. This machine adopts a five-layer co-extrusion structure design, which can realize synchronous extrusion of multi-layer plastic materials, and the finished products have excellent barrier property, anti-ultraviolet performance, corrosion resistance and structural stability. It is widely applied to make HDPE chemical tanks, sewage holding tanks, water storage tanks, liquid container tanks and other large hollow plastic products with strict medium isolation requirements.

Different from single-layer and double-layer blow molding equipment, the 5-layer co-extrusion structure allows customers to configure different raw material formulas for each functional layer. The inner contact layer can adopt special resistant resin to adapt to chemical liquids, acid and alkali solutions and other corrosive media; the middle enhancement layer improves the rigidity and impact resistance of the tank body; the outer protective layer provides UV resistance and weather resistance for long-time outdoor installation. This layered design greatly extends the service life of plastic tanks and avoids leakage, permeation and material aging problems that frequently occur on ordinary single-layer containers.

The whole machine is equipped with a stable co-extrusion feeding system. Each extrusion unit is driven by independent servo drive assemblies to guarantee consistent plasticizing speed and uniform melt temperature. The melt pipeline is optimized to reduce material stagnation and ensure the homogeneity of the molten plastic before entering the mold. The accumulator head is precisely controlled to discharge material evenly, which effectively prevents wall thickness deviation of large workpieces and realizes stable parison forming for 3000-liter ultra-large containers.

For wall thickness control, this unit supports high-precision parison programming system. Operators can set independent control curves on the HMI screen. Each section of the parison can be adjusted freely, so that the wall thickness distribution of the tank can reach the optimal state. The LVDT position detection modules collect real-time displacement signals and feed back to the control system for closed-loop adjustment. It effectively reduces raw material waste while ensuring the mechanical strength of key stress positions such as the tank bottom and tank shoulder.

The clamping mechanism adopts heavy-duty frame structure and high-rigidity linear guide assemblies. The clamping force output is balanced and stable to fit the large mold of 3000L tank. The mold opening and closing speed can be adjusted steplessly according to production requirements. The hydraulic system uses high-performance servo pump groups, featuring low noise, quick response and obvious energy-saving effect. Compared with conventional constant-pressure hydraulic systems, it cuts down idle power consumption and lowers long-term operation cost for factories.

The human-machine interface adopts a clear and easy-operation touch screen. All production parameters including extrusion speed, parison curve, clamping time, blowing pressure and cooling time can be set, stored and recalled directly on the interface. Multiple sets of product recipe data can be saved for quick switching between different tank specifications. The system integrates complete fault alarm and record functions. Once abnormal signals appear in extrusion, clamping, blowing or lubrication links, the screen will pop up corresponding alarm prompts to help technicians locate problems rapidly and reduce unexpected shutdown time.

The machine is equipped with reliable cooling and air blowing systems. The large-flow blowing pipeline provides stable and even air pressure inside the parison, so the plastic fits the mold cavity fully and the surface finish of finished tanks is good. The circulating cooling channel inside the mold realizes fast and uniform heat exchange, shortens the molding cycle and improves daily output. Auxiliary functions such as mold blowing, pre-blowing and exhaust can be customized according to customer product process requirements.

This 3000L five-layer blow molding machine is suitable for mass production in chemical raw material factories, environmental water treatment enterprises and plastic container manufacturers. It supports customization on mold size, tank opening structure, thread structure and surface logo. We supply complete English electrical drawings and operation manuals together with the machine. Our technical team can go to the customer’s workshop for on-site commissioning, parameter optimization and operation training, helping workers master equipment operation, daily maintenance and common troubleshooting skills.

Huayu focuses on the research and manufacturing of large hollow blow molding equipment. Our machines have passed strict internal testing before delivery, with a 12-month warranty period. We keep supplying long-term spare parts support and technical consultation after sales. This 5-layer 3000L model is a preferred solution for customers who need high-barrier, long-service-life large plastic containers, helping users gain competitive advantages in the market of anti-corrosion storage tanks.
