Place of Origin:
China
Brand Name:
Huayu
Certification:
CE,ISO9001
Model Number:
HYBM-2003
Triple-Layer 2000L Blow Molding Machine for Enhanced Mechanical Strength
| Basic Specification | ||
| applicable material | HDPE | China·HUAYU |
| capacity range | 500-2000L,3layers | |
| Voltage | Pending | |
| total power | 455kw | |
| average power | 310kw | |
| Machine dimension (L*W*H) | 8.5*6*7.2 | |
| productivity | 10-24pcs/h | |
| Auto Feeder | ||
| hopper material | stainless steel | Stable performance, easy maintenance |
| feeding type | spring loaded | |
| feeding motor | 2.2/2.2/2.2kw | |
| Extrusion System | ||
| Screw diameter | 110/130/110mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 75/110/75kw | |

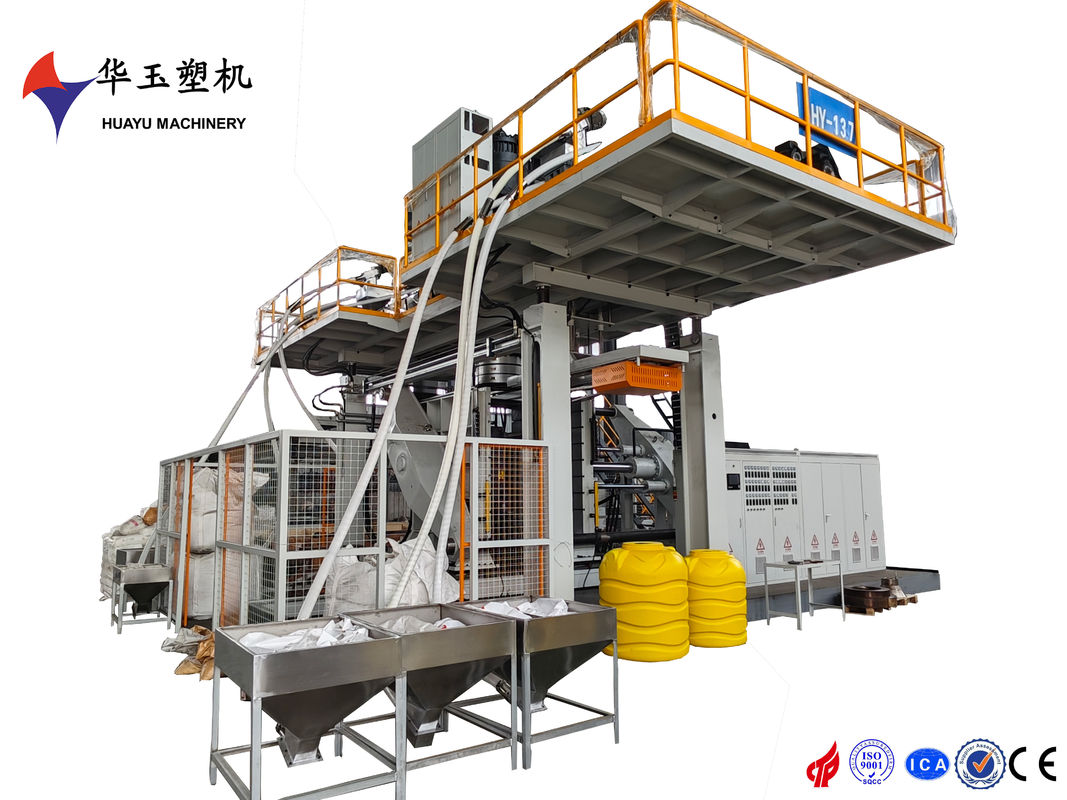

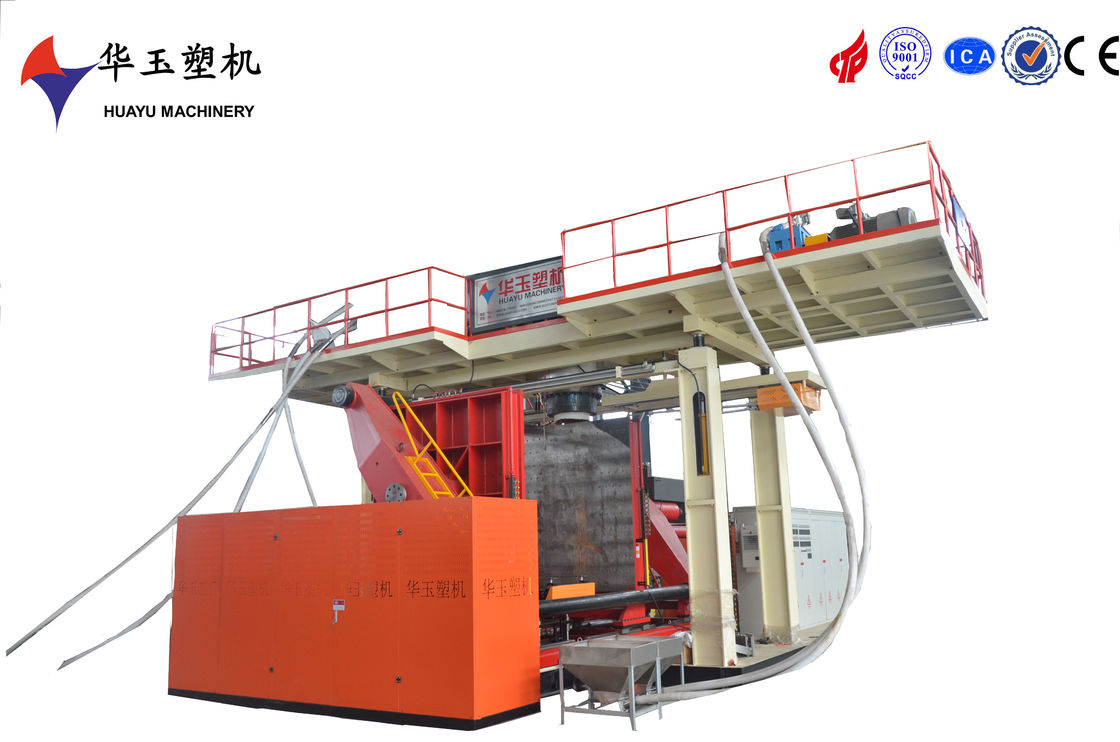

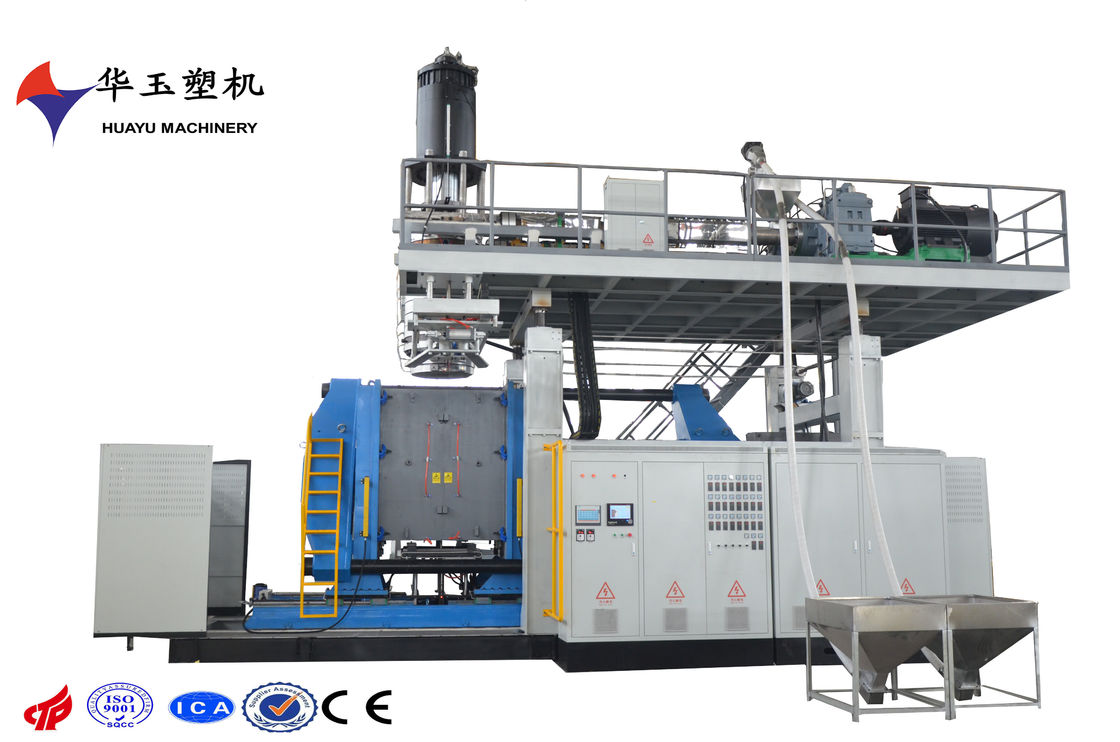

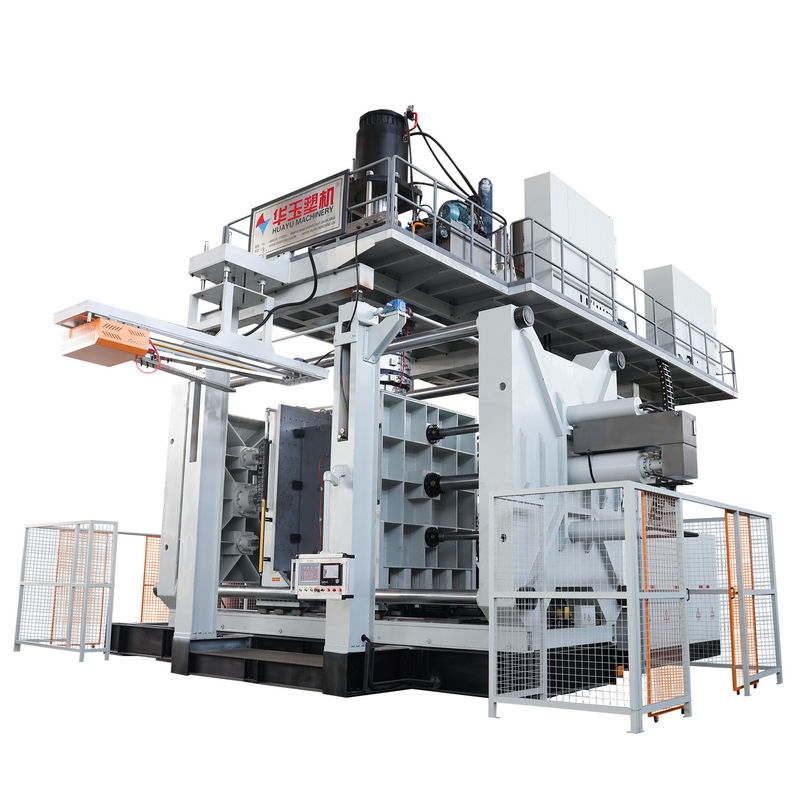

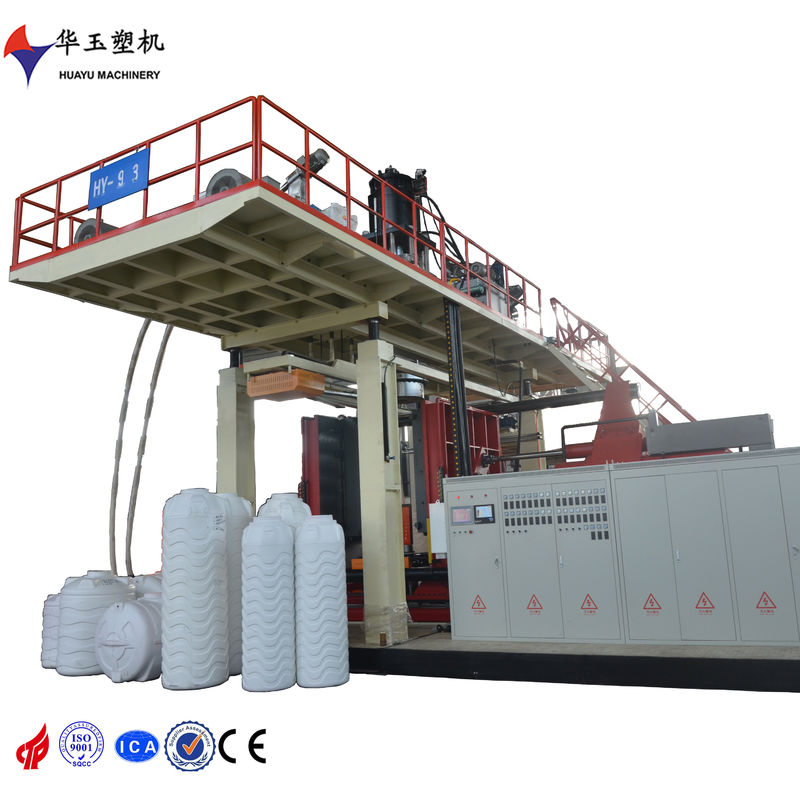

The Huayu 2000L three-layer blow molding machine is a cutting-edge industrial equipment designed for producing high-barrier, multi-functional 2000L containers (e.g., chemical tanks, food-grade storage drums).
Its triple-layer structure utilizes co-extrusion technology to combine distinct materials (e.g., outer UV-resistant layer, middle adhesive layer, inner anti-corrosion layer), enhancing mechanical strength, chemical resistance, and permeability prevention.
Equipped with a triple-head co-extrusion system and Siemens PLC + Moog servo control, it ensures precise material ratio adjustment (e.g., recycled core layer + virgin inner/outer layers) and automated thickness compensation.
The 120kg accumulator and dual-screw extruder enable a 25% faster cycle time compared to single-layer models, achieving daily outputs of 50-60 units. Certified by CE, FDA, and SGS, it meets stringent standards for food/pharmaceutical safety and hazardous material storage. Huayu provides customized solutions and 24/7 global technical support to optimize production efficiency.
