500L HDPE 6-Layer Co-extrusion Extrusion Blow Molding Machine for IBC Blow Moulding Machine Production

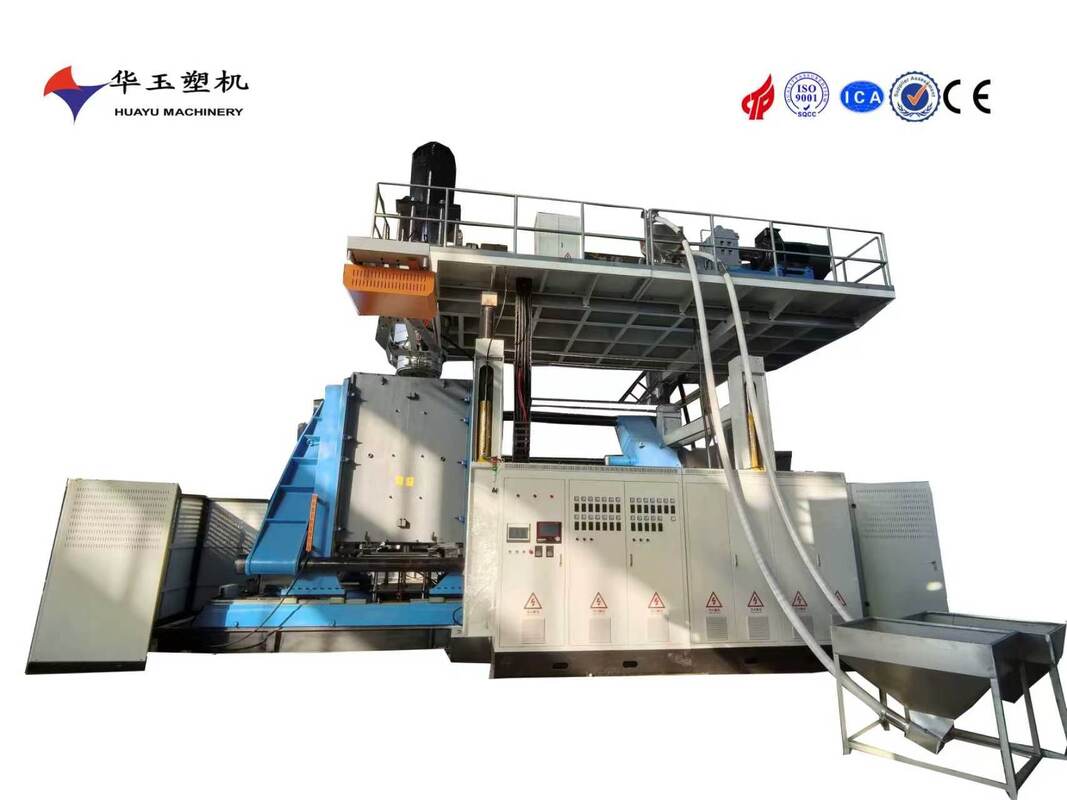

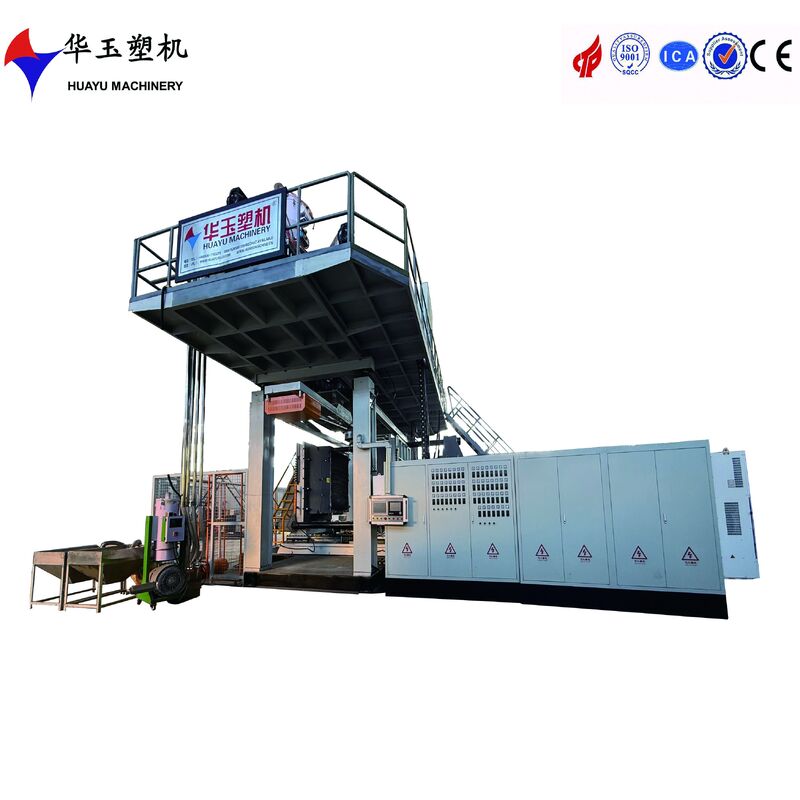

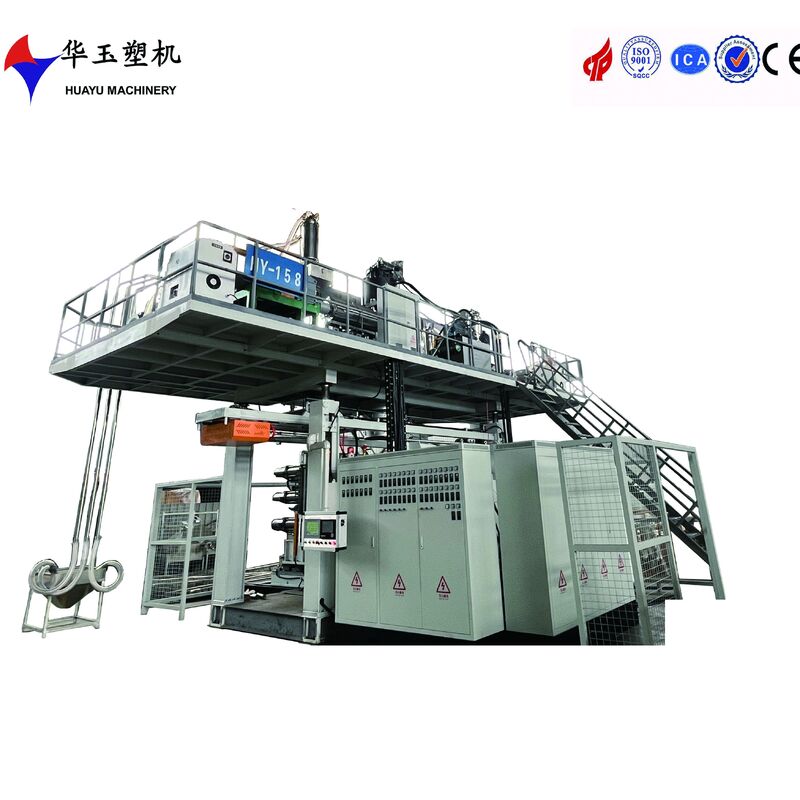

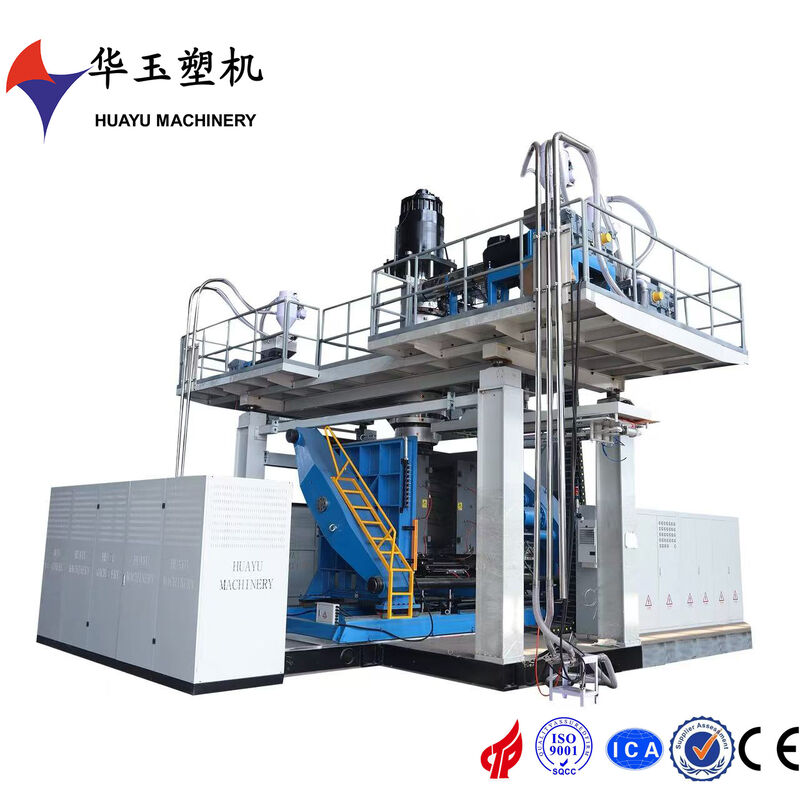

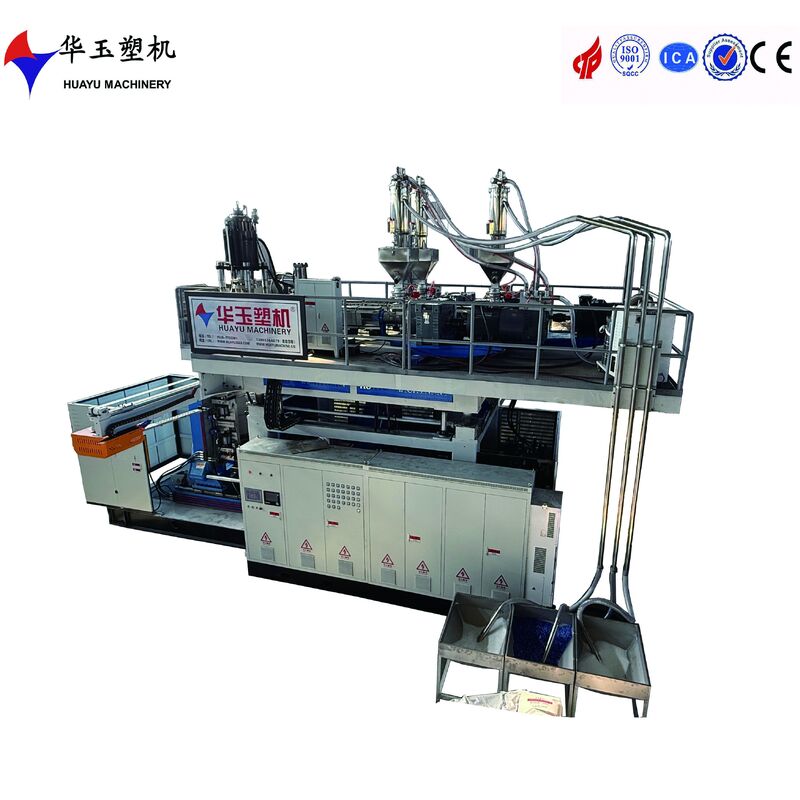

The Huayu 500L six-layer co-extrusion blow molding machine is a high-barrier accumulator-head extrusion blow molding unit independently engineered for manufacturing 500-liter HDPE storage tanks, chemical containers and anti-corrosion liquid drums. Built on decades of Huayu’s expertise in large hollow blow molding technology, this machine delivers stable multi-layer parison forming, precise wall-thickness regulation and reliable continuous operation, tailored for customers who require high barrier performance and consistent container quality.
Its six-layer co-extrusion structure is the core advantage. The standard material stack combines virgin HDPE outer skin, adhesive tie layers, EVOH barrier layer, recycled material core layer and inner food-grade virgin HDPE layer. This layout effectively blocks oxygen permeation and solvent volatilization, prevents chemical leakage and corrosion, and extends the service life of filled liquids. Meanwhile, qualified recycled resin can be embedded in the middle core layer, helping buyers cut raw material costs while keeping the inner and outer contact surfaces clean and safe, which satisfies strict packaging standards for agricultural pesticides, industrial chemical reagents and long-term drinking water storage.
The machine is equipped with six matched extrusion units with optimized screw and barrel design. Each extruder runs with independent temperature and speed adjustment, ensuring uniform plasticization and stable melt output. The multi-layer spiral flow die head is precision processed to eliminate fusion lines and avoid layer offset or delamination during parison extrusion. A high-resolution parison wall thickness controller supports multi-point thickness curve setting and storage, so operators can save different parameter groups for varied tank shapes and switch quickly during mold changeover. This function greatly reduces trial scrap and guarantees even wall distribution across the whole tank body, top and bottom corners.
Servo-hydraulic drive is adopted for clamping, die lifting and accumulator movement. Compared with conventional fixed-pump hydraulic systems, it outputs power on demand, lowers idle energy consumption and reduces oil temperature rise. The heavy-duty clamping frame provides strong and balanced clamping force, resisting mold opening pressure during high-pressure blowing and avoiding flash or deformation on large tank products. The clamping platen moves smoothly with low impact, protecting molds and extending mold service cycles. A high-efficiency cooling circuit with independent internal and external water circulation keeps mold temperature stable and shortens each forming cycle.
The control platform adopts a color touch human-machine interface linked with PLC, featuring visualized parameter setting, running status monitoring, fault alarm and historical record inquiry. All temperature, speed, time and thickness data can be locked by user authority to prevent unintended parameter modification by on-site operators. Safety interlock devices are fitted on protective doors, emergency stop zones and moving working ranges to meet international safety norms and CE certification requirements. Optional auxiliary modules include automatic deflashing units, leak-test stations, mold temperature controllers and material feeding systems, to build a fully automated production cell.
This 500L six-layer blow molding machine is widely used in water storage, farm irrigation, chemical packaging and environmental liquid containment industries. It can produce integral seamless plastic tanks with excellent anti-aging, UV-resistant and impact-resistant performance. Huayu provides complete after-sales support including factory installation guidance, operator training, spare parts supply and remote troubleshooting. With mature mechanical structure, stable multi-layer co-extrusion performance and flexible customization service, this equipment is a preferred solution for manufacturers upgrading from single-layer or three-layer machines to high-barrier multi-layer container production lines.
