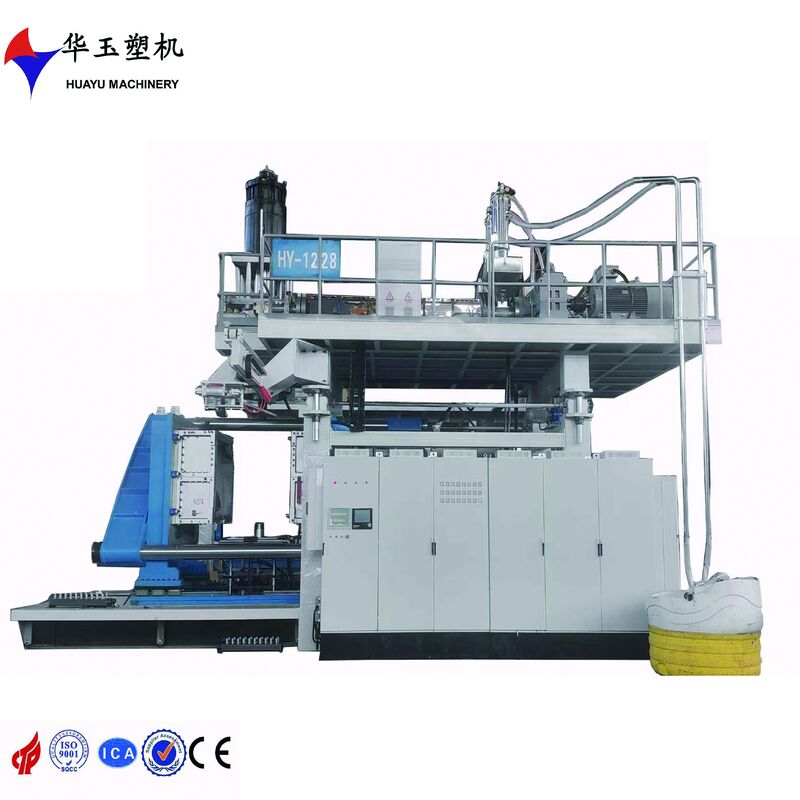

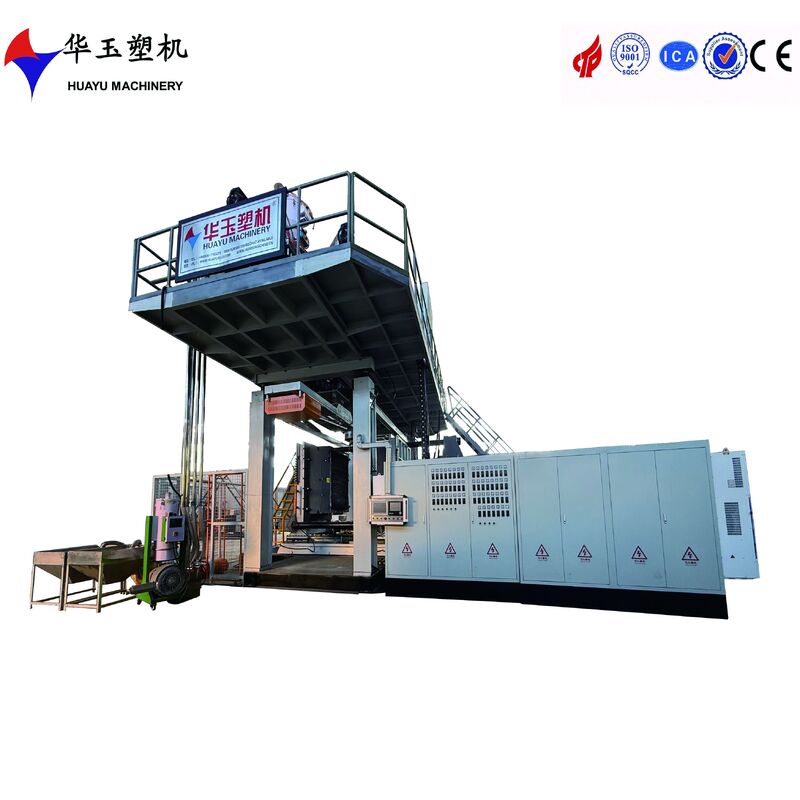

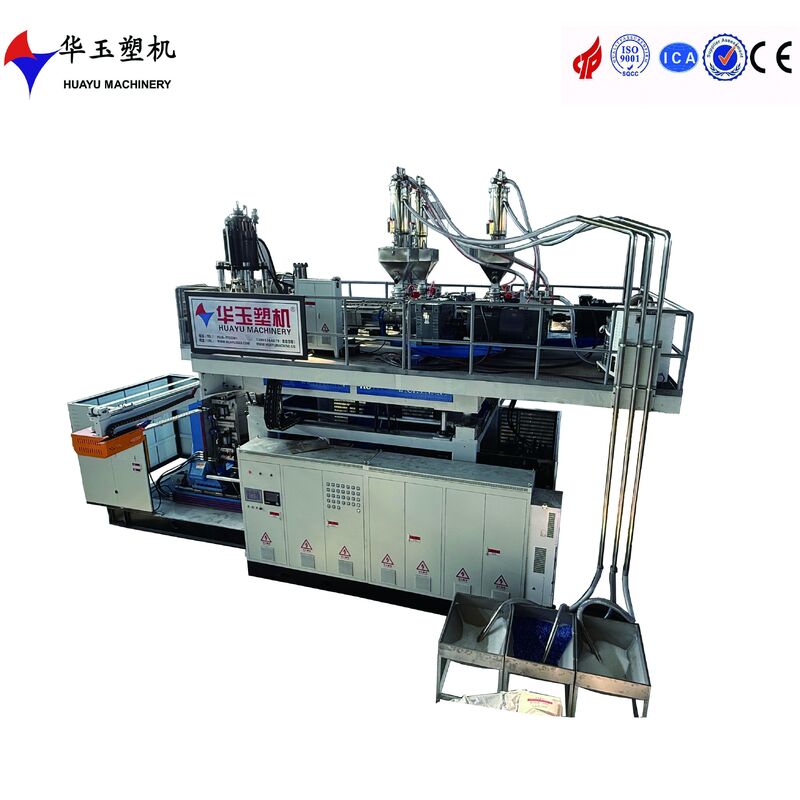

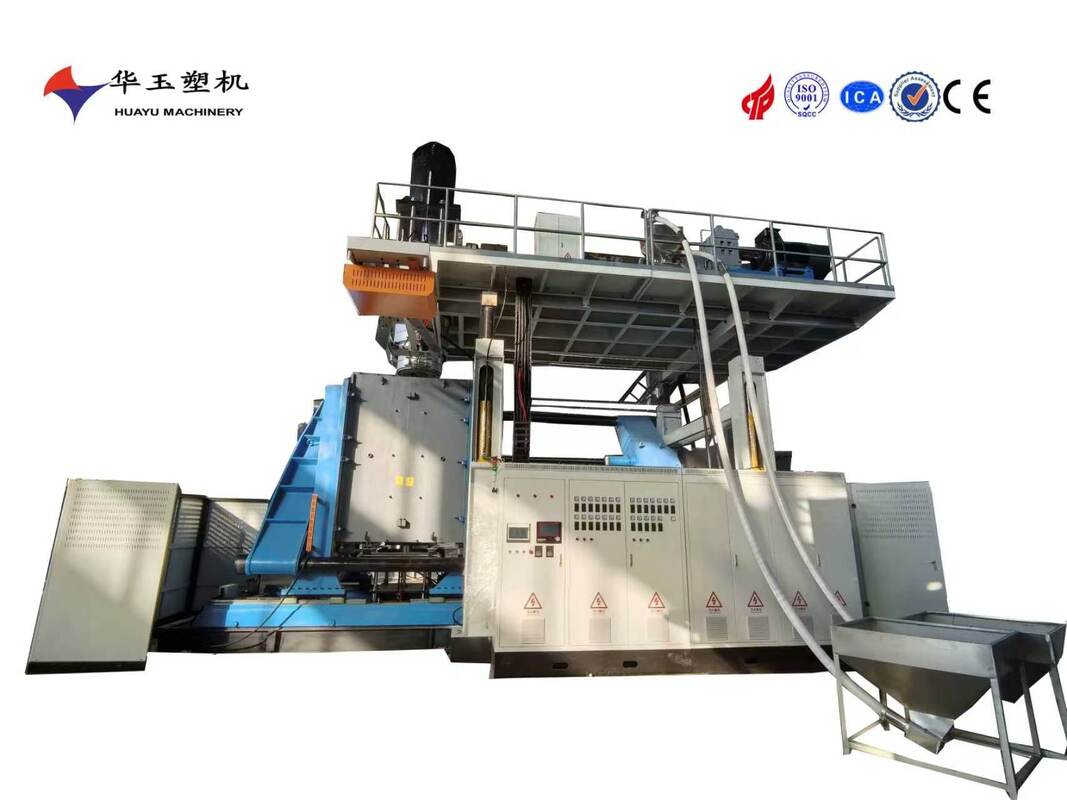

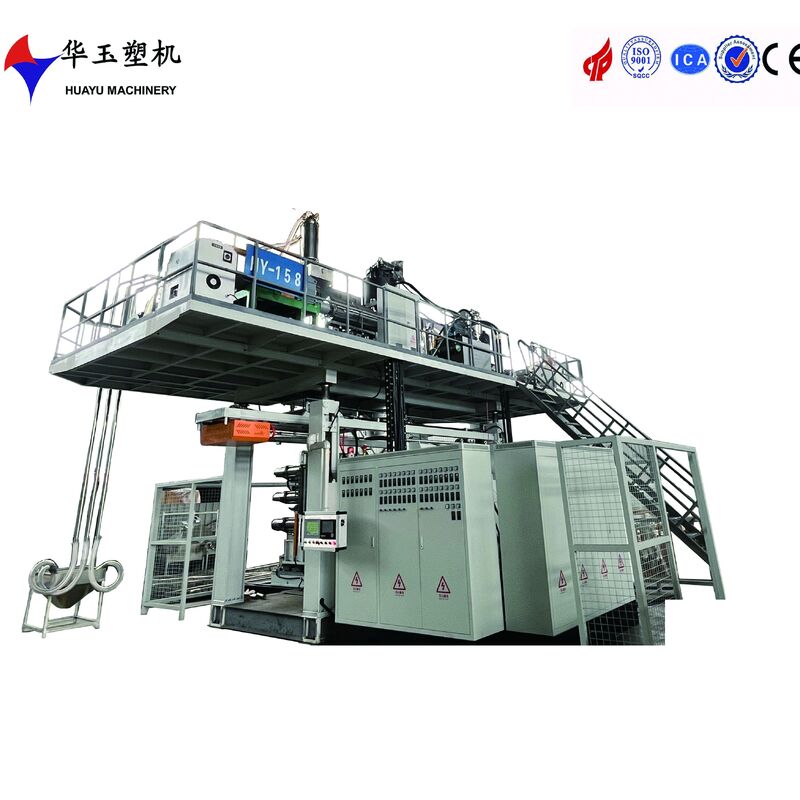

Fully Automatic IBC Blow Moulding Machine with 500kg/h Plasticizing Capacity and 2000KN Clamping Force for IBC Tank Making

Huayu HYBM‑IBC series accumulator‑head extrusion blow moulding machine is purpose‑built for mass production of high‑quality HDPE intermediate bulk containers, commonly known as IBC totes or IBC tanks. Developed and manufactured by Weifang Huayu Plastic Machinery, this fully automatic system supports single‑layer, double‑layer, three‑layer and up to six‑layer co‑extrusion configurations, covering container capacities from 500L to 1000L and customised larger specifications for industrial liquid packaging. It is widely adopted by manufacturers supplying chemical, agrochemical, food, pharmaceutical, water treatment and new‑energy fluid storage sectors worldwide, and designed to meet strict UN packaging test standards for dangerous goods transportation.

At the heart of this machine lies Huayu’s optimised accumulator storage die head, engineered with a first‑in, first‑out melt flow channel to minimise material residence time and thermal degradation. The accumulator collects a precise shot of molten HDPE and releases the parison rapidly in one stroke, effectively suppressing parison sagging, a common defect for large hollow containers. Paired with a high‑resolution parison wall thickness control system, it delivers dynamic adjustment of die gap across the full parison length. Operators can store multiple sets of wall‑thickness recipes directly on the touchscreen interface, reinforcing critical zones such as the bottom, shoulder and valve opening of the IBC liner while thinning non‑stress areas to reduce raw material consumption. This consistent wall distribution drastically lowers leakage risk and improves impact resistance, stacking performance and long‑term stress crack resistance of finished IBC liners.

The extrusion unit adopts heavy‑duty, high‑output extruders with precision‑ground screws and barrels, matched for stable plasticisation of virgin HDPE, recycled HDPE and blended formulations. Each extruder for multi‑layer versions runs on independent servo drives to synchronise melt output accurately, ensuring uniform layer thickness and reliable inter‑layer bonding. The co‑extrusion structure allows flexible material grading: inner layers can adopt food‑contact or high‑barrier resins, while outer layers can add UV‑resistant additives for outdoor stock, giving customers great flexibility to differentiate product grades without switching platforms.

The clamping system uses a robust servo‑hydraulic hybrid structure with high clamping force and precise mould alignment. Low‑friction linear guide supports smooth mould opening and closing, reducing shock and vibration during repeated high‑cycle operation. The blow pin, air circuit and flash trimming mechanism are integrated into the automatic workflow. After blowing and cooling, flash is trimmed neatly, and finished liners are discharged automatically. The whole cycle runs with closed‑loop monitoring of pressure, temperature, position and timing, so parameter deviations trigger real‑time alarms and log records for quality traceability. Compared with traditional fixed‑pump hydraulic systems, the servo‑hydraulic layout cuts idle power consumption significantly, delivering obvious energy savings over long‑shift continuous production.

Human‑machine interaction relies on a user‑friendly colour touchscreen control station. All production parameters, alarm logs, cycle counters and maintenance reminders are centralised. The control system supports quick recipe switching for different IBC sizes and layer structures, shortening mould changeover time. Key hydraulic, pumping and transmission components are sourced from trusted global suppliers for stable long‑term operation. The machine structure is modular, which simplifies maintenance, spare‑part replacement and on‑site upgrade for existing lines.

Huayu provides full turn‑chain support beyond the machine itself. We can coordinate matching moulds, chillers, material feeding systems, crushers and post‑trimming stations to form a complete IBC production line. Our technical team offers overseas installation, commissioning, operator training and scheduled after‑sales service. A standard warranty covers core assemblies, with remote diagnostic assistance available to resolve most operational issues efficiently.

Built for heavy‑duty round‑the‑clock factory environments, Huayu HYBM‑IBC blow moulding equipment balances high output, stable repeatability, material efficiency and low maintenance cost. It is a reliable long‑term investment for producers aiming to supply certified, high‑performance IBC containers for global industrial packaging markets.
