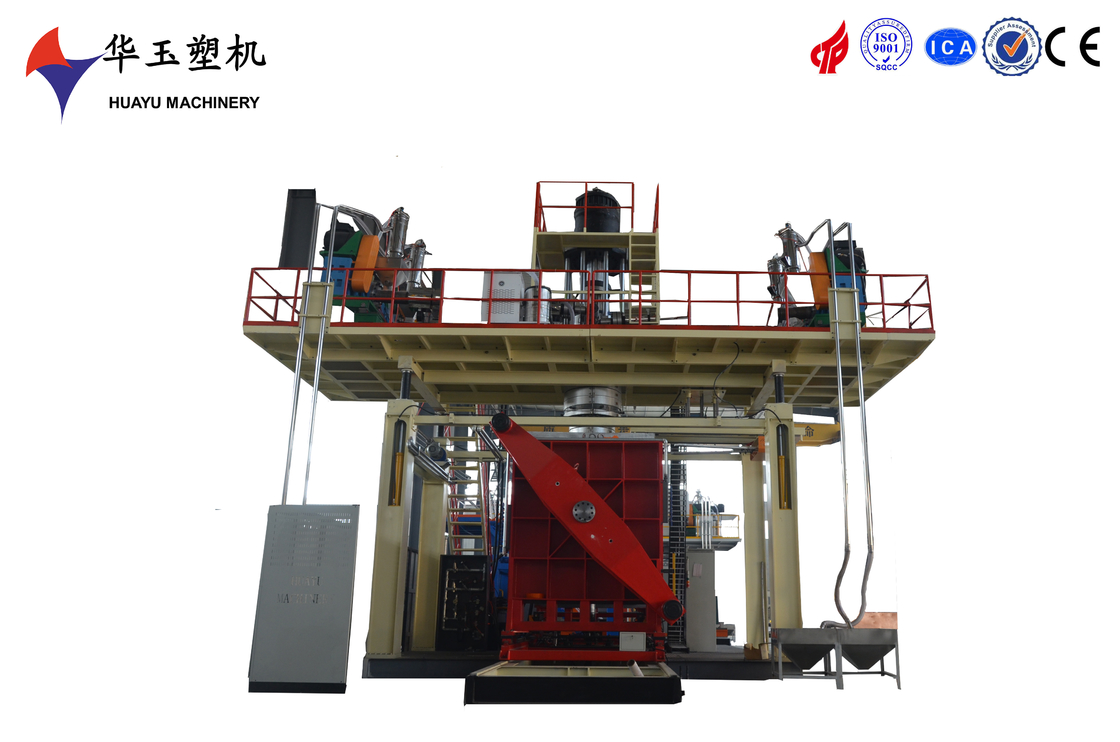

Name: 1000L Blow Moulding Machine with Remote Control 1800KN Clamping Force
Brand: Weifang Huayu Plastic Machinery Co., Ltd.
SKU: HYBM1002
Price: 197,605.00 USD
Availability: InStock

Home > products > 200-1000l Water Tank Blow Moulding Machine >

1000L Blow Moulding Machine with Remote Control 1800KN Clamping Force

1000L blow moulding machine with remote control

blow moulding machine 1800KN clamping force

200-1000L water tank blow moulding machine

Place of Origin:

SHANDONG WEIFANG

Brand Name:

HUAYU

Certification:

CE,ISO9001

Model Number:

HYBM1002

Request A Quote

1000L Blow Moulding Machine with Remote Control 1800KN Clamping Force

Product Details

Machine Dimension:

9.5*5.8*6.8

Average Consumption:

190kw

Total Power:

426kw

Accumulator Capacity:

30kg

Extruder Motor:

110kw*2

Screw Diameter:

120mm

Highlight:

1000L blow moulding machine with remote control

blow moulding machine 1800KN clamping force

200-1000L water tank blow moulding machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Negotiate

Packaging Details

The machine will be disassembled into many parts for container transportation.

Delivery Time

5 months

Payment Terms

L/C, T/T

Supply Ability

4 sets per month

RELATED PRODUCTS

86-0536-770-9997

Contact Now

Product Description

The HUAYU1000L-2 Blow Moulding Machine provides a high-performance solution for manufacturing large plastic containers. It features advanced automation and energy-efficient technology, ensuring high precision and consistent product quality, with a robust construction guaranteeing long-term reliability.

equipment parts	main parameter		brand
clamping system	clamping structure	two pull rods, center directly pushing	huayu
	clamping force	1800KN
	platen size	1700180080mm (WHT)
	max. mould size	14001600mm (WH)
	distance between platens	1100-2500mm
	pull rod size	φ194mm
	clamping cylinder	1400mm×2,300mm×1 (φ*H)
	linear guide	65mm	hiwin
	linear guide length	1600mm× 6 pieces	hiwin
	stroke control	displacement sensor	omron
	explanation	smooth running, no noise; the clamping force is big	omron
blowing unit	sealing width	according to products	huayu
	stretching stroke	according to products
	blow pin up/down stroke	300mm
	air seat stroke	400mm
	maximum air pressure	0.8Mpa
	air consumption	1.5m³/min
	explanation	with pre-blowing function, air blowing pin independent design which relize convenient replacement and multiply usage

1000L Blow Moulding Machine with Remote Control 1800KN Clamping Force 0
