Place of Origin:
China
Brand Name:
Huayu
Certification:
CE,ISO9001
Model Number:
HYBM-1007

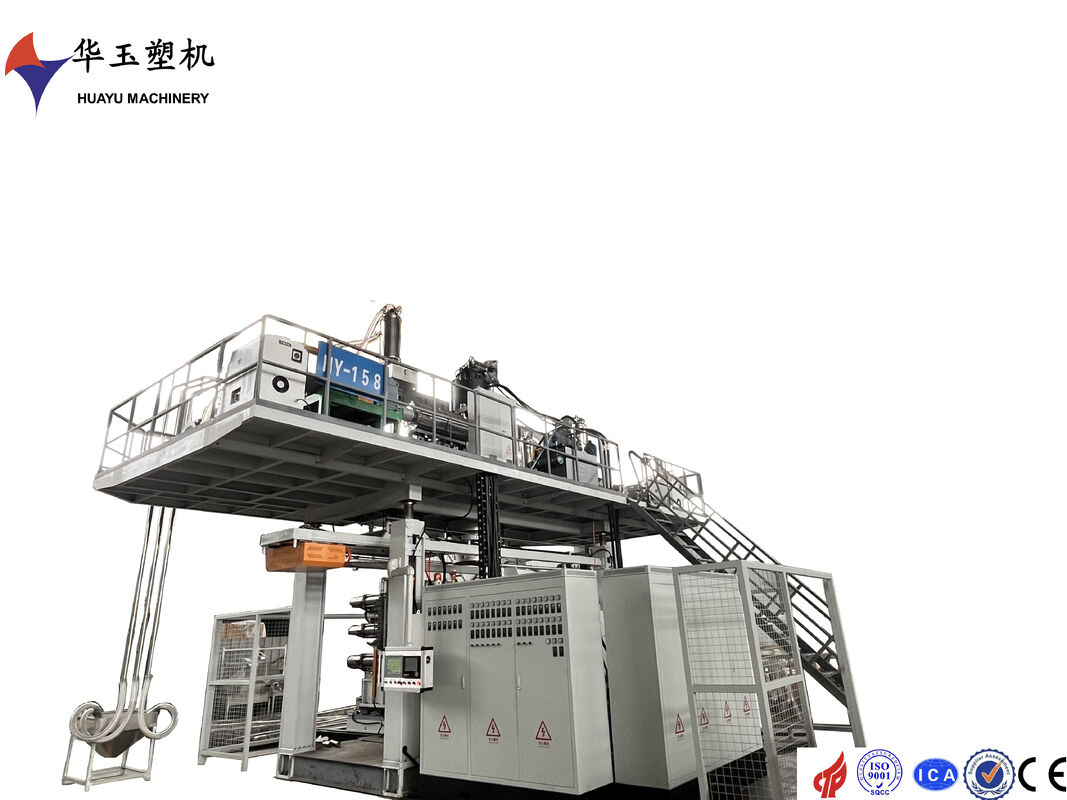

The Balanced Performer: Huayu 1000L 7-Layer Blow Molding Machine
The Huayu 1000L 7-Layer Co-extrusion Blow Molding Machine is engineered for manufacturers seeking the optimal balance between advanced functionality and production efficiency. This model provides a robust platform for creating large-volume containers (200-1000L) with sophisticated multilayer structures, offering enhanced barrier properties, material savings, and design flexibility without the complexity of ultra-high-layer systems. It is the ideal choice for producing high-value industrial containers where performance, cost, and sustainability must be carefully weighed.
Advanced Co-extrusion for Superior Performance
The 7-layer configuration unlocks significant material science advantages. It allows for the strategic combination of virgin outer and inner layers for product safety and aesthetics, multiple central layers for structural integrity and high percentages of post-industrial regrind, and dedicated functional layers such as EVOH for oxygen barrier or UV-resistant compounds. This structure enables the production of containers that are lighter, stronger, and more protective than their 3 or 5-layer counterparts, making them perfect for demanding applications in the chemical, agricultural, and food industries. The machine ensures precise control over each layer's thickness and distribution, guaranteeing consistent quality.
Engineered for Reliability and Precision
Built on Huayu's proven platform, this machine features seven independently controlled extruders, each equipped with a specialized screw (Ø80mm, L/D 28:1) for optimal plasticizing of different materials. The high-precision 7-layer die head ensures perfect layer adhesion and concentricity. A robust clamping unit with 800 KN force handles large molds with stability. The system is governed by an advanced Siemens PLC and MOOG wall thickness control system, allowing for precise parison programming and repeatable production cycles. This combination delivers reliable, high-output manufacturing of complex containers.
Performance Parameters Table: HY-1000L-7L (Typical Configuration)
| Feature / Parameter | Specification |
|---|---|
| Model | HY-1000L-7L |
| Capacity Range (L) | 200 - 1000 |
| Number of Layers | 7 |
| Machine Dimension (LWH, M) | 10.5 * 5.4 * 6 |
| Average Power Consumption (KW) | 260 |
| Total Power (KW) | 520 |
| Accumulator Capacity (KG) | 35 |
| Extruder Motor (per screw) | 37 KW * 7 |
| Screw Diameter (mm) | 80 * 7 |
| Screw L/D Ratio | 28:1 |
| Plasticizing Capacity (KG/H) | 430 |
| Platen Size (WHT, mm) | 1500 * 1700 * 70 |
| Platen Distance (mm) | 850 - 2600 |
| Clamping Force (KN) | 800 |
| Control System | Siemens PLC & MOOG Wall Thickness Control |
| Key Advantages | Optimal 7-Layer Performance, High Regrind Utilization, Reliable & Efficient Production |
