Place of Origin:
China
Brand Name:
Huayu
Certification:
CE,ISO9001
Model Number:
HYBM-1008

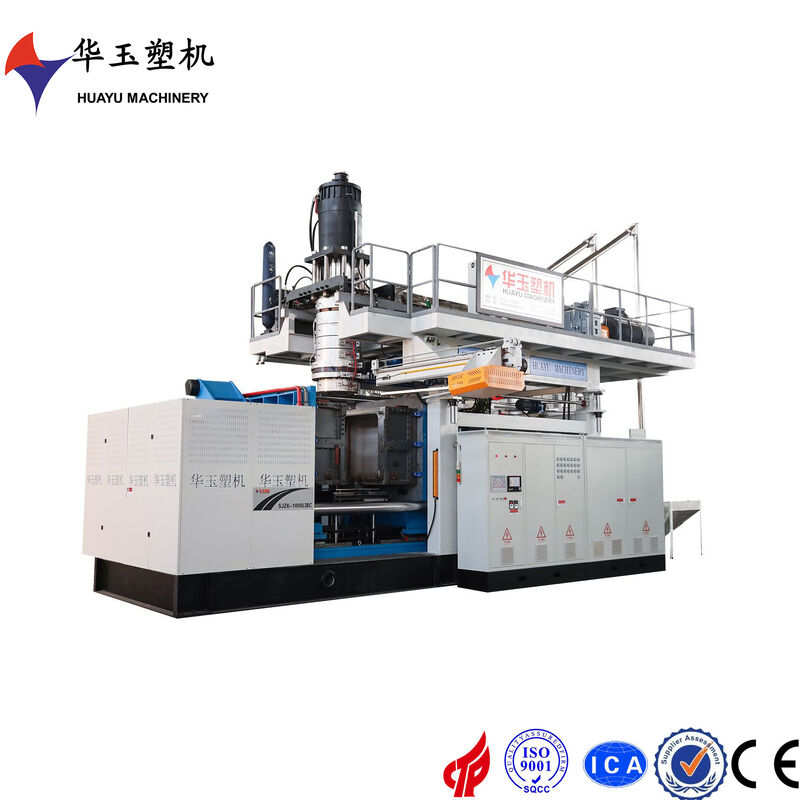

Enhanced Versatility: Huayu 1000L 8-Layer Blow Molding Machine
The Huayu 1000L 8-Layer Co-extrusion Blow Molding Machine represents a significant step forward in multilayer container technology for the 1000L range. Designed for applications requiring superior barrier performance, maximum material optimization, and exceptional design freedom, this machine empowers producers to tackle the most challenging packaging requirements. It is the go-to solution for creating premium containers that demand the ultimate in protection, sustainability, and cost-effectiveness.
Unlocking Greater Design Freedom
The addition of an eighth layer provides engineers with unprecedented control over the container wall structure. This allows for more complex and efficient designs, such as incorporating dual adhesive layers for bonding dissimilar materials, creating separate regrind streams for different post-consumer materials, or adding a dedicated layer for specific additives like anti-static or anti-fog agents. The result is a container that can be precisely engineered to meet exact technical specifications for gas barrier (O2, CO2), moisture resistance, mechanical strength, and chemical compatibility, all while maximizing the use of recycled content.
Precision Engineering for Complex Production
Managing eight distinct material layers requires a machine built for precision and stability. Huayu's 8-layer system features eight synchronized extruders (Ø80mm screws) driven by independent servo motors, ensuring consistent melt flow and pressure for each layer. The advanced 8-layer co-extrusion die is designed for flawless layer formation and adhesion. The heavy-duty clamping system maintains precise alignment under high force (800 KN), essential for large-part molding. An integrated control system with real-time monitoring guarantees that the complex multilayer recipe is executed perfectly in every cycle, ensuring batch-to-batch consistency.
Performance Parameters Table: HY-1000L-8L (Typical Configuration)
| Feature / Parameter | Specification |
|---|---|
| Model | HY-1000L-8L |
| Capacity Range (L) | 200 - 1000 |
| Number of Layers | 8 |
| Machine Dimension (LWH, M) | 11 * 5.4 * 6.2 |
| Average Power Consumption (KW) | 300 |
| Total Power (KW) | 580 |
| Accumulator Capacity (KG) | 35 |
| Extruder Motor (per screw) | 37 KW * 8 |
| Screw Diameter (mm) | 80 * 8 |
| Screw L/D Ratio | 28:1 |
| Plasticizing Capacity (KG/H) | 450 |
| Platen Size (WHT, mm) | 1500 * 1700 * 70 |
| Platen Distance (mm) | 850 - 2600 |
| Clamping Force (KN) | 800 |
| Control System | Advanced PLC with Multi-layer Management |
| Key Advantages | Maximum Design Flexibility, Superior Multi-Barrier Performance, High-Efficiency Production |
