Home > Products > IBC Blow Moulding Machine >

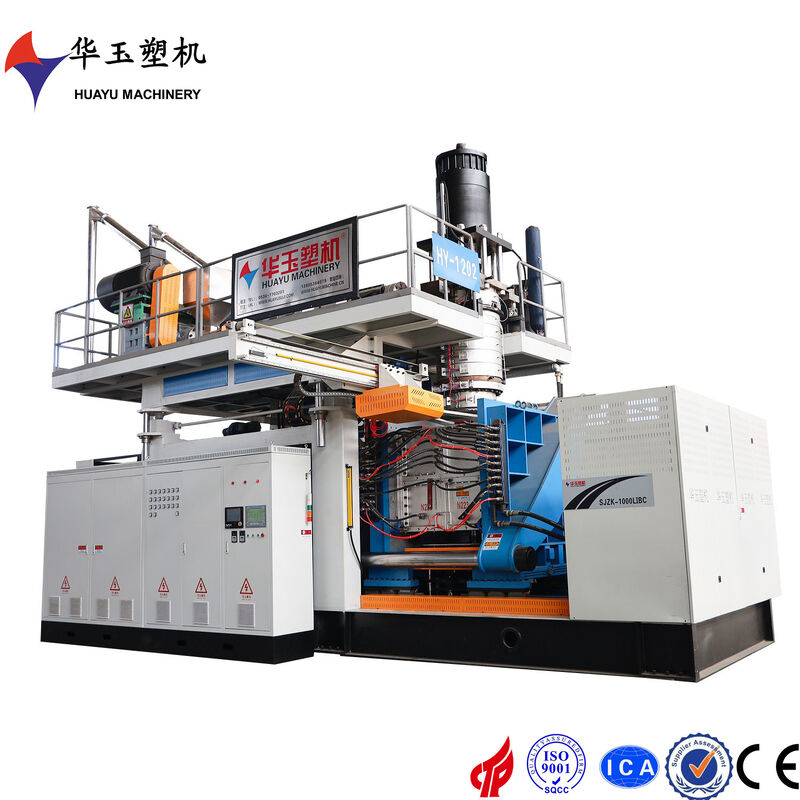

HY200L-1000L 4LAYERS BLOW MOULDING MACHINE with 331.5kw Total Power for Large Container

HY200L-1000L 4LAYERS BLOW MOULDING MACHINE with 331.5kw Total Power for Large Container

IBC blow moulding machine with 331.5kw power

large container blow moulding machine

4layers blow moulding machine for IBC

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE，ISO9001

Model Number:

HYBM-1004

Chat Now
Request A Quote
HY200L-1000L 4LAYERS BLOW MOULDING MACHINE with 331.5kw Total Power for Large Container
Product Details
Hopper Material:
Stainless Steel
Nce Between Platens:
900-2400mm
Screw Barrel Material:
38CrMoAlA，Nitriding
Automatic:
Yes
Productivity:
15pcs/h
Servo Motor:
57kw
Die Head Heating:
90KW
Cycletime:
15-30 Seconds
Temperature Control:
Modular Temperature Control
Goods Capacity:
200L-1000L
Maxmouldsize:
1200 X 1500 Mm
Production Capacity:
10-20 IBC Containers Per Hour
Air Supply:
0.8*6(Mpa*Cubic Meter Per Minute)
Screw Dia:
120mm*1 110mm*2
Maxcontainervolume:
200-1000 Liters
Highlight:

IBC blow moulding machine with 331.5kw power

,

large container blow moulding machine

,

4layers blow moulding machine for IBC

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

Capacity range: 200-1000L

Machine dimension : 9*5.4*5.6M

Average consumption: 180kw

Total power: 331.5kw

Accumulator capacity: 35KG

Extruder motor: 37*4kw

Screw diameter: 80*4MM

Screw L/D ratio: 28:1

Plasticizing capacity: 330KG/H

Platen size: 1500*1700*70MM

Platen distance: 850*2600MM

Clamping force: 800KN

Servo motor: 30kw
