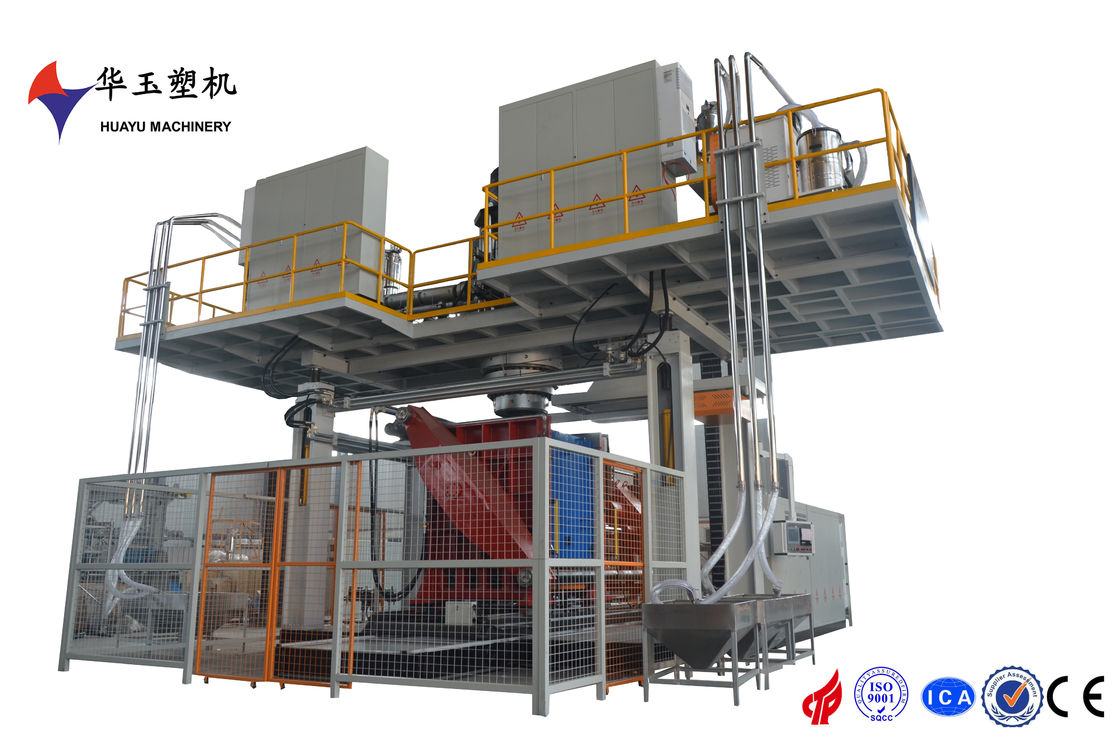

HY 500L-2000L 4 LAYERS BLOW MOULDING MACHINE with 55*4kw Extruder Motor

HY 500L-2000L 4 LAYERS BLOW MOULDING MACHINE with 55*4kw Extruder Motor

4 layers blow moulding machine

IBC blow moulding machine with 55*4kw motor

500L-2000L blow moulding machine

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE，ISO9001

Model Number:

HYBM-2004

Chat Now
Request A Quote
HY 500L-2000L 4 LAYERS BLOW MOULDING MACHINE with 55*4kw Extruder Motor
Product Details
After Sales:
OVERSEAS SERVICE
Platen Size:
1700*1800mm
Platen:
1700*1800MM
Parison Control:
MOOG 200point
Mouldmaterial:
Aluminum Alloy
Feeder Type:
Spring Feeder
Capacity Range:
1000L IBC Layer
Extruder Motor:
55/75/55kw
Maxcontainervolume:
200-1000 Liters
Heating Method:
Electric Heating
Controlsystem:
PLC With Touch Screen
Gear Pimp:
Japan 185cc Double Pump
Feeding Type:
Vacuum Loaded
Air Supply:
0.8*6(Mpa*Cubic Meter Per Minute)
Highlight:

4 layers blow moulding machine

,

IBC blow moulding machine with 55*4kw motor

,

500L-2000L blow moulding machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by container
Delivery Time
4 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

Capacity range: 500-2000L

Machine dimension : 12*9.5*7.5M

Average consumption: 220kw

Total power: 452kw

Accumulator capacity: 60KG

Extruder motor: 55kw*4

Screw diameter: 90MM*4

Screw L/D ratio: 30:1

Plasticizing capacity: 450KG/H

Platen size: 1800*2100MM

Platen distance: 1100-3000MM

Clamping force: 1800KN

Servo motor: 48kw
