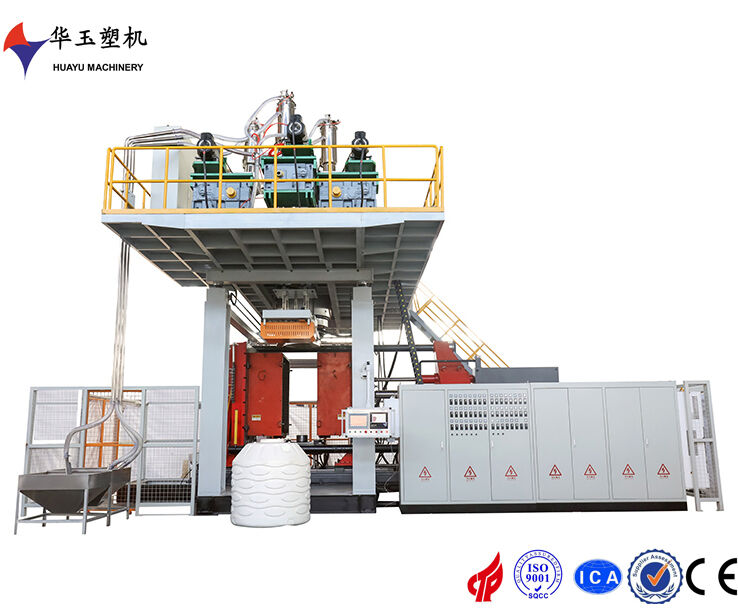

HY 500L-2000L 3 LAYERS BLOW MOULDING MACHINE with Screw diameter 90/120/90mm

HY 500L-2000L 3 LAYERS BLOW MOULDING MACHINE with Screw diameter 90/120/90mm

3 layers blow moulding machine with screw diameter

IBC blow moulding machine with 90/120/90mm screw

500L-2000L blow moulding machine with warranty

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE，ISO9001

Model Number:

HYBM-2003

Chat Now
Request A Quote
HY 500L-2000L 3 LAYERS BLOW MOULDING MACHINE with Screw diameter 90/120/90mm
Product Details
Air Seat Stroke:
400mm
Feeding Type:
Spring Loaded
Machine Type:
High Speed Plastic Bottle Making Machine
Die Head Heatingpower:
100 KW
Feeding Motor:
2.2kw*3
Applicable Material:
HDPE
Air Supply:
0.8×6
Screw Material:
38 CrMoAIA, Nitriding
Materialcompatibility:
HDPE, PP, PET
Productionoutput:
500-2000 Pieces/day
Application:
IBC Container Manufacturing
Powersupply:
380V, 50Hz, 3 Phase
Hopper Material:
Stainless Steel
Plastic Processed:
HDPE
Highlight:

3 layers blow moulding machine with screw diameter

,

IBC blow moulding machine with 90/120/90mm screw

,

500L-2000L blow moulding machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by container
Delivery Time
4 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

Capacity range: 500-2000L

Machine dimension : 12*9.5*7.5M

Average consumption: 220kw

Total power: 452kw

Accumulator capacity: 60KG

Extruder motor: 55kw*4

Screw diameter: 90MM*4

Screw L/D ratio: 30:1

Plasticizing capacity: 450KG/H

Platen size: 1800*2100MM

Platen distance: 1100-3000MM

Clamping force: 1800KN

Servo motor: 48kw
