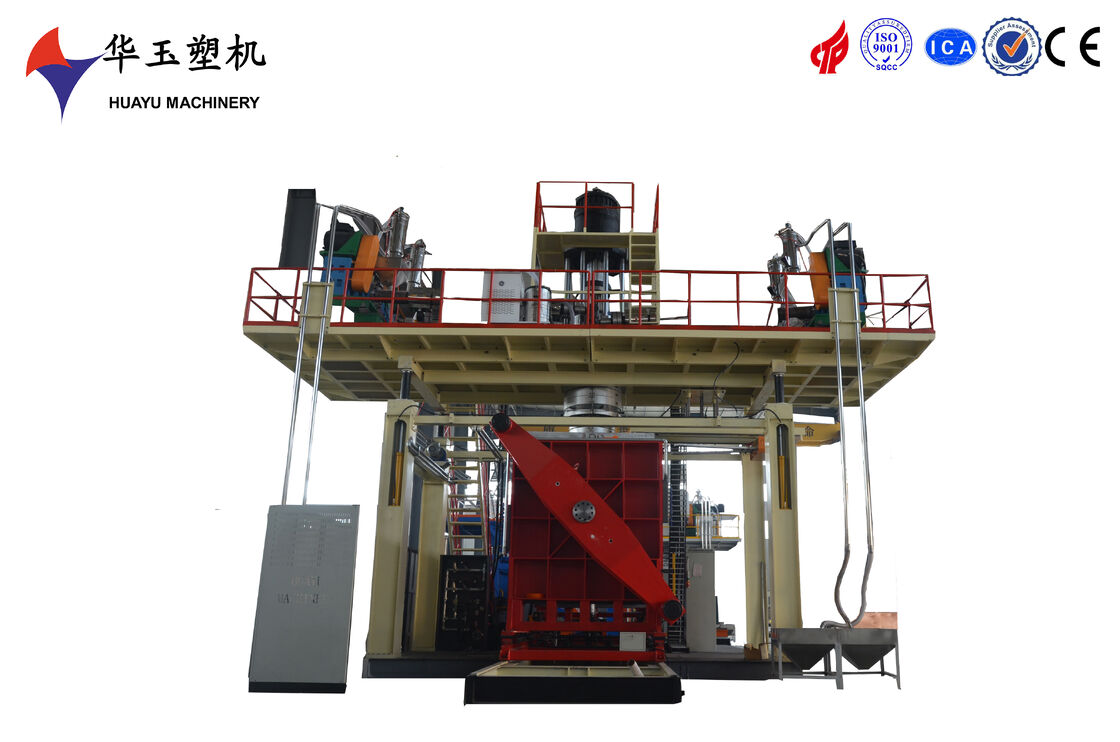

The 1000L four-layer blow molding machine represents advanced container manufacturing technology, designed to produce high-performance containers with specialized barrier properties for demanding industrial applications. This sophisticated system utilizes four independent extruders arranged in a specific configuration to feed different materials into a multi-layer die head, creating precisely layered parisons with exceptional quality.
| Specification | Value | Details |
|---|---|---|
| Applicable Material | HDPE | |
| Capacity Range | 200-1000L, 4 Layers | |
| Voltage | Pending | |
| Total Power | 386 kW | |
| Average Power | 230 kW | |
| Machine Dimension (L*W*H) | 8*9*6.5 | |
| Productivity | 16-25 pcs/h |
| Component | Specification | Features |
|---|---|---|
| Hopper Material | Stainless Steel | Stable performance, easy maintenance |
| Feeding Type | Vacuum Feeding | |
| Feeding Motor | 5.5 kW |
| Component | Specification | Features |
|---|---|---|
| Screw Diameter | 90/90/90/90 mm | Nitrided 38CrMoAIA |
| Screw L/D Ratio | 28:1 | Special designed screw ensures uniform and efficient material plasticizing |
| Extruder Motor | 45/45/45/45 kW | |
| Reducer | 250/250/250/250 | Best quality brand in China, long life and low noise |
| Screw Heating Power | 4.4 kW * 16 | |
| Plasticizing Capacity | 400 kg/h |
| Component | Specification | Features |
|---|---|---|
| Accumulator Capacity | 35 kg | Designed by ourselves and patented |
| Die Diameter | According to products | |
| Die Head Heating Power | 90 kW |
The quad-layer die head with 1000-liter capacity features spiral flow channels that eliminate weld marks and ensure uniform material distribution. The advanced control system integrates Siemens PLC with touchscreen interfaces (such as Proface), allowing operators to independently monitor and adjust each layer's parameters including temperature, extrusion speed, and thickness distribution.
