1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production

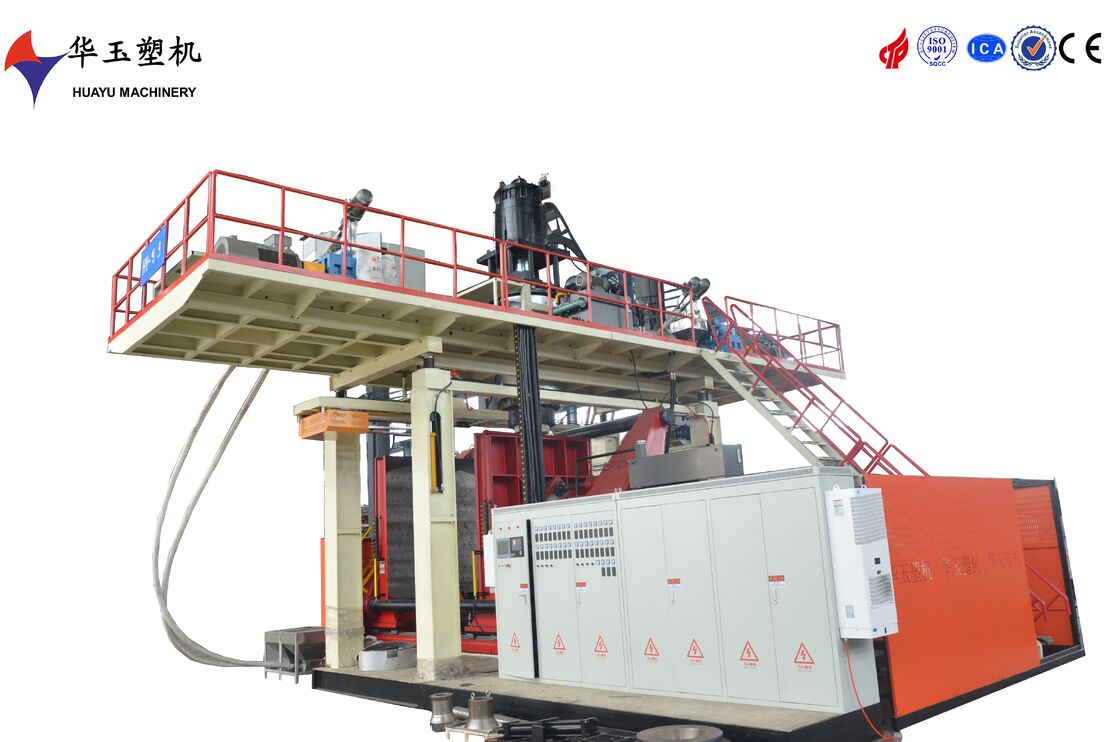

1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production

1000L Capacity Blow Molding Machine

Six-Layer Extrusion IBC Blow Moulding Machine

800KN Clamping Force Six-Layer Blow Molding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM1006

Chat Now
Request A Quote
1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production
1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production
Product Details
Plasticizing Capacity:
480kg/h
Platen:
1600*1600MM
Product Material:
HDPE
Output:
16--25pcs/h
Screw Diameter:
90mm
Feeding Type:
Spring Loaded
Hopper Material:
Stainless Steel
Air Seat Stroke:
400mm
Average Aonsumption:
330KW
Clampingforce:
800KN
Powersupply:
380V, 50Hz, 3-phase
Die Head Heating:
100KW
Highlight:

1000L Capacity Blow Molding Machine

,

Six-Layer Extrusion IBC Blow Moulding Machine

,

800KN Clamping Force Six-Layer Blow Molding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiate
Packaging Details
container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
5 sets per month
RELATED PRODUCTS
CONTACT US
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description
1000L Six-Layer Blow Molding Machine
1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production 0
The 1000L six-layer blow molding machine represents cutting-edge technology specifically engineered for producing ultra-high-barrier containers that meet the most stringent international standards. These sophisticated systems utilize six independent extruders arranged in a precise configuration to feed different material types into a multi-layer die head, creating perfectly layered parisons with exceptional precision.
Advanced Extrusion Technology
Each extruder features specialized screw designs optimized for specific materials, with length-to-diameter ratios of 28:1 to ensure homogeneous melting and stable extrusion. The machines can produce 1000L containers with a total power requirement of approximately 530 kW and sophisticated temperature control systems.
Precision Die Head Design
The key technological component is the hexa-layer die head with sophisticated flow channels that maintain perfect layer separation until parison formation. The control system integrates advanced PLCs with touchscreen interfaces, allowing operators to monitor and adjust each layer's parameters independently with precision exceeding standard multi-layer systems.
Technical Specifications
Specification Value Details
Applicable Material HDPE China*HUAYU
Capacity Range 200-1000L 6 layers
Total Power 530kW
Average Power 330kW
Machine Dimension (L*W*H) 8*9*6.5
Productivity 16-25pcs/h
Auto Feeder System
Component Specification Features
Hopper Material Stainless Steel Stable performance, easy maintenance
Feeding Type Vacuum Loaded
Feeding Motor 11kW
Extrusion System
Component Specification Features
Screw Diameter 90/90/90/90/90/90mm Nitrided 38CrMoAIA
Screw L/D Ratio 28:1 Special designed screw ensures uniform material plasticizing and efficiency
Extruder Motor 45/45/45/45/45/45kW
Reducer 250/250/250/250/250/250 Best quality brand in China, long life and low noise
Screw Heating Power 4.4kW*24
Plasticizing Capacity 480kg/h
Die Head Specifications
Component Specification Features
Accumulator Capacity 50kg Designed by ourselves and patented
Die Diameter According to products
Die Head Heating Power 100kW
Clamping System
Component Specification Features
Platen Size 1600*1600*60mm (W*H*T) Smooth running, no noise; substantial clamping force
Clamping Cylinder 280+120*2
Clamping Cylinder Stroke 1500mm
Clamping Force 800KN
Distance Between Platens 900-2400mm
Maximum Mould Size 1400*1500mm (W*H)
Blowing and Cooling System
Component Specification Features
Stretching Stroke According to products
Blow Pin Up/Down Stroke 600mm
Air Seat Stroke 400mm
Maximum Air Pressure 0.8Mpa
Air Consumption 1.5m³/min
Cooling Method Circulating Water
Water Pressure 0.3MPa
Product Gallery
1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production 1 1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production 2 1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production 3 1000L Six-Layer Blow Molding Machine with 800KN Clamping Force for IBC Tank Production 4
