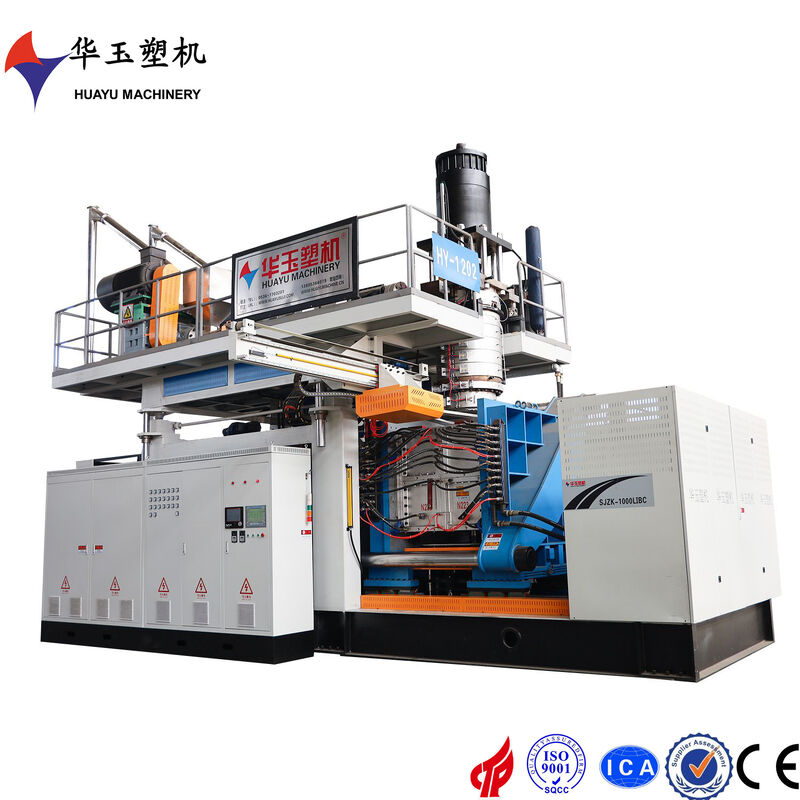

HY200L-1000L 5LAYERS BLOW MOULDING MACHINE For Large-Scale Production

HY200L-1000L 5LAYERS BLOW MOULDING MACHINE For Large-Scale Production

5layers blow moulding machine for large-scale production

IBC blow moulding machine with warranty

HY200L-1000L blow moulding machine

Place of Origin:

China

Brand Name:

Huayu

Certification:

CE，ISO9001

Model Number:

HYBM-1005

Chat Now
Request A Quote
HY200L-1000L 5LAYERS BLOW MOULDING MACHINE For Large-Scale Production
Product Details
Recyclability:
Recyclable
Cycletime:
30-60 Seconds
Parison:
MOOG 200point
Productivity:
16-25pcs/h
Output:
400KG/H
Cooling Mode:
Water Cooled, Air Cooled
Product Material:
HDPE
Machineweight:
2000-5000 Kg
Applicable Material:
HDPE
Screw Material:
38 CrMoAIA, Nitriding
Range:
1000L IBC TANK
Cleaning Method:
Easy Cleaning
Accumulator Capacity:
35KG
Extruder Driving Power:
132kw
Heatingsystem:
Electric Heating
Highlight:

5layers blow moulding machine for large-scale production

,

IBC blow moulding machine with warranty

,

HY200L-1000L blow moulding machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by container
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description

Capacity range: 200-1000L

Machine dimension : 9.5*5.4*5.6M

Average consumption: 200kw

Total power: 405kw

Accumulator capacity: 35KG

Extruder motor: 37*5kw

Screw diameter: 80*5MM

Screw L/D ratio: 28:1

Plasticizing capacity: 380KG/H

Platen size: 1500*1700*70MM

Platen distance: 850*2600MM

Clamping force: 800KN

Servo motor: 30kw
