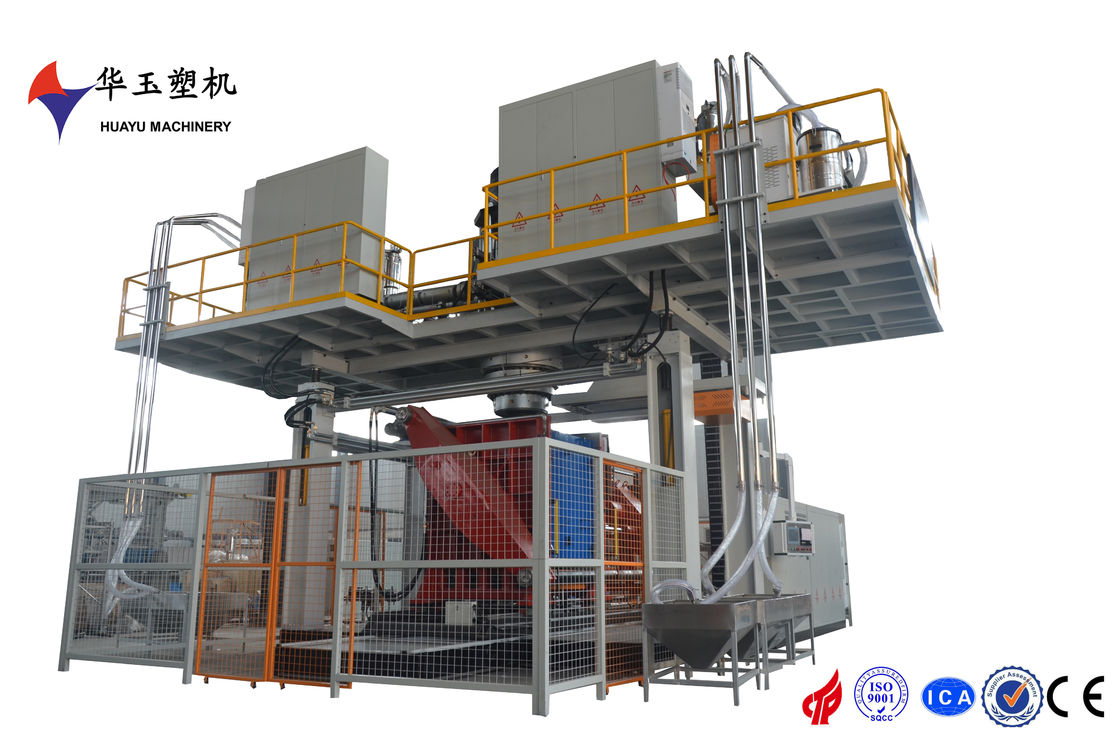

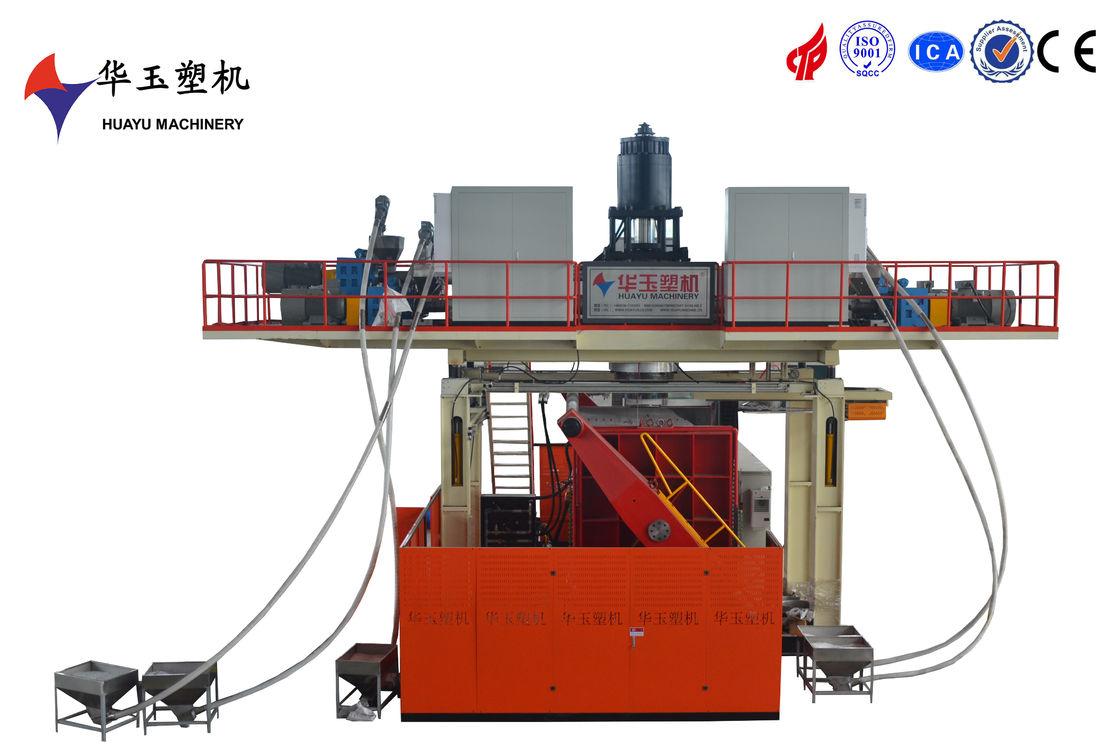

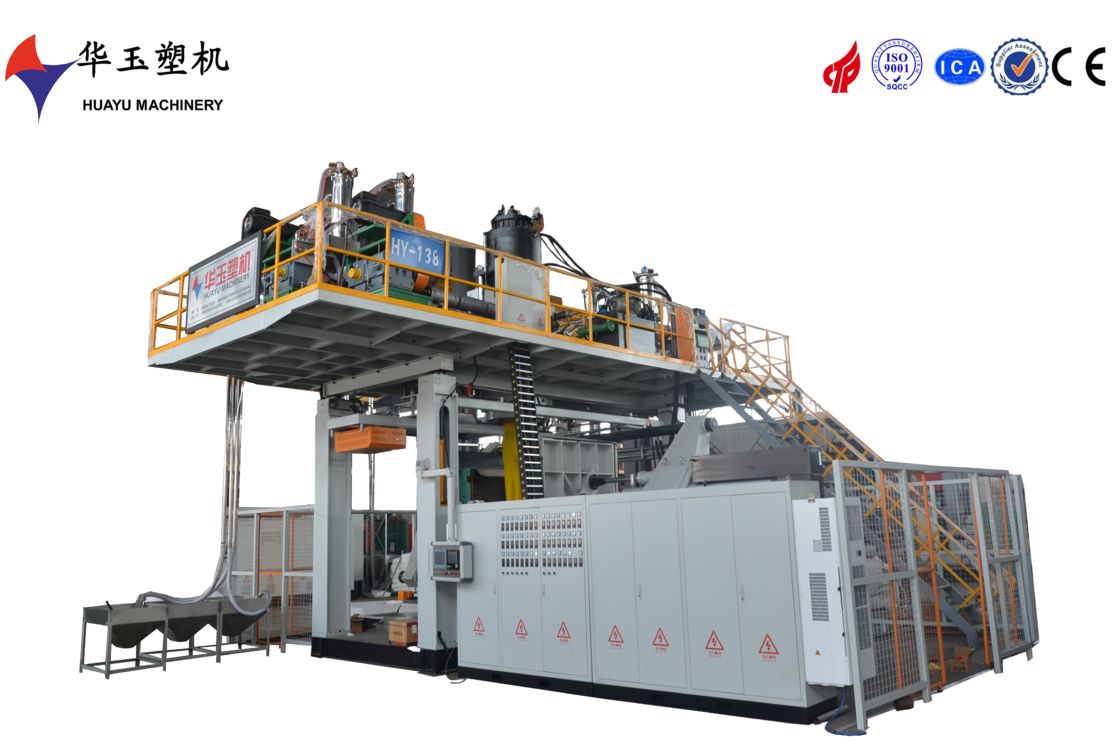

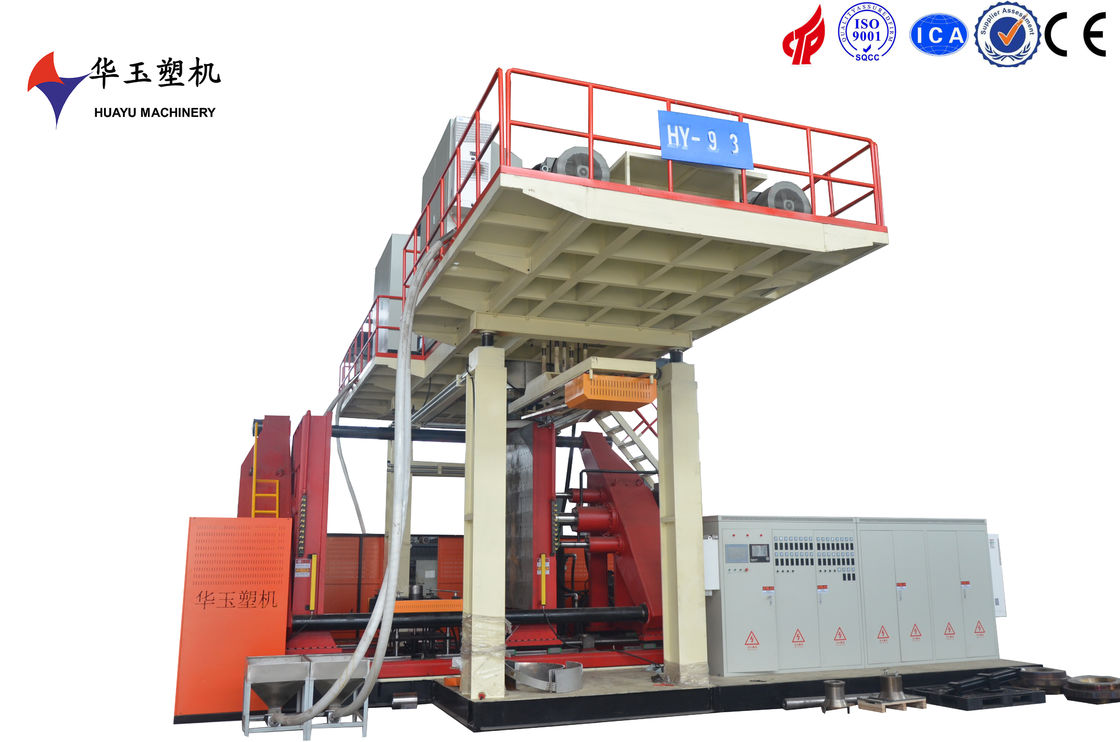

Huayu 5000L Three-Layer Blow Molding Machine with 3500 kN Clamping Force for High Output and Stable Configuration

Huayu 5000L Three-Layer Blow Molding Machine with 3500 kN Clamping Force for High Output and Stable Configuration

3500 kN Clamping Force Blow Molding Machine

High Output Three-Layer Blow Molding Machine

Stable Configuration IBC Blow Moulding Machine

Place of Origin:

Weifang

Brand Name:

Huayu

Certification:

CE,ISO9001

Model Number:

HYBM-5003

Chat Now
Request A Quote
Huayu 5000L Three-Layer Blow Molding Machine with 3500 kN Clamping Force for High Output and Stable Configuration Huayu 5000L Three-Layer Blow Molding Machine with 3500 kN Clamping Force for High Output and Stable Configuration Huayu 5000L Three-Layer Blow Molding Machine with 3500 kN Clamping Force for High Output and Stable Configuration Huayu 5000L Three-Layer Blow Molding Machine with 3500 kN Clamping Force for High Output and Stable Configuration Huayu 5000L Three-Layer Blow Molding Machine with 3500 kN Clamping Force for High Output and Stable Configuration
Product Details
Total Power:
690kw
Feeding Type:
Vacuum Loaded
Power Supply:
380V/50Hz
Screw Barrel Material:
38 CrMoAIA, Nitriding
Controller:
PLC+Touch Screen
Application:
5000L
Screw Diameter:
150mm
Materialcompatibility:
HDPE
Hopper Material:
Stainless Steel
Feeding Type:
Vacuum Loaded
Thickness Controller:
MOOG
Feeding Motor:
11kw
Output:
4--18PCS/h
Color:
Customied
Highlight:

3500 kN Clamping Force Blow Molding Machine

,

High Output Three-Layer Blow Molding Machine

,

Stable Configuration IBC Blow Moulding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
by sea
Delivery Time
5 months
Payment Terms
L/C,T/T
Supply Ability
4 sets per month
RELATED PRODUCTS
Contact Us
86-152-6568-7399
padraic@huayumachine.cn
86-0536-770-9997
Chat Now
Product Description
Triple Composite, Unbreakable! Huayu 5000L Three-Layer Blow Molding Machine
Crafting high-performance storage and transportation solutions with multi-layer co-extrusion technology for robust, durable medium-to-large containers.
Single-layer materials can no longer meet the stringent requirements of the high-end market for container performance. The Huayu 5000L three-layer blow molding machine utilizes advanced multi-layer co-extrusion technology to achieve optimal material combinations, producing high-performance containers with superior durability.
Technical Highlights
  • Multi-Layer Co-extrusion Technology: Produces composite structures with up to 12 layers (1-12 layer capability). The three-layer structure allows different materials (HDPE or HMWHDPE) for inner, middle, and outer layers - recycled material in middle layer reduces costs while virgin material in inner/outer layers ensures cleanliness and weatherability.
  • Powerful Performance & High Output: 3500 kN clamping force ensures stable molding of large containers. Extrusion rate up to 750 kg/h with parison weight of 170 kg enables highly efficient production.
  • Stable and Reliable Configuration: German Siemens PLC core control system ensures smooth operation and precise process control. Rigid, durable machine design meets demands of long-term continuous production.
Application Areas
Widely used for producing 3000L to 5000L chemical liquid storage tanks, multi-layer water tanks, and large industrial containers requiring special barrier or structural properties.
Basic Specifications
Applicable Material HDPE China·HUAYU
Capacity Range 1000-5000L, 3 layers
Voltage Pending
Total Power 690kw
Average Power 420kw
Machine Dimension (L*W*H) 10*8*8.8
Productivity 4-18pcs/h
Auto Feeder
Hopper Material Stainless steel Stable performance, easy maintenance
Feeding Type Spring loaded/vacuum loaded
Feeding Motor 2.2/2.2/2.2kw
Extrusion System
Screw Diameter 130/150/130mm Nitrided 38CrMoAIA
Screw L/D Ratio 28:1 Special designed screw ensures uniform and efficient material plasticizing
Extruder Motor 110/132/110kw
Reducer 375/420/375 Best quality brand in China, long life and low noise
Screw Heating Power 5.5kw*16
Plasticizing Capacity 1000kg/h
Die Head
Accumulator Capacity 150kg Designed by ourselves and patented
Die Diameter According to products
Die Head Heating Power 160kw
Clamping System
Platen Size 2400*2500*70mm(W*H*T) Smooth running, no noise; large clamping force
Clamping Cylinder 350+200*2
Clamping Cylinder Stroke 2200mm
Clamping Force 3000KN
Distance Between Platens 1600-4000mm
Max. Mould Size 1800*2500mm(W*H)
Huayu 5000L Three-Layer Blow Molding Machine with 3500 kN Clamping Force for High Output and Stable Configuration 0
The Huayu 5000L three-layer blow molding machine is your intelligent choice for upgrading product grade and optimizing production costs. With multi-layer technology at its core, it helps you stand out in the fierce market competition.
